Braking Systems - Electric
Breakaway Battery
Provides power to actuate
trailer brakes in the event of
trailer breakaway.
Dexter Electric Brakes
Wired in parallel.

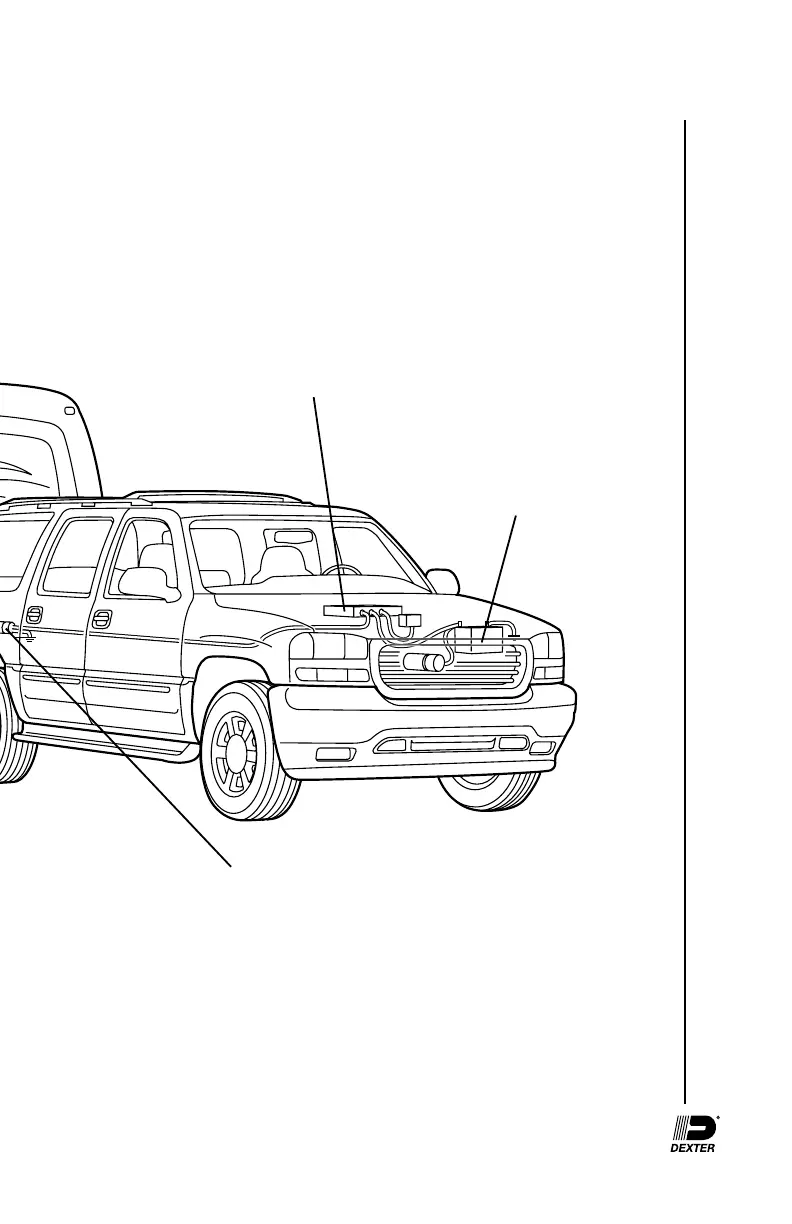

Controller
Electric brake controller
provides power to the
magnets to actuate the
trailer brakes.
Battery
Connect controller directly.
Connector
Used to connect and disconnect
trailer and tow vehicle.
(Always ground trailer brakes
throu
g
h connector).
Breakaway Switch
Switches battery power
to brakes if
breakaway occurs.
