Moretti Design ARIA - Emergency Control Panel; User Menu 1

14

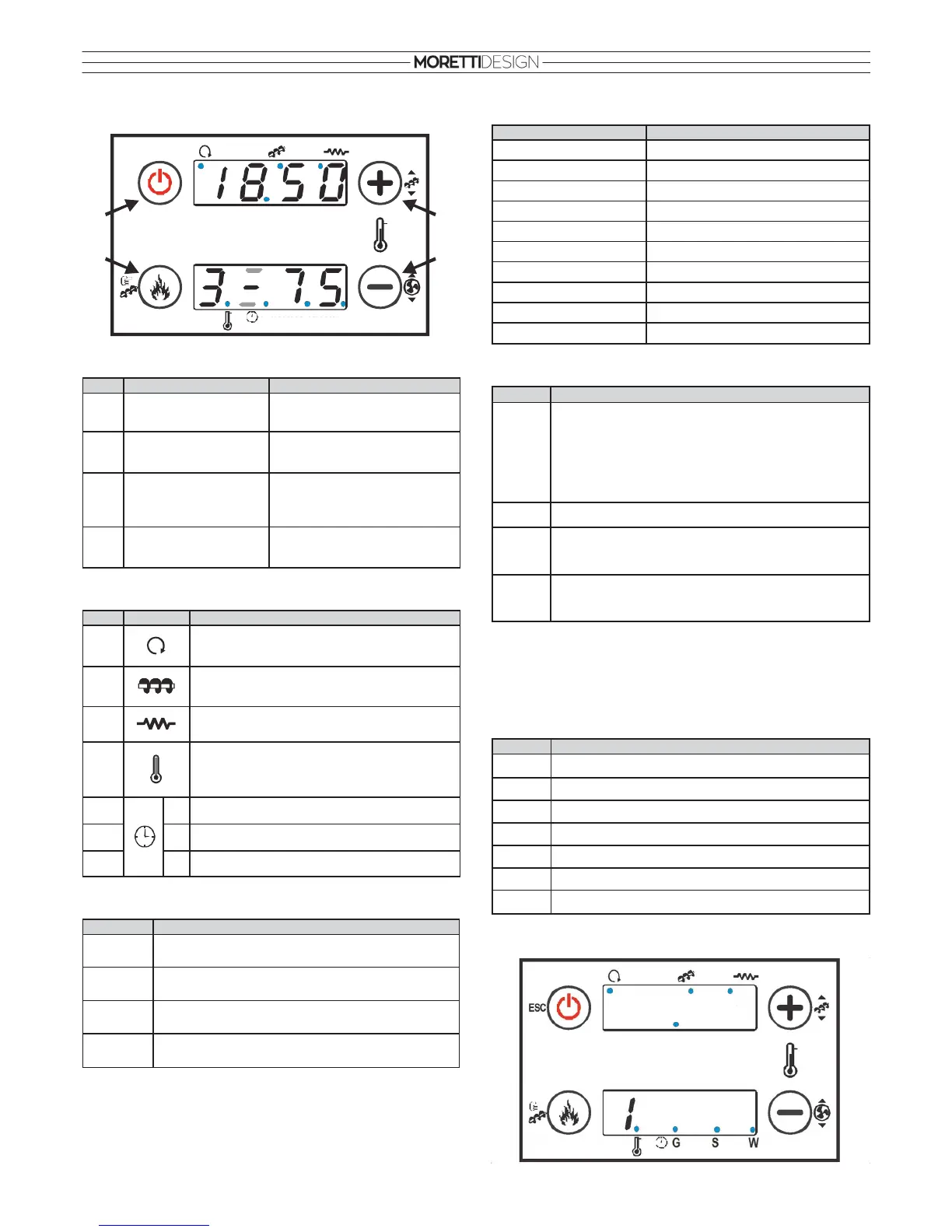

EMERGENCY CONTROL PANEL
Button description
Symbol description
Values displayed on the main screen
ESC
G S W
L1
L5
L4
D2 D4D3
D1
P2P1
P4P3
L6 L7
L2 L3
Operating status shown
Other messages
USER MENU 1
Monitor
Press with a simple click the P1 button: the first value tA will appear on
the Display. In order to read the other values keep pressing with a simple
click the P1 button.
Combustion Power Setting
Click Press and hold
P1
Monitor / Exit Menu
Switch On / Switch Off / Reset
Block
P2
Modify Thermostat (+) /
Increase value
Pellet Load Setting
P3
Modify Combustion
Power / Save data
Manual Pellet Load
P4
Modify Thermostat (-) /
Decrease value
Exhaust Fan Setting
Led Symbol Description
L1
Led On: Heating Fan On
L2
Led On: Auger On
L3
Led On: Ignition Resistance On
L4
Led On: Thermostat Temperature Reached
L5 G
Led On: Daily Programmed
L6 S
Led On: Weekly Programmed
L7 W
Led On: Week-End Programmed
Display Description
D1
Time, Operating Status, Error, Menu, Submenu, Values.
D2
Power, Code.
D3
Recipe.
D4
Main temperature, Code.
CHEc
Check up
On 1, On 2, On 3, On 4
Ignition
On 5
Stabilization
Mod
Modulation
StbY
Standby
Status Description
Normal
SAF/Erxx
Safety
OFF
Turn off
rEc
Ignition recover
Alt/Erxx
Block
Code Description
Sond
Sensor anomaly. This message appears during the Check-
up phase and indicates that the temperature read is equal
to the minimum value (0°C) or the maximum value. Check
if the sensors are detached (0°C), or have short-circuited.
Hi
Room temperature above 50 °C.
SErU
Message that indicates the achievement of the scheduled
functioning hours. Call an authorized technician
PULi
Message that indicates the achievement of the scheduled
functioning hours. The stove needs to be serviced.
Code Description
tA
Main temperature detected.
tF
Exhaust fume temperature
UF
Exhaust fan speed (RPM/Volt)
FL
Primary air flow
FC Firmware Code: FYSD02000064.00.00
464 Manufacturer product code: 0Y.0X
Au Auger on time (s)
