7
The antenna remains inside the stoves coating. Make sure that the white
tip of the antenna does not remain in contact with any metal parts of the
stove, but it remains in contact with the glass or majolica coating.
Perform a signal quality test by using the Radio Test function (page. 13)
before switching the stove on.

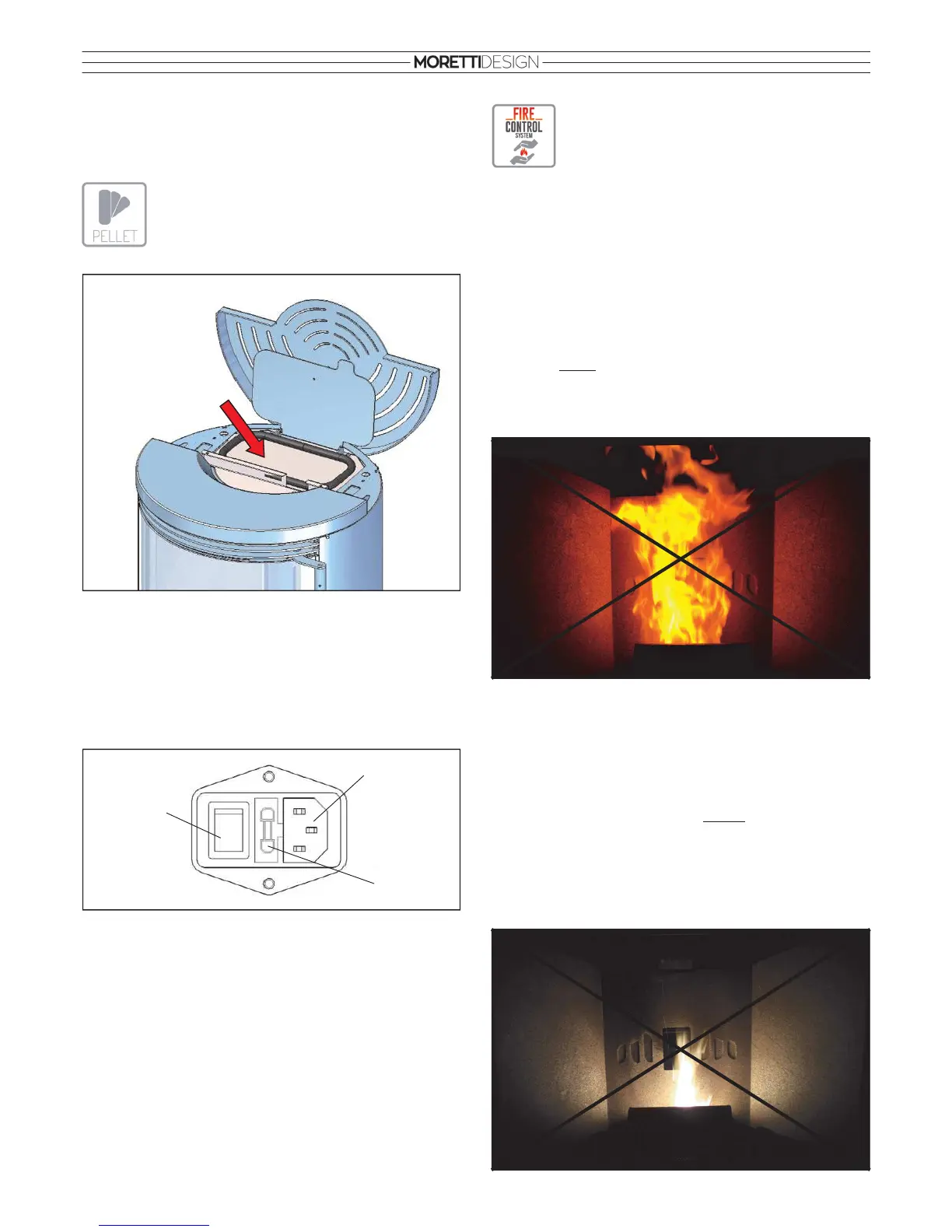

Pellet loading
Fill the fuel tank with wooden pellets. Open the lid and
then pour the fuel in. It is recommended to close the pellet
tank lid properly.
Use only wooden pellets with a 6 mm diameter and 30mm maximum
length, EN PLUS certified class A1.
Warning: Before filling the tank, make sure that at the bottom there are
no odd materials.
Ignition mode
Make sure that the stove is connected to the electrical power and that
the switch on the back is on position “I”
Fill the auger by using the LOAD function (see page 12). During the
ignition or even in run mode, the front door must always be kept closed.
Before turning on the stove, empty out the burner once the initial load
function has been carried out.
See DISPLAY RADIO (page 10) on how to turn on the appliance,
adjust the room temperature and combustion power level and for
more information regarding the various menus.
COMBUSTION
The combustion is a chemical reaction in which a fuel (pellets) and an
oxidiser (air) are combined, thanks to an ignition (resistance), in order to
produce heat. They should be dosed in suitable proportions so that the
combustion can take place. Following are some examples with a
description and adjustment procedure to obtain an optimal combustion.
O
I
FUSE
SWITCH
CONNECTOR
FCS (Fire Control System)
It is an automatic combustion control system that
maintains the products high efficiency. The system
automatically adjusts the fuel (pellets) and combustion air
dosage according to the draw read from the flowmeter
sensor located inside the stove.
Even with the FCS system activated, it is recommended to check the
quality of the flame by comparing it with the images of the following
examples.
In the case of a NON OPTIMAL combustion, despite the FCS system is
active, contact an authorized technician.
Calibration
Note: On models where the FCS (or MCS) is installed on, it is possible
to adjust the automatic combustion correction range in MCS Calibration.
On models without the FCS it is possible to manually regulate the
combustion through the Auger Calibration and Fan Calibration
functions.
Example 1
NON OPTIMAL combustion, the flame is high and weak and is of an
intense orange colour also a large amount of unburned pellets are left
over inside the burner.
• Regulation on models with FCS: First of all check the closure
of the front door and tightness of the gaskets. Increase the MCS
Calibration setting one point at a time (from 0 to +5) until the
example 3 condition is achieved.
• Manual regulation on models without FCS: First of all check
the closure of the front door and tightness of the gaskets. Then
increase the Fan Calibration setting one point at a time (from 0
to +5). If it is not enough, reduce the Auger Calibration setting
one point at a time (from 0 to -5) until the example 3 condition is
achieved.
Example 2
NO
NO
