mori seiki MSX-701IV User Manual

机床操作面板
MACHINE OPERATION PANEL

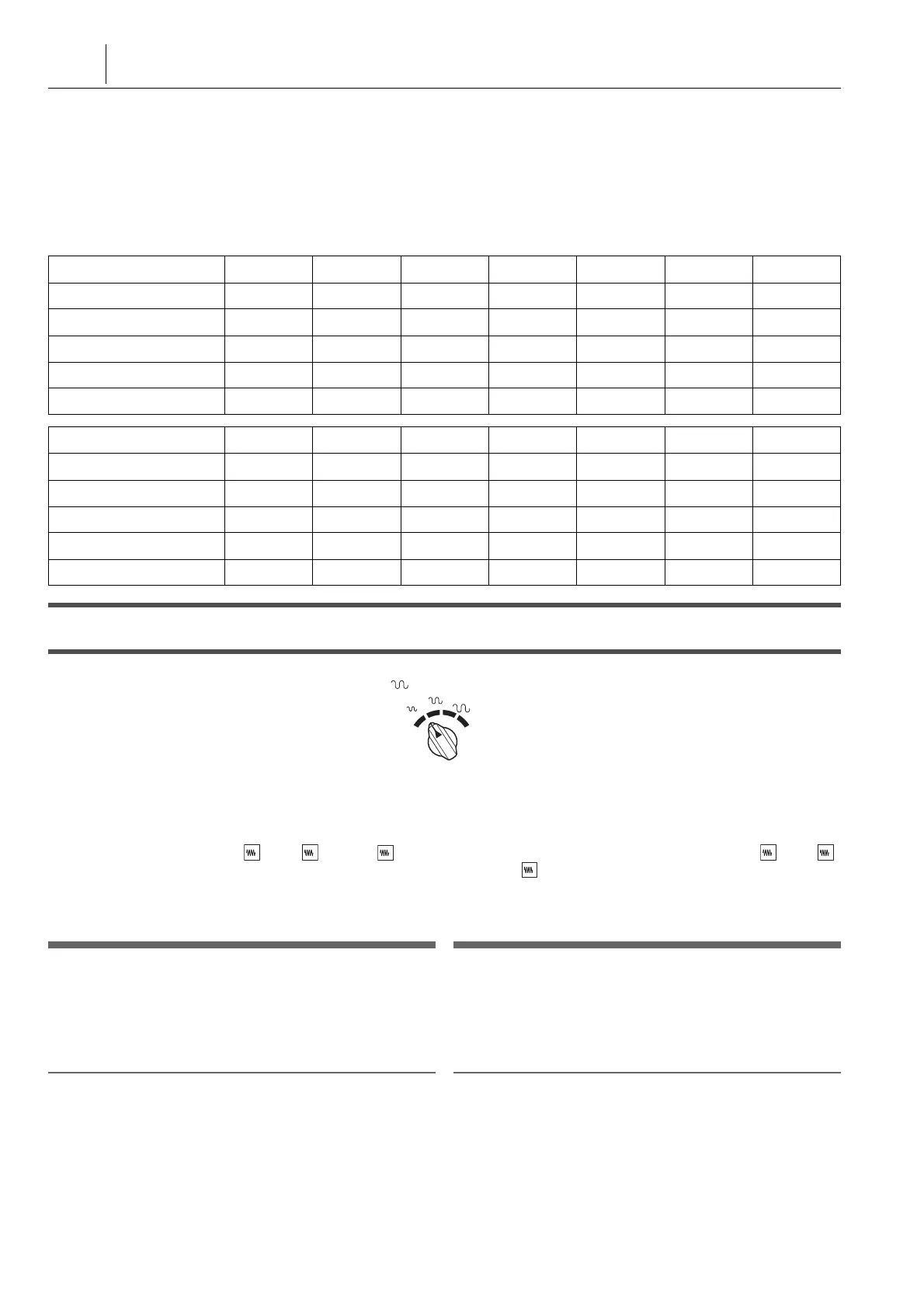

152
当设置为 100% 时，轴以程序中的进给速度移动。 An axis will be moved at the programmed feedrate when the
setting is 100%.
< 在手动模式下 > <In the manual mode>
如果选定模式选择按钮
h
[ 微动 ] ，轴的进给速度可以在 0 到
5000 mm/min （ 21 级）范围内设置。
The axis feedrate can be set in the range of 0 to 5000 mm/min
(21 steps) if the mode selection button
h
[JOG] (Jog) is
selected.
下面显示了 [ 进给倍率 ] 开关设置与实际的进给速度之间的关
系。
The relationship between the [OVERRIDE] (Feedrate
Override) switch setting and actual feedrate is indicated below.
2-11 [RAPID OVERRIDE] ( 快进倍率 ) 开关
[RAPID OVERRIDE] (Rapid Traverse Rate Override) Switch
此 [ 快进倍率 ] 开关用于调节快速进给速度。 The [RAPID OVERRIDE] (Rapid Traverse Rate Override)
switch is used to adjust rapid traverse rate.
此开关用于降低快速进给速度，以在试切中刀具移动时确保安
全操作。
The switch is used to lower the rapid traverse rate to ensure
safe operation while moving a tool in test cutting.
快速进给速度的调节分为三级； (1%)、 (10%) 和 (25%)
和将快速进给速度设置为 100%。
The rapid traverse rate is adjusted in three steps; (1%),
(10%) and (25%) by taking the set rapid traverse rate as
100%.
7 小心 7 CAUTION
若要暂停轴进给，按下自动运行按钮
w
[ 暂停 ]。 如果用进给倍
率开关暂停主轴进给，由于没有给出指示，操作员将无法识别
机床是如何停止的，因此要避免这样的操作。
To suspend axis feed, press the automatic operation
button
w
[STOP] (Stop). If axis feed is suspended using
the federate override switch, an operator cannot recognize
how the machine was stopped since no indication is given
and, therefore, such operation should be avoided.
2 注意 2 NOTE
1. 操作选择钥匙开关置于
u
[ 不可操作 ] 时，不能进行按钮操作。 1. Button operation is impossible with the operation selection
key-switch placed in the
u
[OFF].
2. 手动操作时，最大允许倍率值为 50%。因此，若开关设置
为“100%”，倍率值仍为 50%。
2. For manual operation, the maximum allowable override value is
50%. Therefore, if the switch is set to “ 100% ”, the override value
is 50%.
3. 快速进给倍率功能在指定进给功能模式下是有效的。 3. The rapid traverse override function is valid in the dry run mode.
设置
0 102030405060
进给速度 (mm/min)
0 5 10 14 20 37 52
设置
70 80 90 100 110 120 130
进给速度 (mm/min)
72 100 140 200 270 370 520
设置
140 150 160 170 180 190 200
进给速度 (mm/min)
720 1000 1400 2000 2700 3700 5000
Setting 0 102030405060
Feedrate (mm/min) 0 5 10 14 20 37 52
Setting 70 80 90 100 110 120 130
Feedrate (mm/min) 72 100 140 200 270 370 520
Setting 140 150 160 170 180 190 200
Feedrate (mm/min) 720 1000 1400 2000 2700 3700 5000
RAPID OVERRIDE
%
100%
0
1
2
3
1
2
3
1
2
3
