3-21

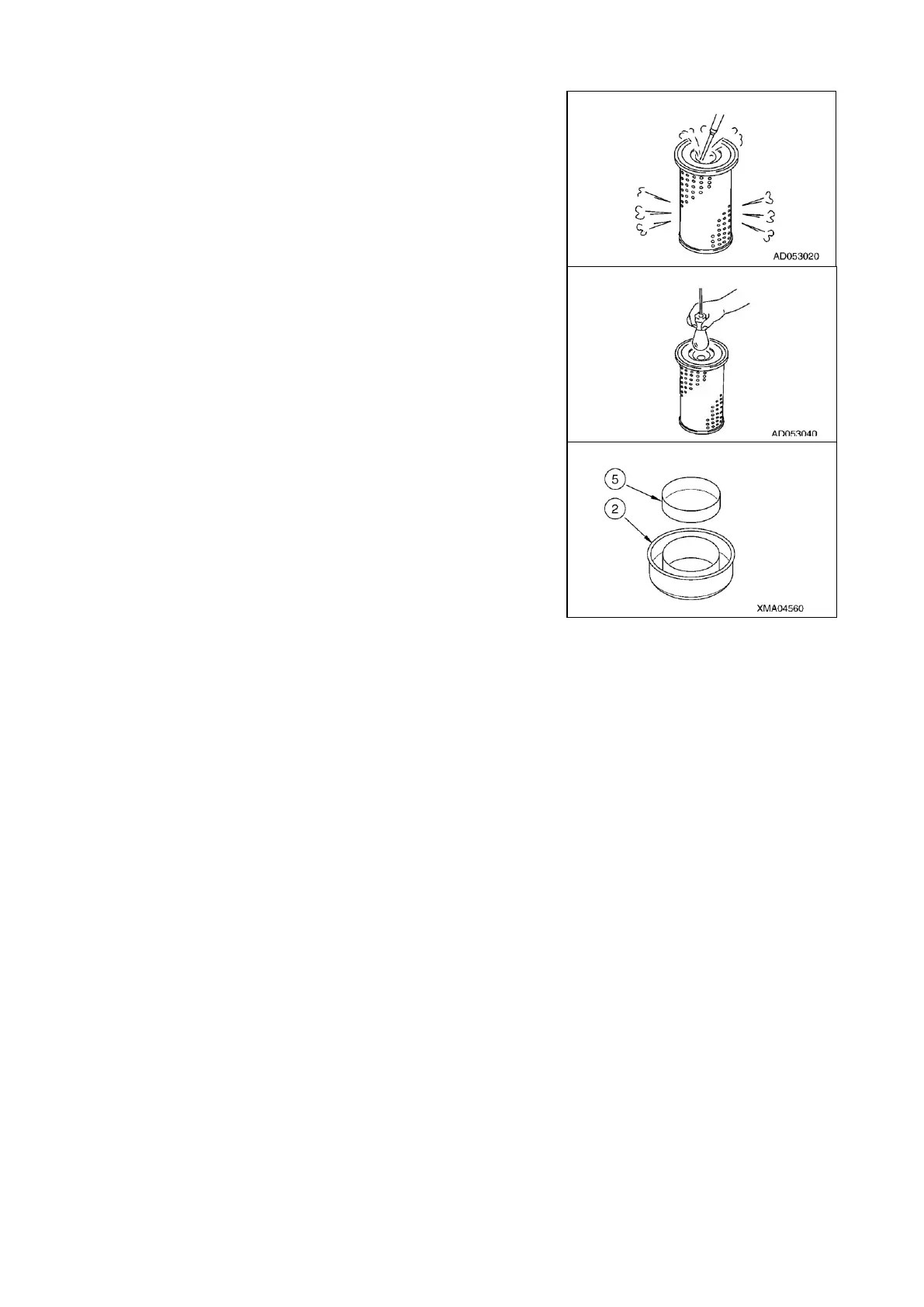

4. Blow with dry compressed air (max. 0.68 MPa [7 kgf/cm
2
]) along the folds
from the inside of element (4).
Next, blow along the folds from the outside of the element, then blow from
the inside of the element again.
5. After cleaning, use a light bulb from inside the element to check if there are
any small holes or thin places in the element. Replace the element if such
places are found.
6. Remove the baffle (5) from the inside of the dust pan (2), then clean the
inside of the dust pan.
7. Set the element (4) in the body, then secure with the wing nut (3).
8. Assemble the buffer (5) to the dust pan (2).
9. Set the dust pan (2) to the body with the TOP mark on the bottom surface
facing up, then secure with the band (1).
• METHOD OF REPLACING ELEMENT
Follow the procedure in “METHOD OF CLEANING ELEMENT” to remove
the element, then install a new element.
