2-24

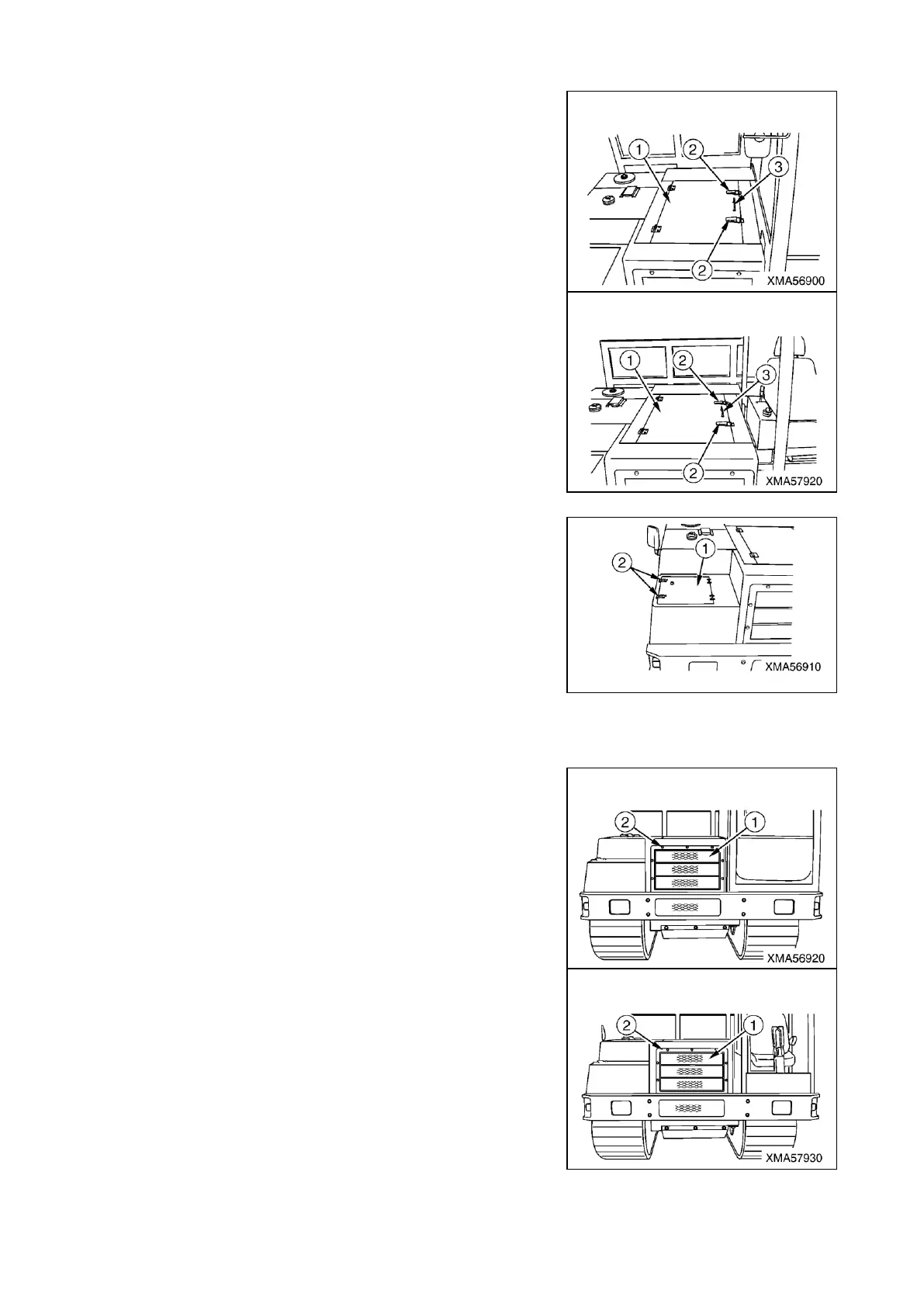

2.14 ENGINE INSPECTION COVER
When carrying out inspection and maintenance of the engine, do as follows to
open the inspection cover.
1. Release 2 catches (2) at the front and rear of inspection cover (1), then pull
handle (3) up.
The cover is held in the open position by the damper.
2. After completion of inspection and maintenance, grip handle (3) of the
inspection cover (1) and return it to the frame, then fit front and rear catches
(2).
2.15 BATTERY INSPECTION COVER
When carrying out inspection and maintenance of the battery, do as follows to
open the inspection cover.
1. Release 2 catches (2) at the front and rear of inspection cover (1), then pull
catches (2) up.
The cover is held in the open position by the damper.
2. After completion of inspection and maintenance, grip front and rear catches
(2) of the inspection cover (1) and return it to the frame, then fit front and rear
catches (2).
2.16 FRONT GRILL
When cleaning the radiator fins, oil cooler fins or inter cooler fins, do as follows
to remove the front grill.
1. Remove 7 mounting bolts (2), then remove front grill (1).
2. After completion of inspection and maintenance, follow the reverse
procedure to removal and install the front grill (1).
Applicable to Cab Specifications
Applicable to Cab Specifications
Applicable to Canopy Specifications
Applicable to Canopy Specifications
