Morooka MST-800VD - General View of Control Panel Box; General View of Monitor Panel

2-5

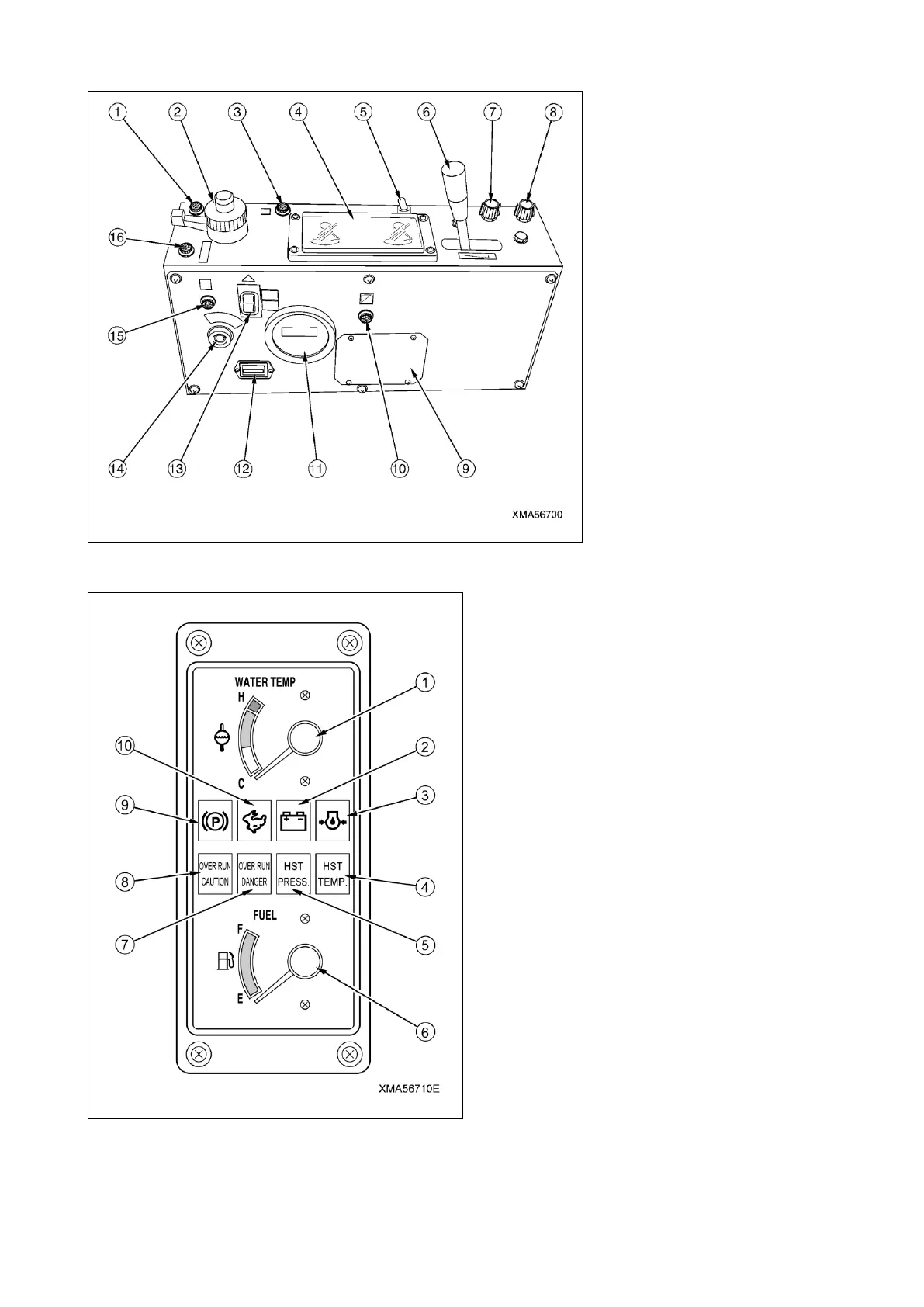

1.3 GENERAL VIEW OF CONTROL PANEL BOX
(1) Turn signal pilot lamp (Right)
(2) Combination switch
(3) Head lamp high beam pilot lamp
(4) Monitor panel
(5) Hi-Lo speed range selector switch
(6) Engine throttle lever
(7) Heater switch
(8) Wiper switch
(9) Fuse box cover
(10) Slope caution lamp
(11) Tachometer
(12) Hourmeter
(13) Parking brake switch
(14) Starter switch
(15) Preheating indicator lamp
(16) Turn signal pilot lamp (Left)
1.4 GENERAL VIEW OF MONITOR PANEL
(1) Engine water temperature gauge
(2) Battery charge lamp
(3) Engine oil pressure caution lamp
(4) HST oil temperature caution lamp
(5) HST oil pressure caution lamp
(6) Fuel gauge
(7) Over-run danger lamp
(8) Over-run caution lamp
(9) Parking brake pilot lamp
(10) High speed travel pilot lamp
