Mosa Magic Weld 200 - Identification Data

3
1. Introduction
1.8 Identication data

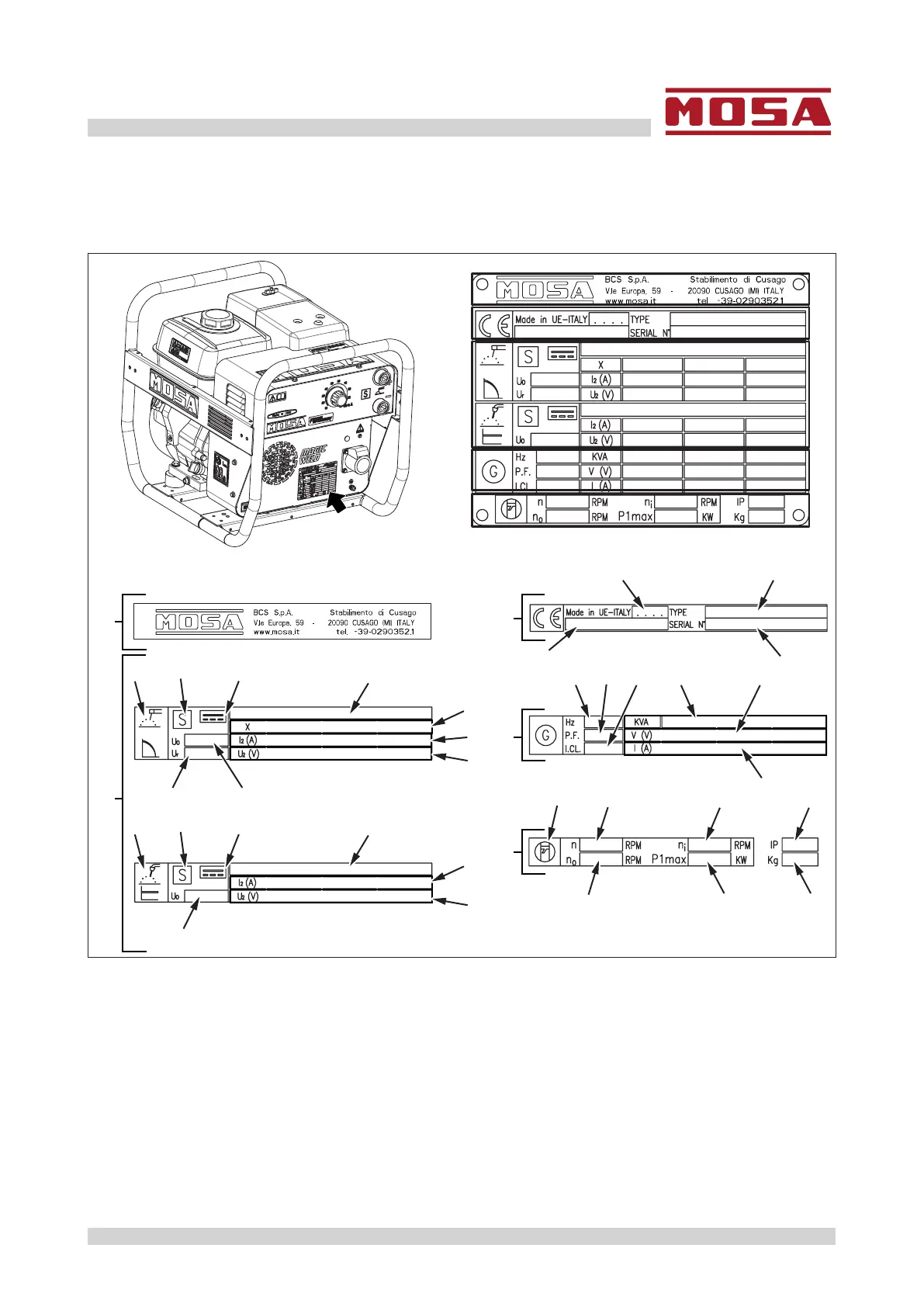

ThedataidentifyingthemachinearegivenontheECplateappliedintheareaindicatedinthegure.
They are necessary for spare parts requests and communications with the Customer Service Department.
B
A
C
D
E
A
D5260810
B
C
D
E
1
1
236
45
4
1
3
4
25
1
2
3
1
2
3
4
4
5
6
6
7
7
8
89
2
3
4
6
A- Manufacturer'sdata
B - Machine data
(1) Year of manufacture
(2) Model
(3) Serial number
(4) Technical standard reference
C - Welding data
(1) Welding process
(2) Symbol for engine driven welders that can be used in environments with a higher risk of electric
shock
(3) Welding current symbol
(4) Minimum and maximum welding current value and corresponding voltage value
