The control unit is supplied by the manufacturer with the ability to select some main
functions directly.
It is not possible to erase just one transmitter.
Attention: The "pedestrian passage" option occupies 1 slot of 120 available in the
control board's memory. In other words, if you program, in the same transmitter,
the CODE and CODE PED, you can still program 118 transmitters.
. PROGRAMMING . PROGRAMMING
MAIN MENU MAIN MENU
MAIN MENU
LED LED OFF LED ON
• CODE
No programmed code Programmed (s) code (s)
• CODE PED.
No programmed code Programmed (s) code (s)
• IN.CMD.AP
CMD Opening Inhibition OFF CMD Opening Inhibition ON
• LAMP/CORT
Flashing light mode Courtesy Light Mode
• PGM. AUT.
Automatic Programming OFF Automatic Programming ON
• T. MOT.
Working Time = 30 sec Prog. time automatically
• T. MOT. PED
Pedestrian Working Time = 10 sec Prog. time automatically
• T. PAUSA
Automatic Closing OFF Automatic Closing ON
This function allows you to program new transmitters to control the automatism.
The control board only accepts Dip-Switch code transmitters or Rolling Code MOTORLINE,
and has a maximum capacity of 120 codes.
When trying to program the 121st code, all the programming LEDs blink a few times
simultaneously signaling that the memory is full.
The control board allows you to program the gate to open just enough for the passage of
people without making a full opening. The CODE PED function allows to program a code
to command only this type of opening.
It is advised to do the programming of T.MOT.PED function to set the distance that the
door should open, otherwise the control board will open a pre-set distance.
The control board is supplied by the manufacturer with this function disabled.

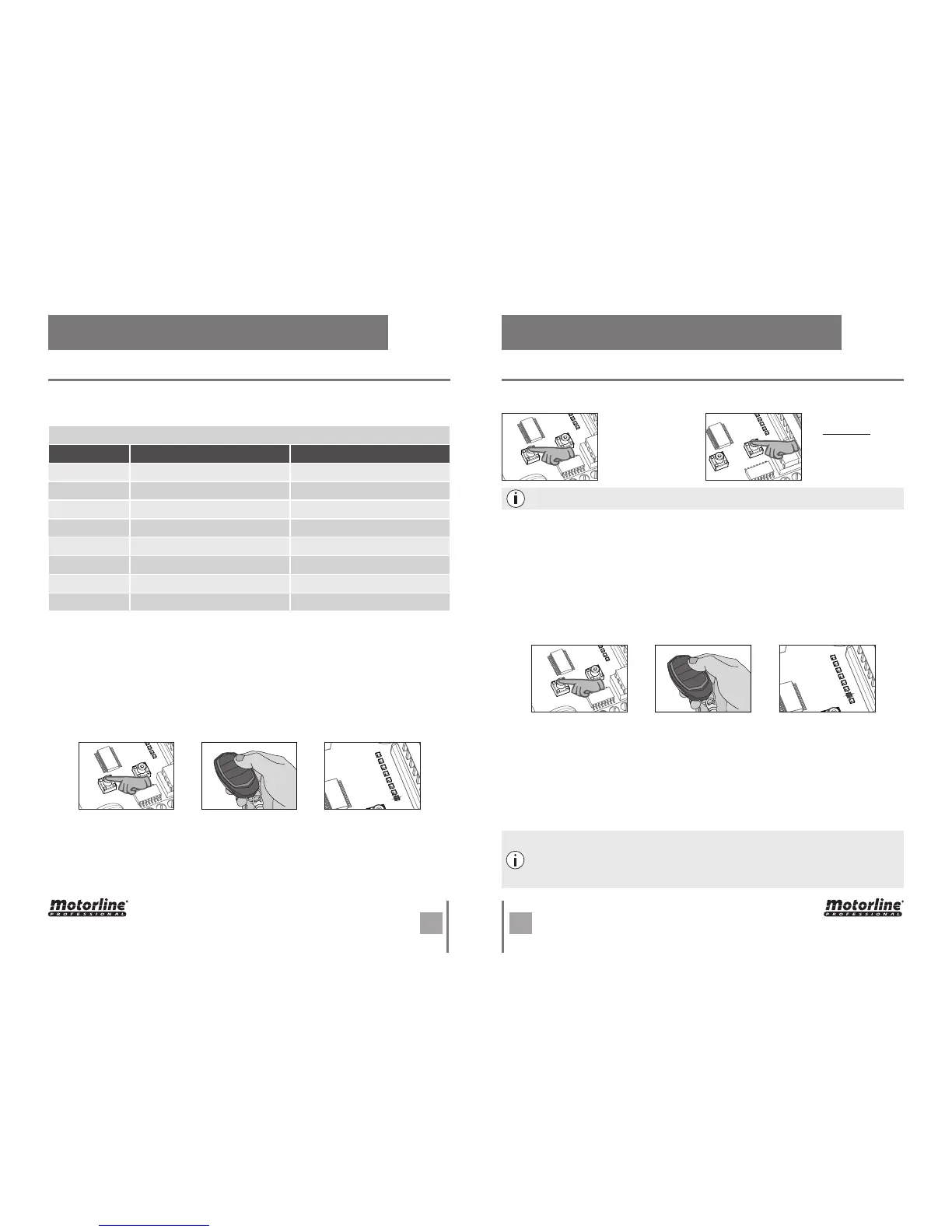

01. Press the SEL key twice until the LED CODE PED begins to flash.
02. Press the SET key for 10 seconds and all the codes from this function are deleted.
Programming new transmitters:
Delete all configured transmitters:
Delete all configured transmitters for pedestrian opening:
Programming transmitters for pedestrian mode:
• CODE | PROGRAMMING TRANSMITTERS
• CODE PED | PEDESTRIAN FUNCTIONING
01 • Press the SEL key
once, and the CODE
LED begins to flash.
01 • Press SEL key
twice, and the CODE
PED LED begins to
flash.
01 • Press the SEL key
once, and the CODE
LED begins to flash.
02 • Press once the
transmitter's key you
want to program, for
1 sec.
02 • Press once the
transmitter's key you
want to program, for
1 sec.
02 • Press the SEL key
for 10 seconds! The
CODE LED turns off
and all transmitters
have been deleted.
03 • The CODE LED
remains permanently
lit, signaling the
program's success.
03 • The CODE PED LED
remains permanently
lit, signaling the
program's success.
You can not delete only one specific transmitter!
