Motorola APX 2000 Basic Service Manual

8-14 Disassembly/Reassembly Procedures: Radio Disassembly
8.4.6.5 Removal of the Keypad Retainer (34)
1. With the Back Kit Flex (43) connectors unplugged from the Main Board (45) as shown in
Figure 8-16., remove the Keypad Retainer Screws (33) with Torx IP6 Bit as shown in Figure
8-19.

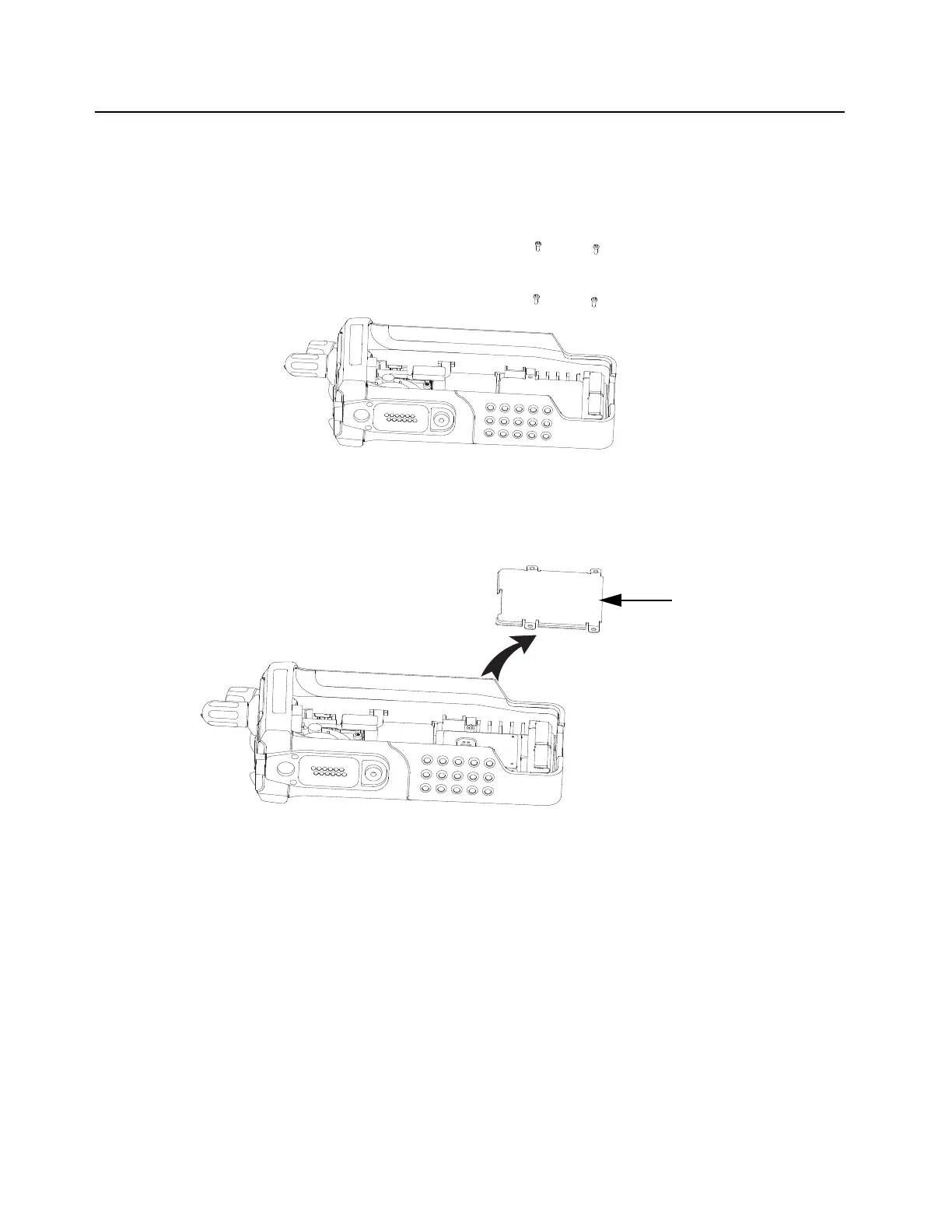

Figure 8-19. Remove the Keypad Retainer Screws
2. Lift out the Keypad Retainer (34) from the Front Housing (19) as shown in Figure 8-20.
Figure 8-20. Remove the Keypad Retainer
1
2
3
4
Keypad Retainer

Motorola APX 2000 Specifications

General

IP Rating	IP67
Operating Temperature	-30°C to +60°C
GPS	Optional
Bluetooth	No
Frequency Range	700/800 MHz
Power Output	1-5 W (VHF), 1-3 W (700/800 MHz)
Channels	Up to 1, 000
Battery Life	Up to 10 hours (digital)
Digital Protocol	APCO P25
Frequency	VHF: 136-174 MHz, UHF: 380-470 MHz, 700/800 MHz: 764-870 MHz
Power	1-3W (700/800 MHz), 1-5W (VHF)
