8-32 Disassembly/Reassembly Procedures: Radio Reassembly
8.6.8 Reassemble the Top Bezel
1. Locate the top bezel and tighten the three screws with a Torx IP8 Bit and a Torque Driver to
8 in-lbf as shown in Figure 8-45.
2. Tighten the Volume Switch nut with 8 in-lbf as shown in Figure 8-46.

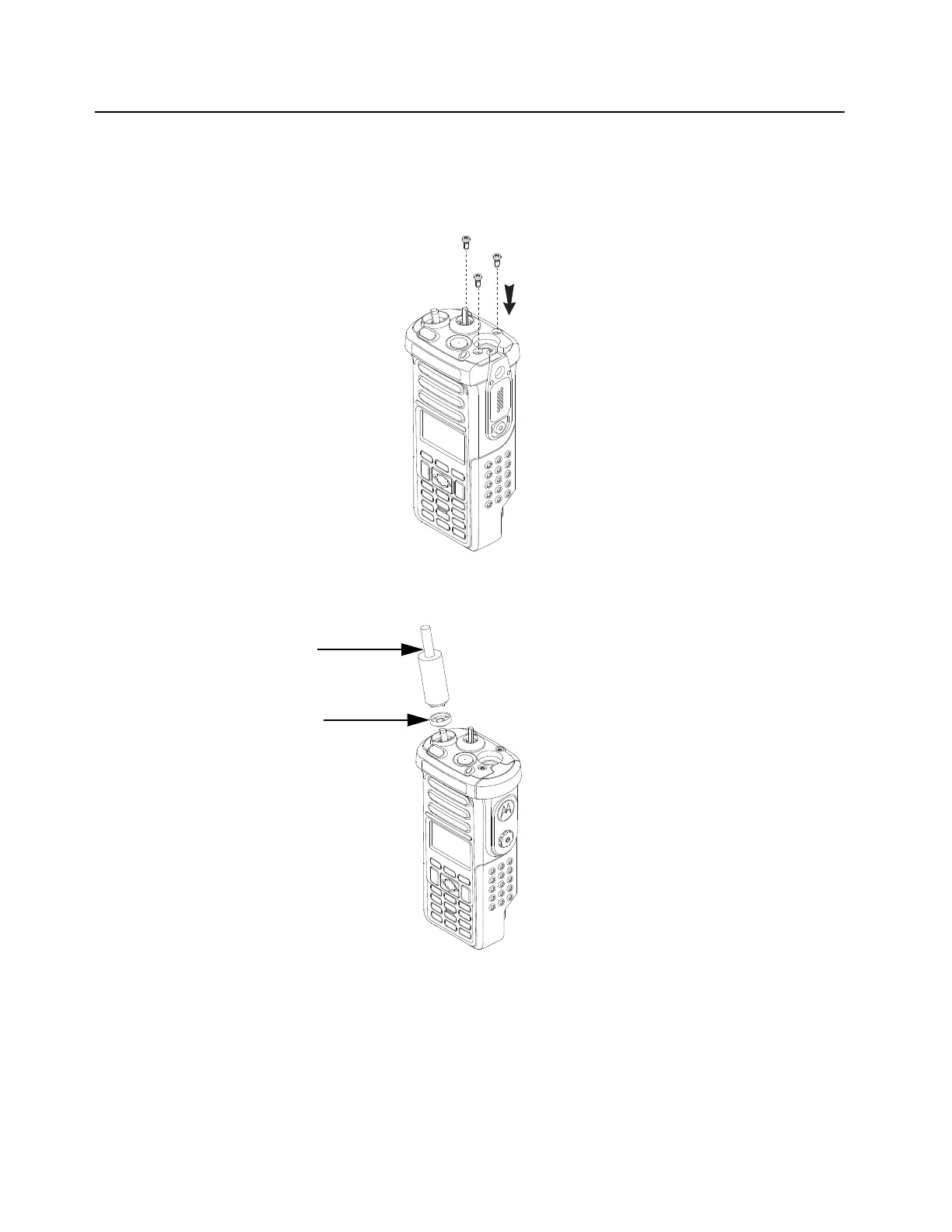

Figure 8-45. Tighten the Screws
Figure 8-46. Tighten the Volume Switch Spanner Nut
1
2
3
Volume Switch
Spanner Nut
opener
Volume Switch
Spanner Nut
