Motorola APX 8000XE 1 - Removing and Attaching the Accessory Connector Cover

Removing and Attaching the
Accessory Connector Cover
The accessory connector is on the antenna side of the
radio. It is used to connect accessories to the radio.
NOTICE:
To prevent damage to the connector, shield it with
the connector cover when not in use.
1 To remove the accessory connector cover, rotate the
thumbscrew counterclockwise until it disengages
from the radio.
NOTICE:
If the thumbscrew is too tight, use an Allen
wrench at to loosen it first.

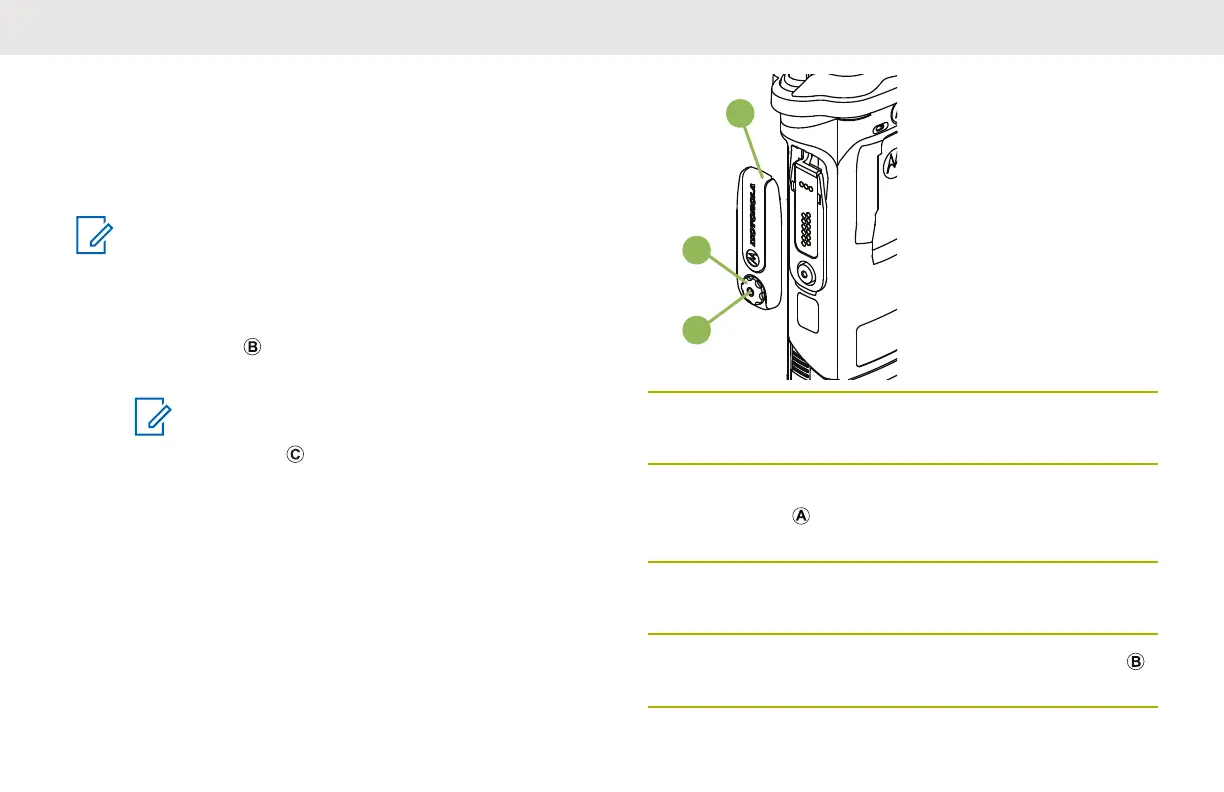

C
B
A
2 Rotate and lift the connector cover to disengage it
from the radio.
3 To attach the accessory connector cover, insert the
hooked end of the cover into the slot above the
connector.
4 Press the top of the cover downward to seat it in the
slot.
5
Once in place, tighten by rotating the thumbscrew
clockwise by hand.
