Identifying Status Indicators
This chapter explains the status indicators used in the
radio.

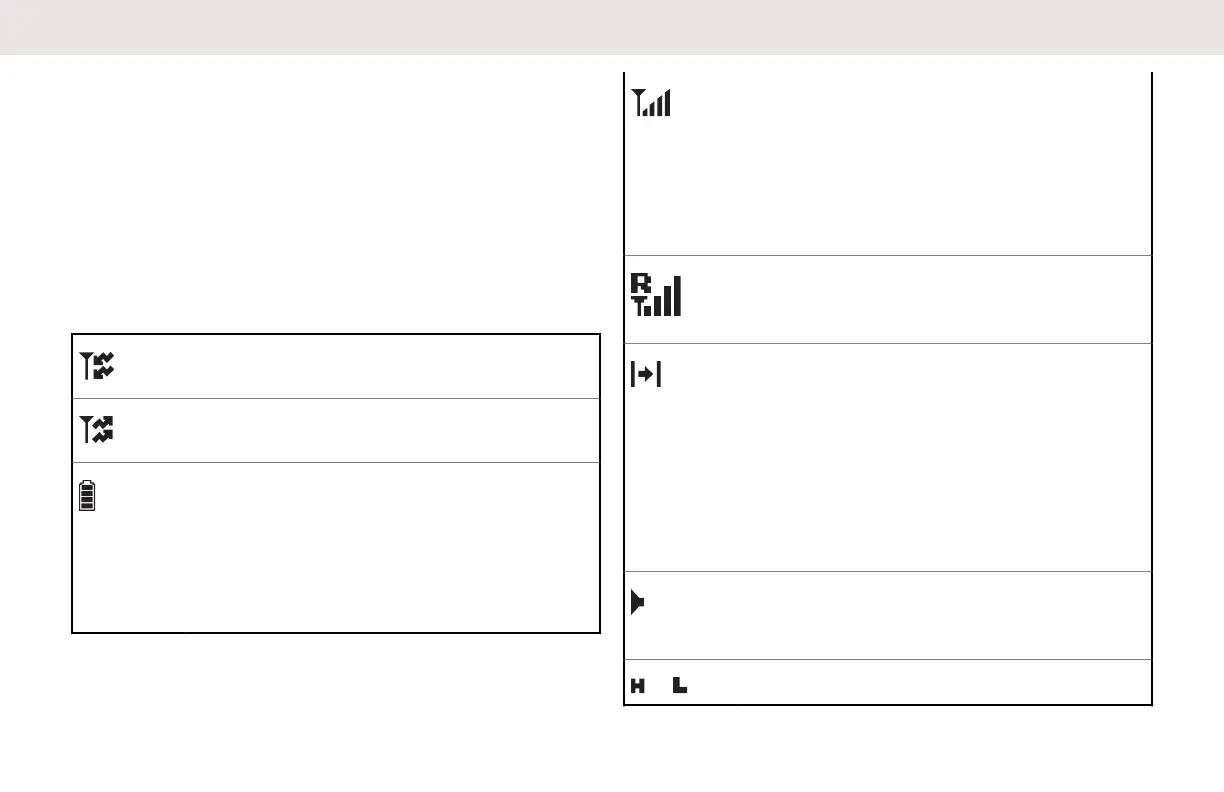

Status Icons
Selected icons are also shown on the first row of the 112 x
32 pixel top monochrome display screen of your radio.
Receiving
Radio is receiving a call or data.
Transmitting
Radio is transmitting a call or data.
Battery
For IMPRES 2 battery operation only –
the icon shown indicates the charge re-
maining in the battery.
For all battery operation – the icon
blinks when the battery is low.
Received Signal Strength Indicator
(RSSI)
The number of bars displayed repre-
sents the received signal strength for
the current site (trunking only) The more
stripes in the icon, the stronger the sig-
nal.
Roaming
The radio has roamed to and is currently
registered to a foreign system.
Direct
On
Radio is currently configured for direct
radio-to-radio communication (during
conventional operation only).
Off
Radio is connected with other radios
through a repeater.
Monitor (Carrier Squelch)
Selected channel is being monitored
(during conventional operation only).
or
Power Level
English
35
