Motorola CP040

2-4 MAINTENANCE
6.0 Radio Disassembly - Detailed
6.1 Front Cover from Chassis Disassembly
1. Turn off the radio.
2. Remove the battery (Figure 2-1) :
a. Slide the battery latch into the unlock position. Disengage by pushing downward and
holding the latch towards the front of the radio.
b. With the battery latch disengaged, slide the battery down from the top of the radio about
15mm. Once the battery is free from the battery rails, lift it directly away from the radio.
c. Remove the battery from the radio.
3. Remove the antenna.
4. Pry off the volume and channel selector knobs from their shafts using the knob remover/chassis
opener tool (Motorola part No.6686533Z01) (Figure 2.2).

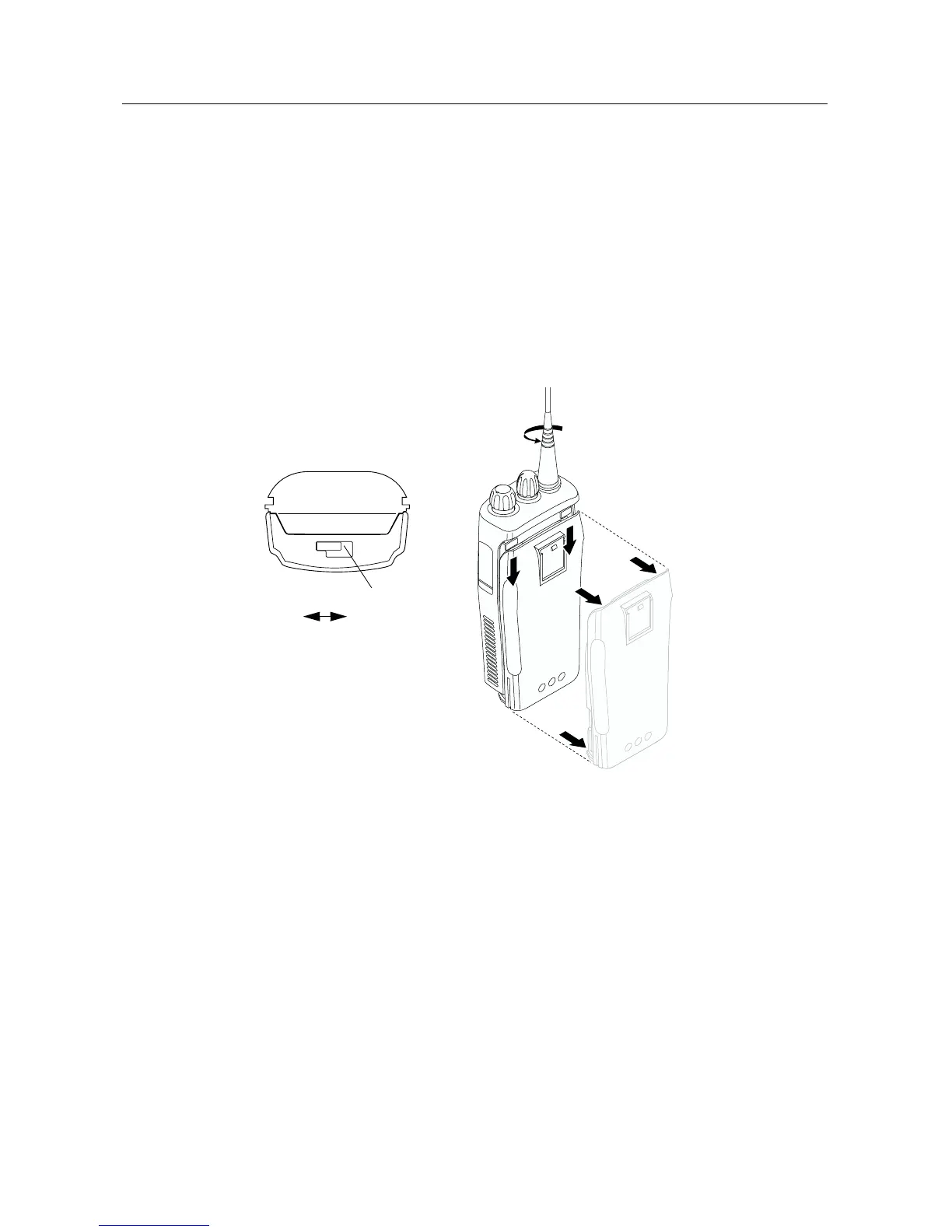

Figure 2-1 Battery Removal
Battery Latch
Lock
Unlock
