2-10 MAINTENANCE
7.3 Speaker Reassembly
1. Align the speaker as shown in Figure 2.9.
2. Insert the top of the speaker under the two rails in the housing.
3. Place the speaker retainer bracket onto the two screw bosses. Make sure the tab fits into the
retainer bracket slot.
4. Use the T6 Torx screwdriver to fasten the screws holding the retainer bracket to the front cover.
Tighten to 0.23Nm (2 in/lb).
7.4 Dust Cover Assembly
a. Insert the dust cover key into the housing at a 90° angle.
b. Rotate the dust cover 90° in a clockwise direction to allow the key to fully insert into the
housing.
c. Press the key and dust cover into the housing.

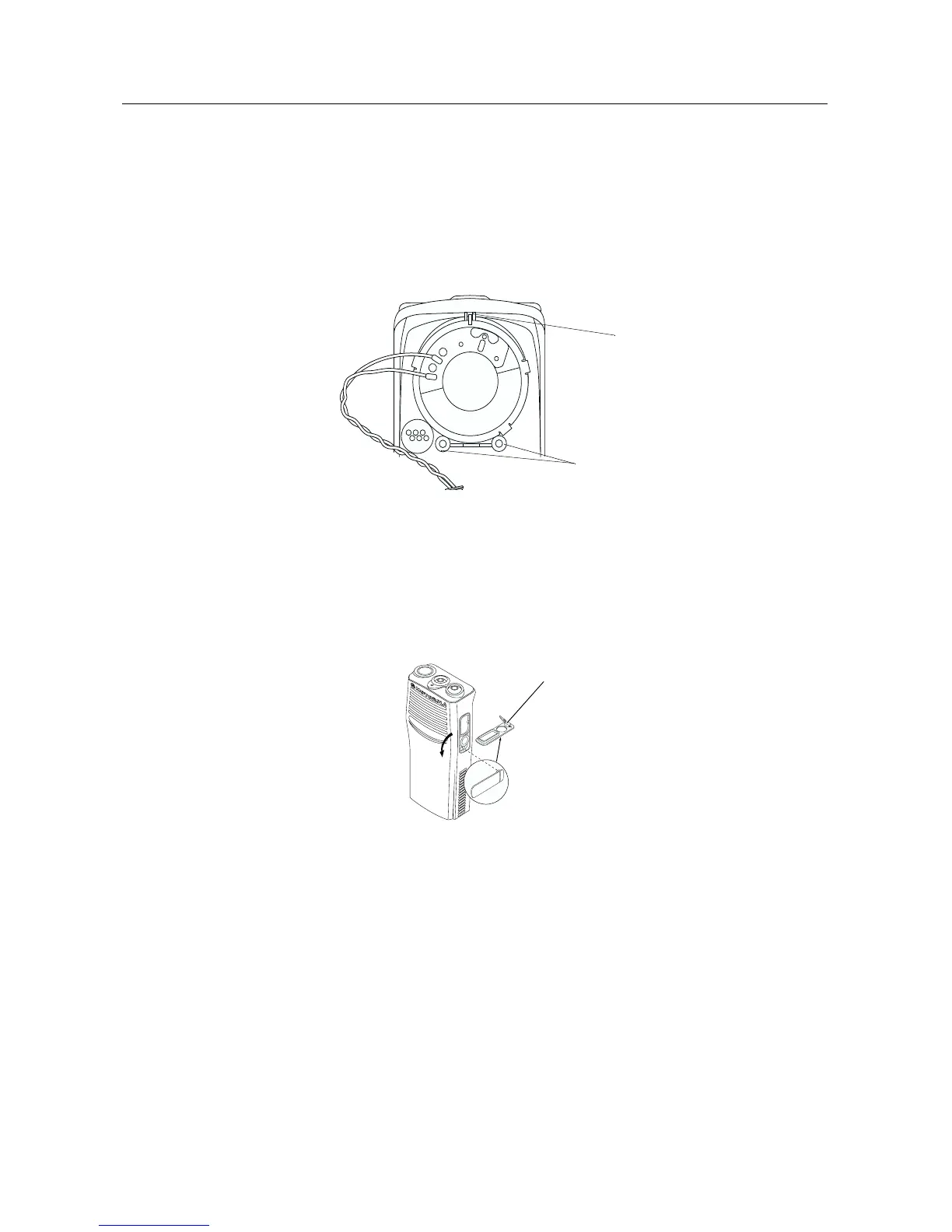

Figure 2-9 Speaker Assembly
Rails
Screw Bosses
a. Insert dust cover key into housing
at 90° angle.
Figure 2-10 Dust Cover Assembly
Key
