4-2 RADIO TUNING AND PROGRAMMING
3.0 CPS Programming Setup
Refer to online help files for the CPS Programming procedures.
4.0 Radio to Radio Cloning
Cloning is the process of copying the content of one radio (source radio) into another radio
(destination radio). Radio content refers to system-type features such as frequency, squelch type
options, trunking, etc.
Radio functionality inherent in one radio cannot be cloned to another radio that does not contain the
same functionality. Tuning and alignment information are not transferable and are not affected by
cloning.
Signaling Identification Numbers (IDs) are duplicated in the cloning process. Unique IDs may be
assigned with the CPS.
Procedure:
1. Turn source and target radios off.
2. Connect cloning cable (PMKN4003) to the side connector of both radios.
3. Turn on the destination radio.
4. Press and hold the two side buttons at the same time on the source radio and then power up the
source radio (Figure 4-3 Side Button Locations). Both radios produce a “clone-entry” tone.
5. Release both side buttons.
6. When cloning is completed, the source radio produce’s a “clone-exit” tone and both the source
and destination radios reset.
7. Turn both radios off.
8. Disconnect the cloning cable from both radios and turn them on for normal operation.

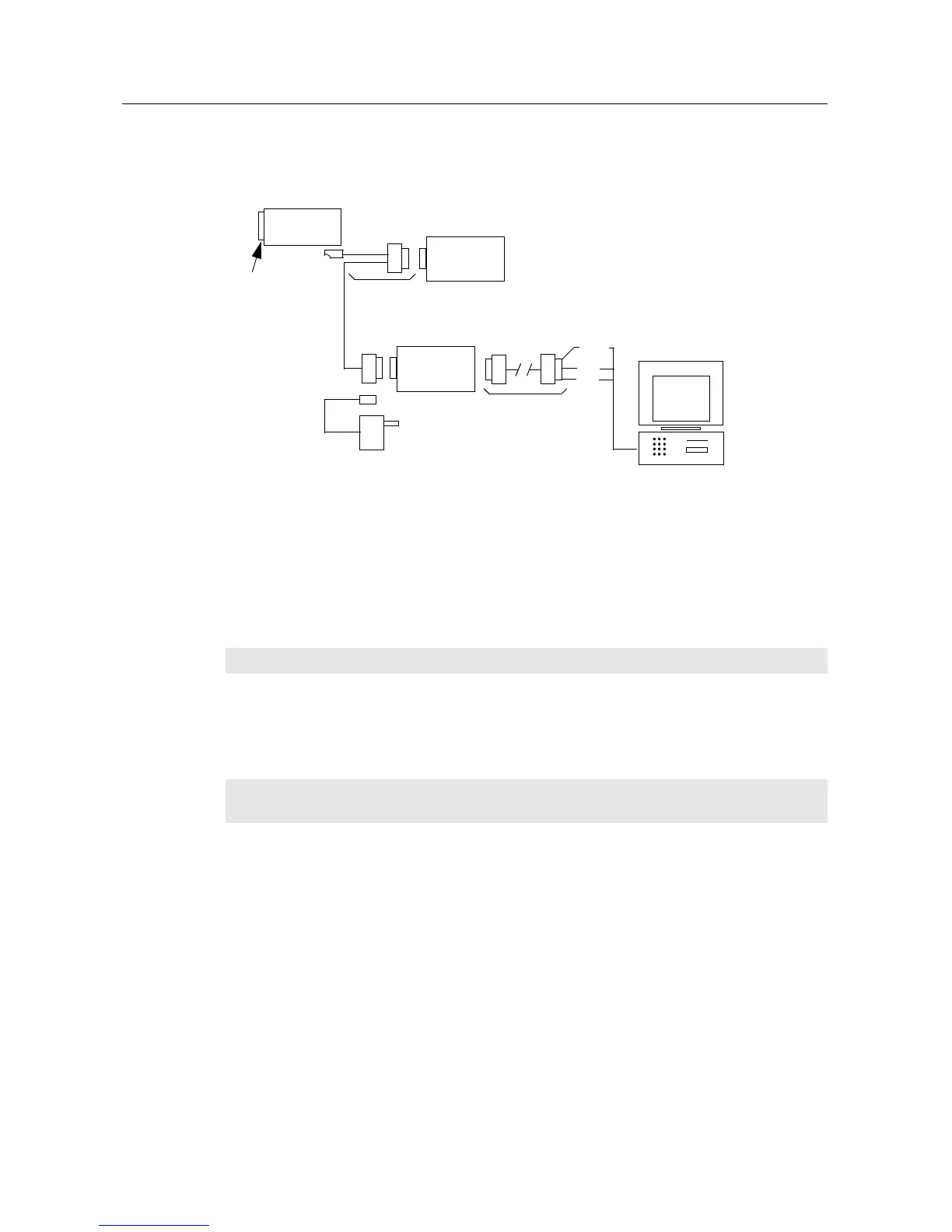

Figure 4-2 CPS Programming Setup
NOTE
The source radio’s serial number cannot be blank.
NOTE
Unsuccessful cloning attempts generates a continuous tone and may be an indication that
the destination radio’s codeplug is corrupted.
RIB
RLN4008
RIB Power Supply
RLN4460
Test Box
Rx
Gnd
Data
Tx Data
Radio
Battery
Computer Interface
Cable
Program/
PMKN4004
Test Cable
