Motorola Expert Series User Manual

EX500 Radio Disassembly — Detailed 3-5
3.6 EX500 Radio Disassembly — Detailed
3.6.1 Front Cover from Chassis Disassembly
1. Turn off the radio.
2. Remove the battery:
a. Pull down on the two battery-release buttons.
b. With the buttons pulled down, the top of the battery will fall from the radio.
c. Remove the battery from the radio.

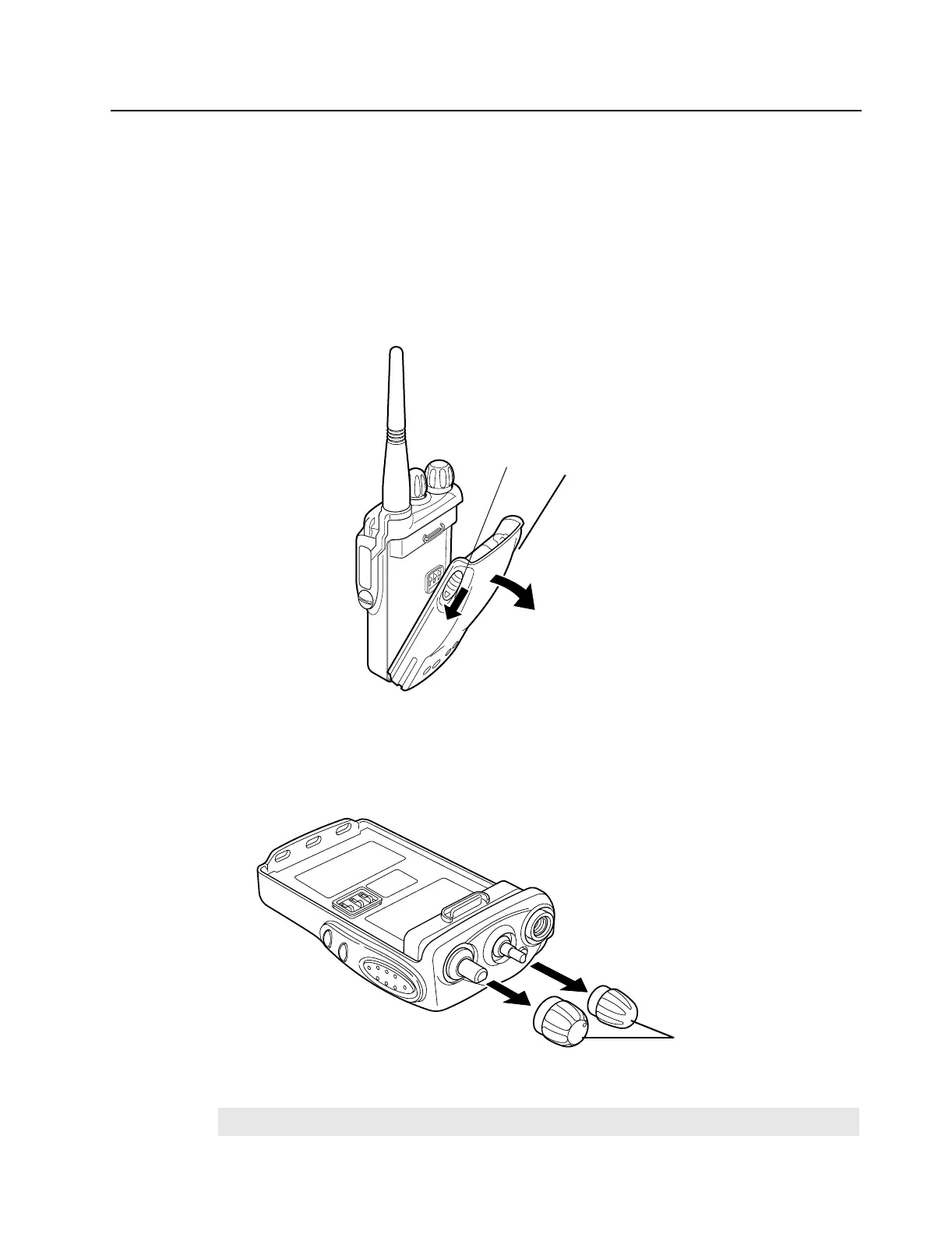

Figure 3-1 Battery Removal
3. Remove the antenna.
4. Pull the volume and channel selector knobs off of their shafts.
Figure 3-2 Knob Removal
NOTE
Both knobs slide on and off. However, they are supposed to fit very tightly on their shafts.
Battery Release
Buttons
Knobs
