3-14 EX600 / EX600•XLS Radio Disassembly — Detailed
6. Lay the chassis down. Rotate the front cover backward and slightly away from the chassis.
7. Lift the latches on the main circuit board to release the flexes from their connectors.
3.9.2 Chassis Assembly Disassembly
Use a Philips head screwdriver to remove the four screws holding the main board to the chassis.

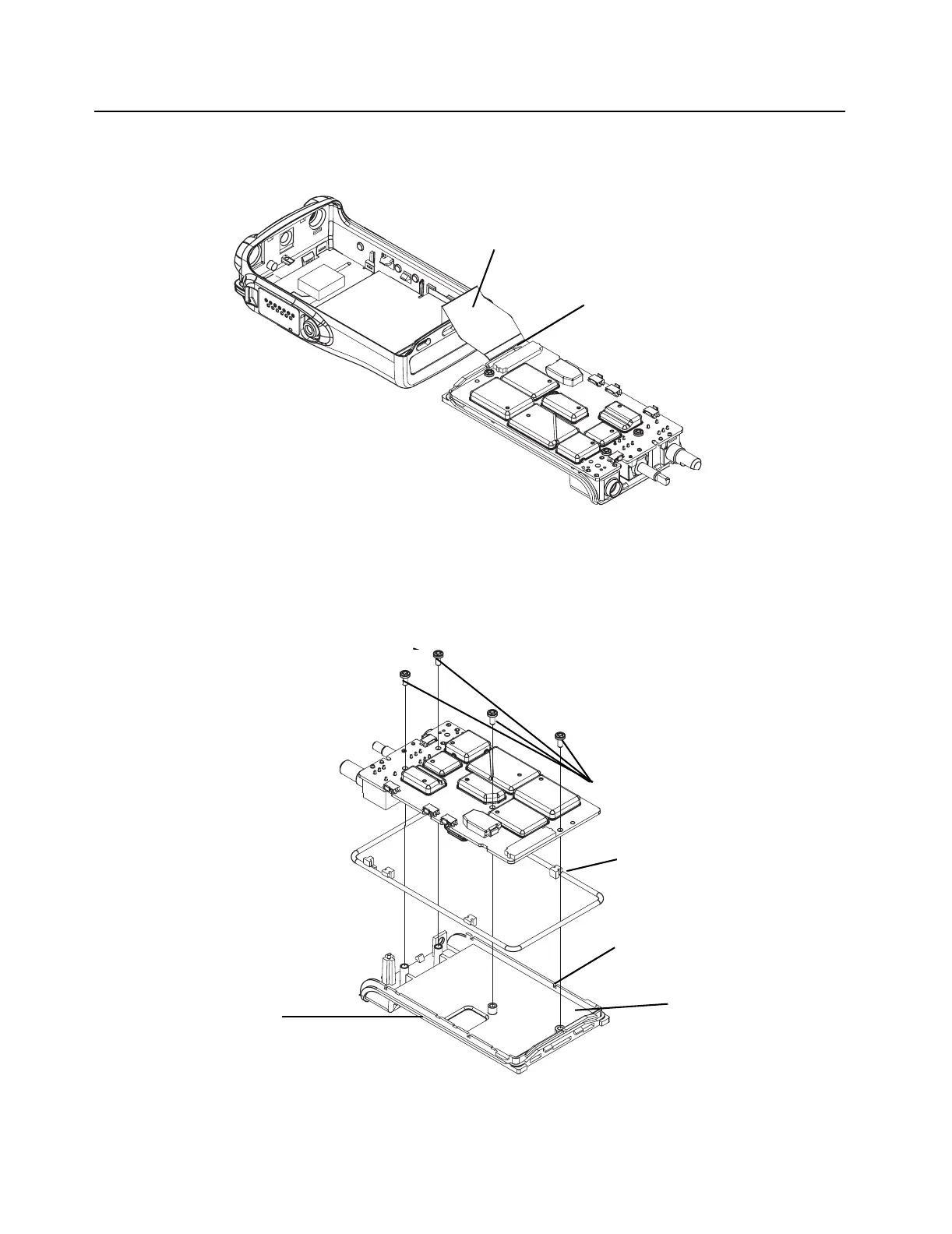

Figure 3-12 Unlatch Flex Connectors
Figure 3-13 Remove Main Board from Chassis
Flex Connector
Latch
M2x4 Philips screws
Main Board
O-ring Retainers on chassis
(4 position)
Chassis
O-ring
slots
