EX600 / EX600•XLS Radio Disassembly — Detailed 3-17
3.9.4 Controller Board, Display Module and Keypad Disassembly
1. Insert a small flat bladed screwdriver to loosen the retainer catches as shown. Remove the
retainer.
2. Remove the controller board, display module, and keypad.

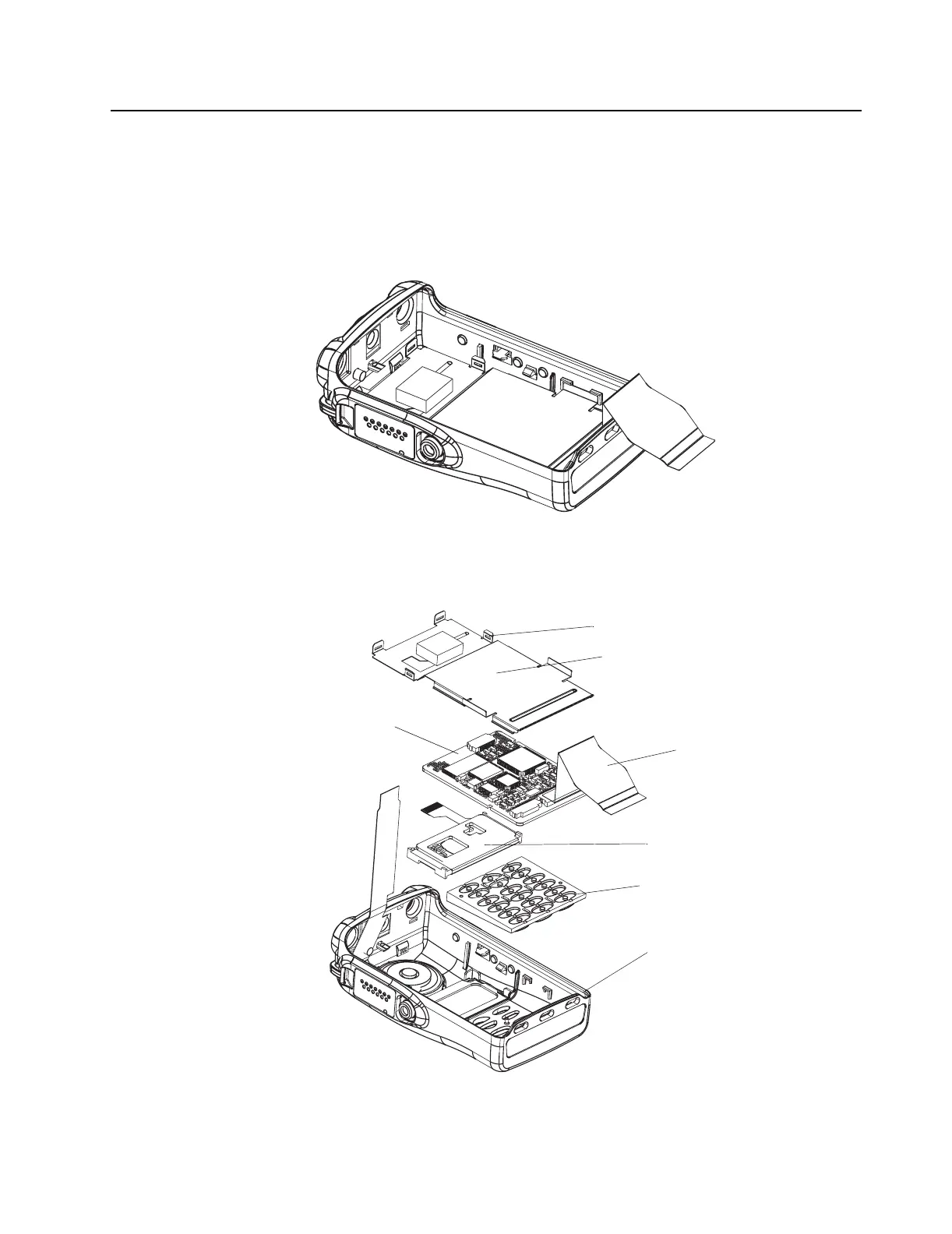

Figure 3-15 Removing the front cover
Figure 3-16 Removing the retainer, controller board, display module, and keypad from the radio body
Flex Circuit
Retainer Catches
Retainer
Controller
Board
Display Module
Keypad
Front Cover
