Pin Function Description
10 FLT_A+ (12 V) This is the voltage supply for EEH from power supply or bat-
tery
5.5.2
9-Pin subD Connector
The pin assignment of this 9-pin subD connector follows the requirements of an RS232 standard
interface with the RS232 voltage level. The cable (see section “Connecting Cables”) which has to be
used is a standardized serial interface cable which allows to connect a data device with an RS232
Interface such as PC, Laptop, Console.
Table 55: 9–Pin subD Connector Pins
Pin Function Description PC Direction
1 DCD Data Carrier Detect Input
2 RXD Received Data Serial Serial IN
3 TXD Transmitted Data Serial OUT
4 DTR Data Terminal Ready Output
5 GND Ground Output Output
6 DSR Data Set Ready Input
7 RTS Request to Send Output
8 CTS Clear to Send Input
9 RI Ring Indicator Input
5.6
Connector and Pin Assignment of the Enhanced Control Head

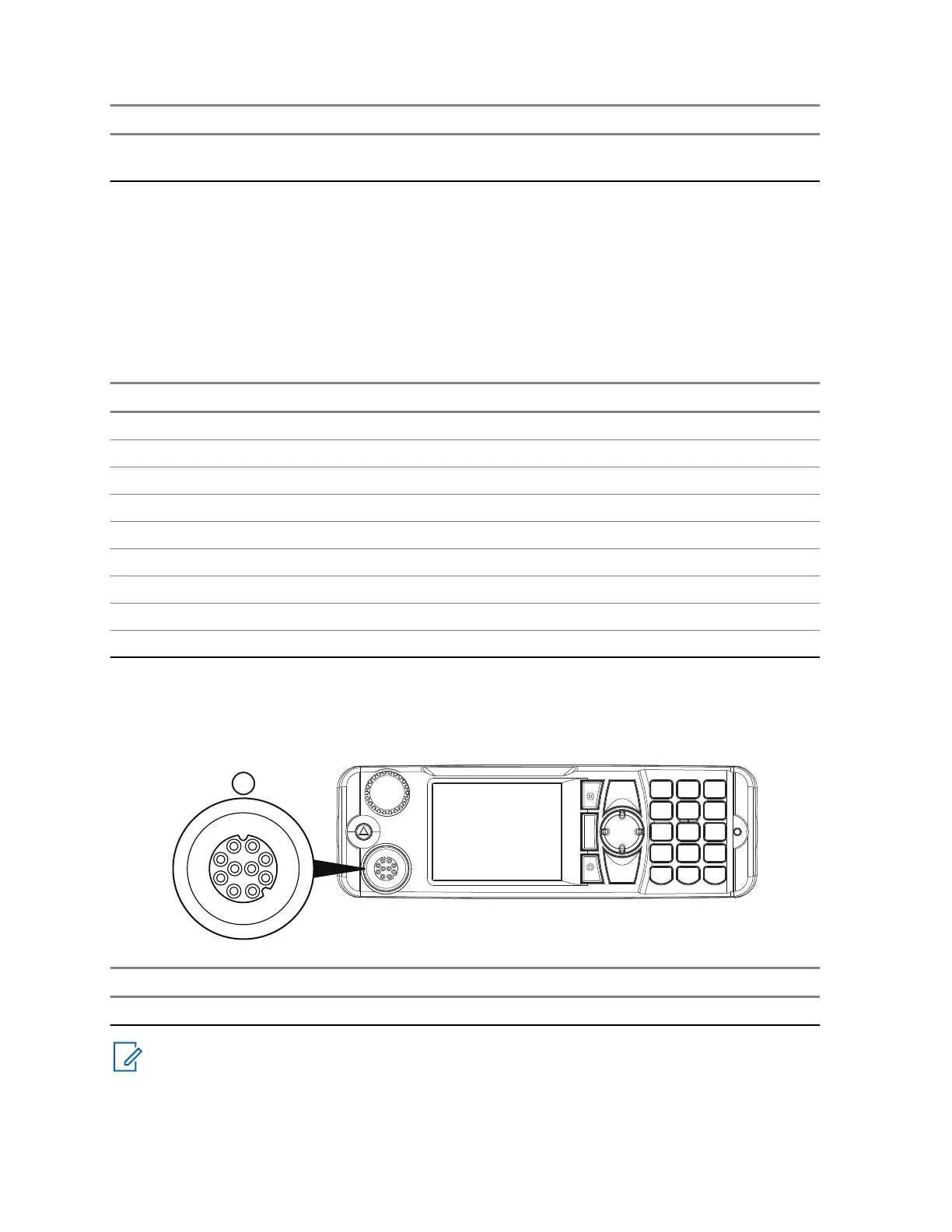

Figure 60: Enhanced Control Head’s Mobile Microphone Port Connector
Number Description
1 View of the Enhanced Control Head’s Mobile Microphone Port Connector
NOTICE: The keypad labeling of the control head may vary according to the specific customer/
country concerns.
68015000181-LB
Chapter 5: Connectors and PIN Assignment
102 Send Feedback
