Motorola Malux MTM5x00 Series

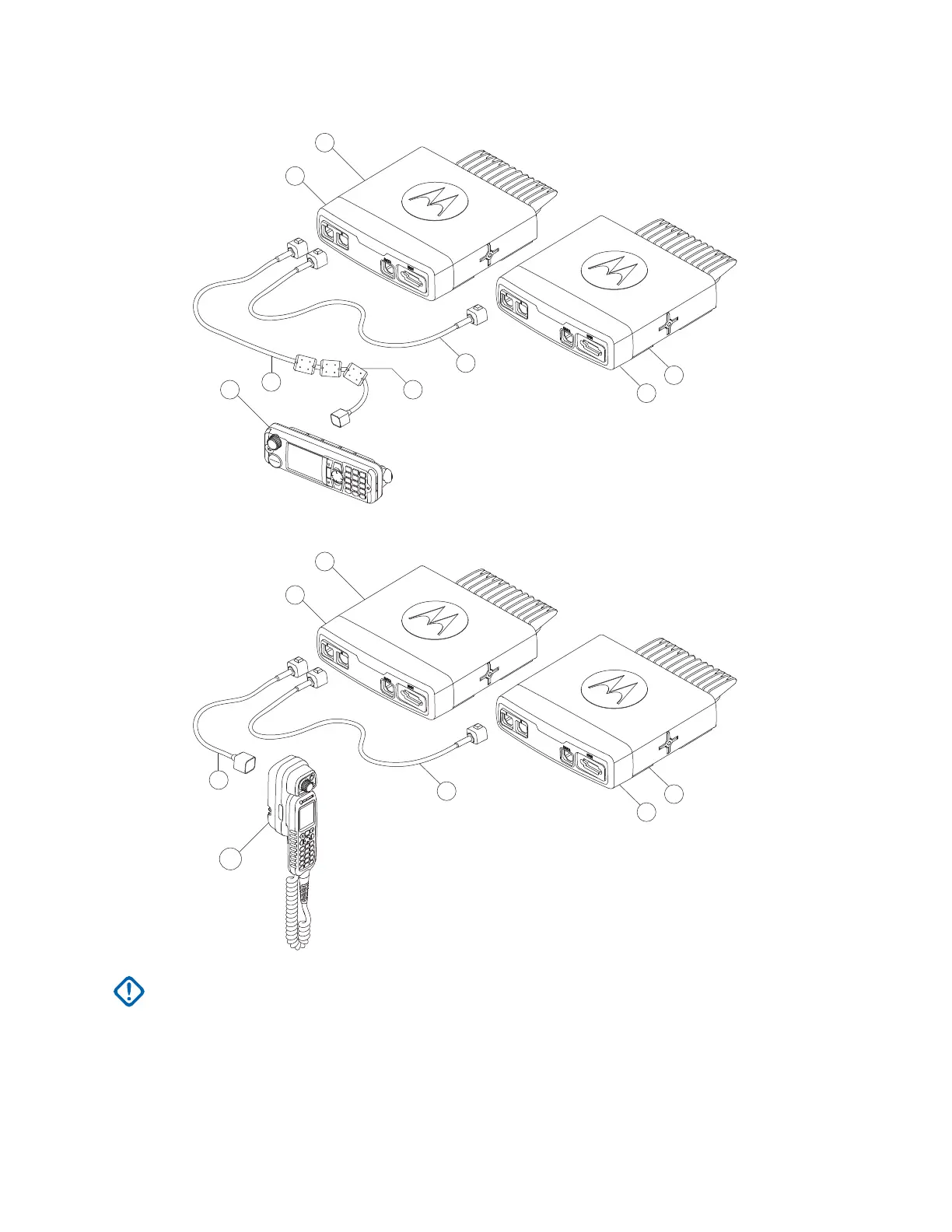

Figure 17: Multi Radio Control Installation with eCH
1
1
2
2
8
6
4 5
Figure 18: Multi Radio Control Installation with TSCH
1
1
2
2
8
7
3
IMPORTANT: If you are typing a message on one Control Head, key presses (except
Emergency) are ignored on the other Control Head. Besides, it is possible to turn off the radio
using the Power Off button of the inactive Control Head.
