5.8.2
Remote Mount Cables
Remote Mount Cables (to connect Remote Mount Enhanced Control Head to the Remote/Expansion
Head) – RKN4077/8/9, PMKN4020

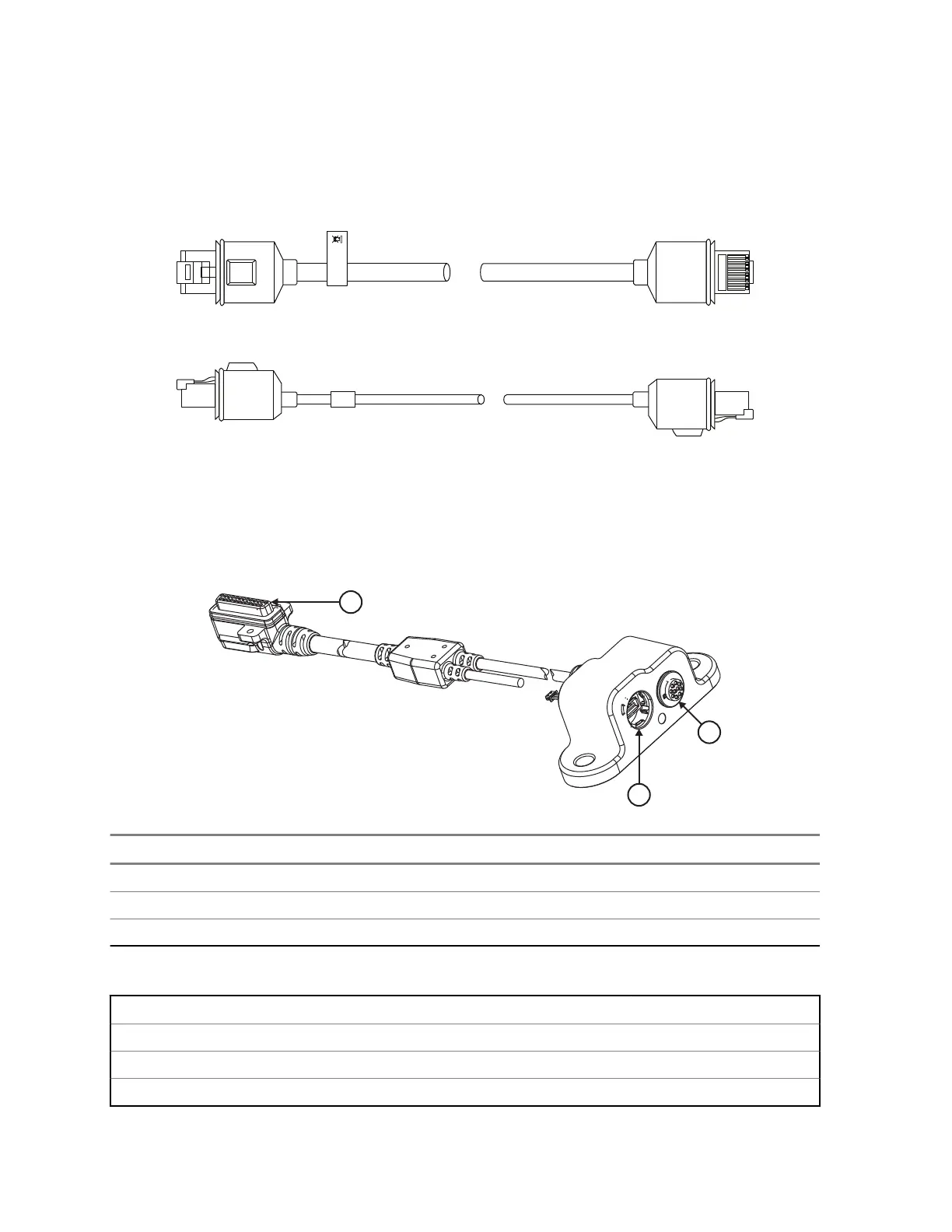

Figure 67: Remote Mount Cable
5.8.3
Accessories Expansion Cable
Accessories Expansion Cable (to connect Remote Mount Enhanced Control Head/Motorcycle Mount
Enhanced Control Head to accessories). Part Number: PMKN4029_
Figure 68: Accessories Expansion Cable
Number Description
1 subD Connector
2 Mobile Microphone Port
3 USB Connector
Table 62: Accessories Expansion Cable — Connections
USB A JACK Signal subD 25 Pos
1 VBUS 9
2 D- 22
3 D+ 21
Table continued…
68015000181-LB
Chapter 5: Connectors and PIN Assignment
110 Send Feedback
