Motorola Malux MTM5x00 Series

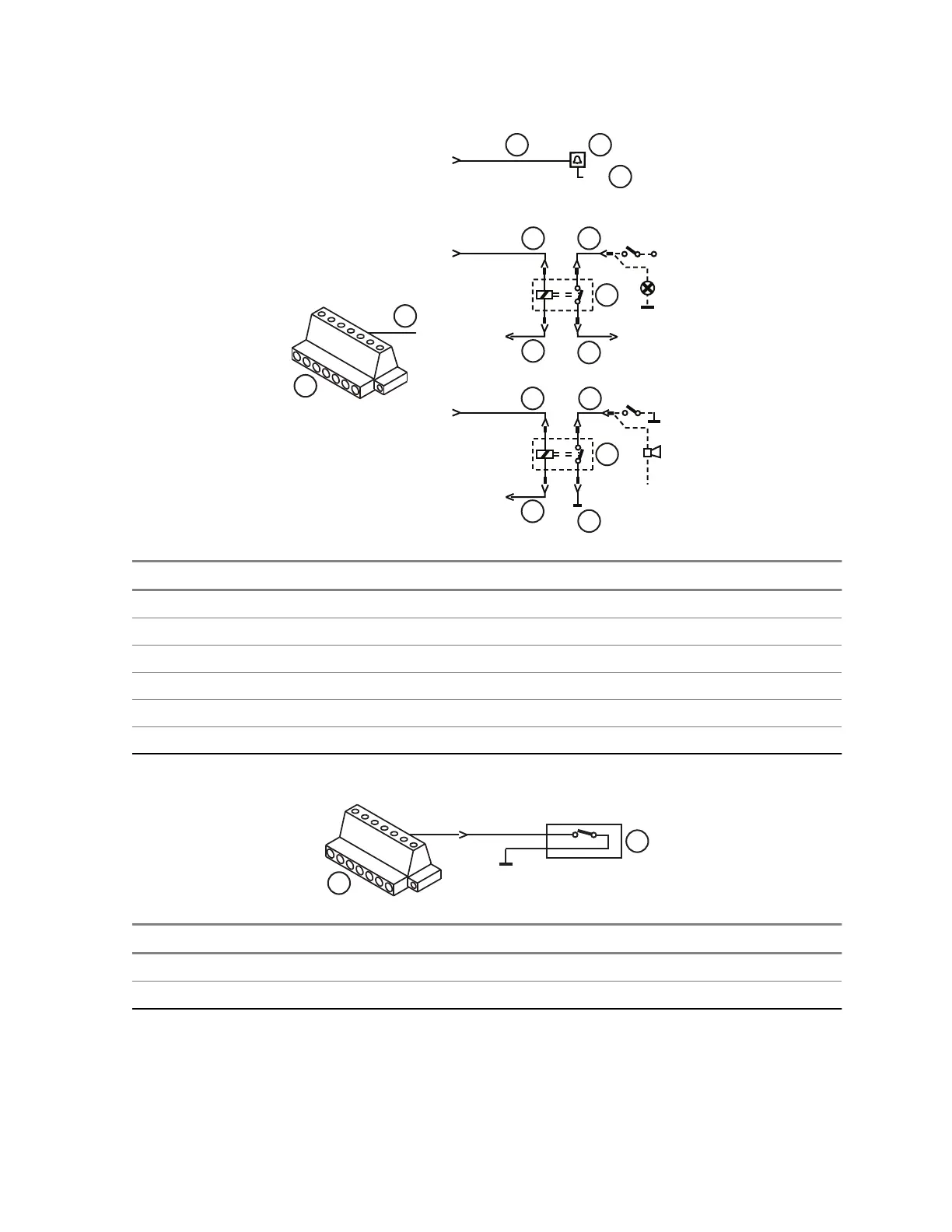

Figure 45: Connection Plan for the Alarm Relay
1
2
3
4
5
6
7
1
2
5
5
5
5
5
3
3
3 3
3
6
6
4
5
5
86
87
85 30
+12 V
86
87
85 30
+12 V
5
+12V
+12 V
+12 V
+12 V
Number Description
1 JUNCTION BOX TERMINAL
2 EXTERNAL ALARM
3 BLK
4 BUZZLER
5 RED
6 ALARM RELAY
Figure 46: Connection Plan for the Emergency Switch
1
2
3
4
5
6
7
1
2
Number Description
1 Junction Box Terminal
2 Emergency Switch
