4.4.6.1
Mounting TSCH Cradle onto Slim Bracket
Procedure:
1 Place the bracket on intended location and tighten the four Screws (Motorola Part Number:
0312002B14) on screw holes as illustrated in the following picture.

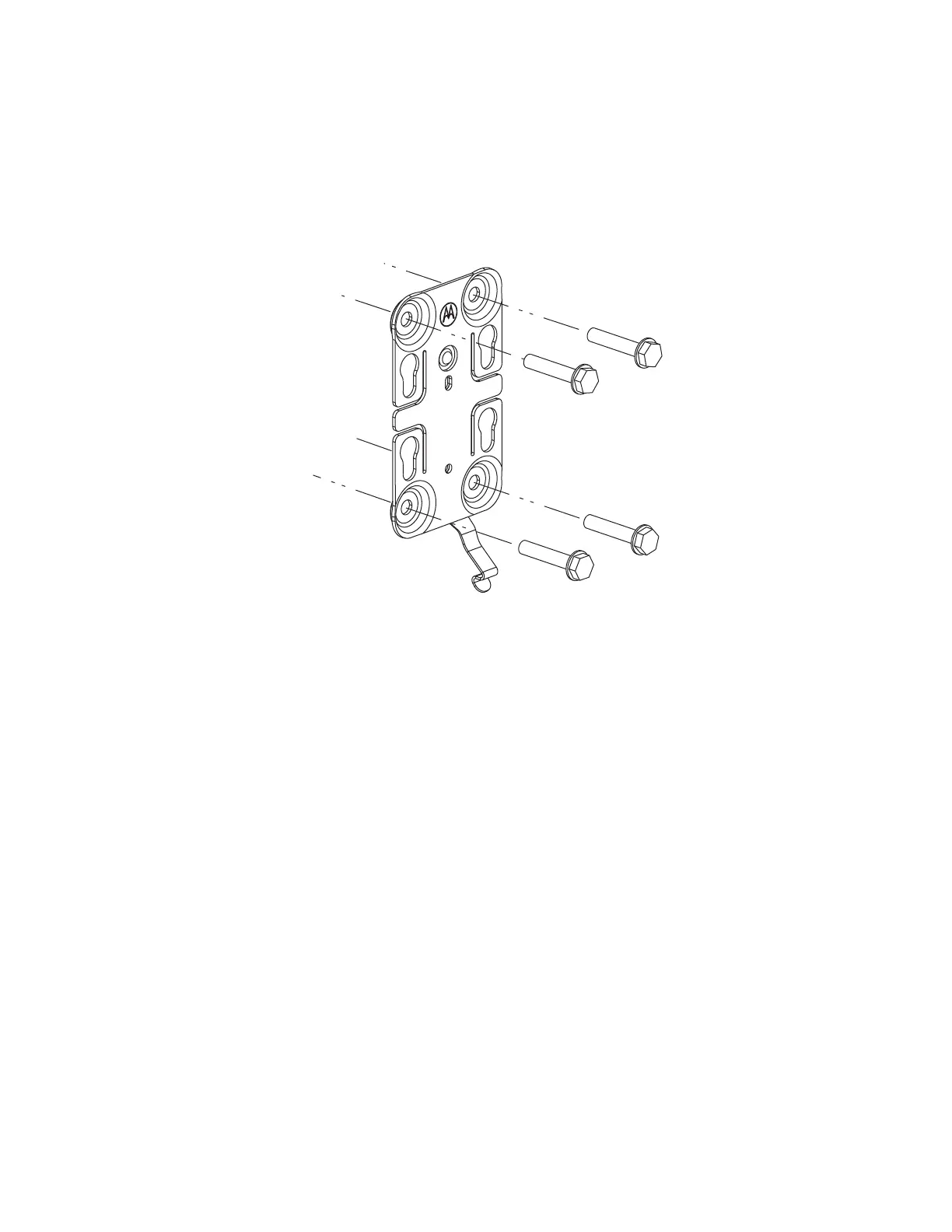

Figure 30: Slim Bracket
2 Tighten the four screws (Motorola Part Number: 03012069001) on four inserts of TSCH cradle
as illustrated in the following picture with 5 lbf in (0.5649 Nm) screw torque.
