Motorola Malux MTM5x00 Series User Manual

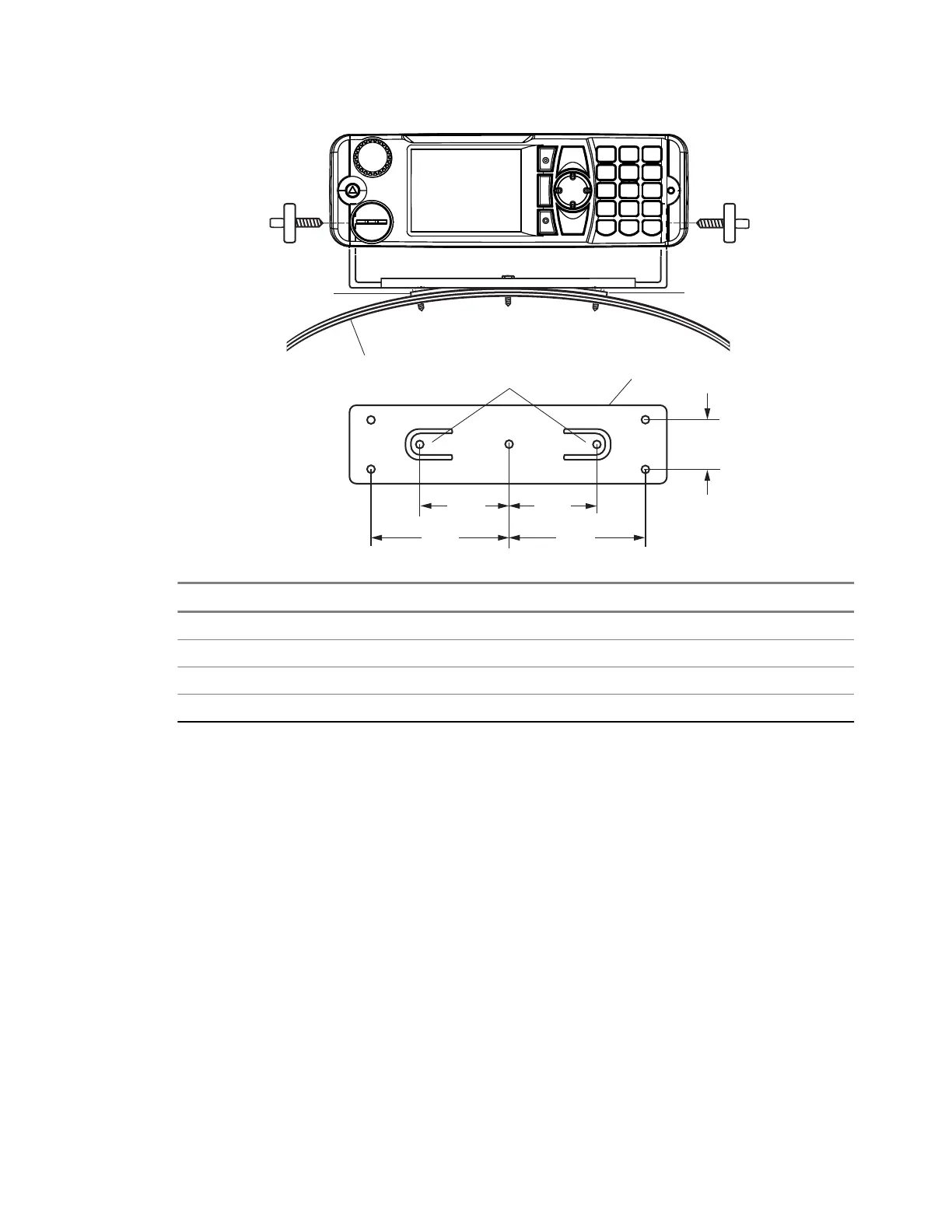

Figure 51: Top of Dash Mount
46 mm
(1.84")
73 mm
(2.92")
73 mm
(2.92")
46 mm
(1.84")
28 mm
(1.12")
1
1
22
3
2
4
Number Description
1 Wing screw
2 Tab
3 Mounting surface
4 Trunnion mounting bracket
The GLN7317_ kit comes complete with:
• 0771061L01 – Bracket, Standard Trunnion
• 0302637Y01 – Wing Screw M5x7.9 mm, quantity 2
• 0400002647 – Lock washer, quantity 2
• 0312002B14 – Self-drill Steel 10-16x1, quantity 4
68015000181-LB
Chapter 4: Radio Installation
Send Feedback 91
