Motorola Malux MTM5x00 Series

4.4.1
Ethernet Cables
WARNING: Ethernet Expansion Heads are only compatible with Ethernet Remote Heads. Do
not combine Ethernet Control Head with non-Ethernet Control Head. Also, ensure use of proper
Ethernet cables to connect the Ethernet Expansion Head with TSCH, eCH or to another
Ethernet Expansion Head. If not connected properly, the transceiver can be broken.
Table 47: Ethernet Cables
Item Part Number
TETRA Mobile Ethernet Cable, 3 m PMKN4141_
TETRA Mobile Ethernet Cable, 5 m PMKN4140_
TETRA Mobile Ethernet Cable, 7 m PMKN4139_
TETRA Mobile Ethernet Cable, 10 m PMKN4138_
TETRA Mobile Ethernet Cable, 12 m PMKN4136_
TETRA Mobile Ethernet Cable, 15 m PMKN4146_
TETRA Mobile Ethernet Cable, 40 m PMKN4135_
TETRA Mobile to Mobile Ethernet Cable, 0.5 m PMKN4176_
TETRA Mobile to Mobile Ethernet Cable, 3 m PMKN4177_
TETRA Mobile to Mobile Ethernet Cable, 7 m PMKN4178_

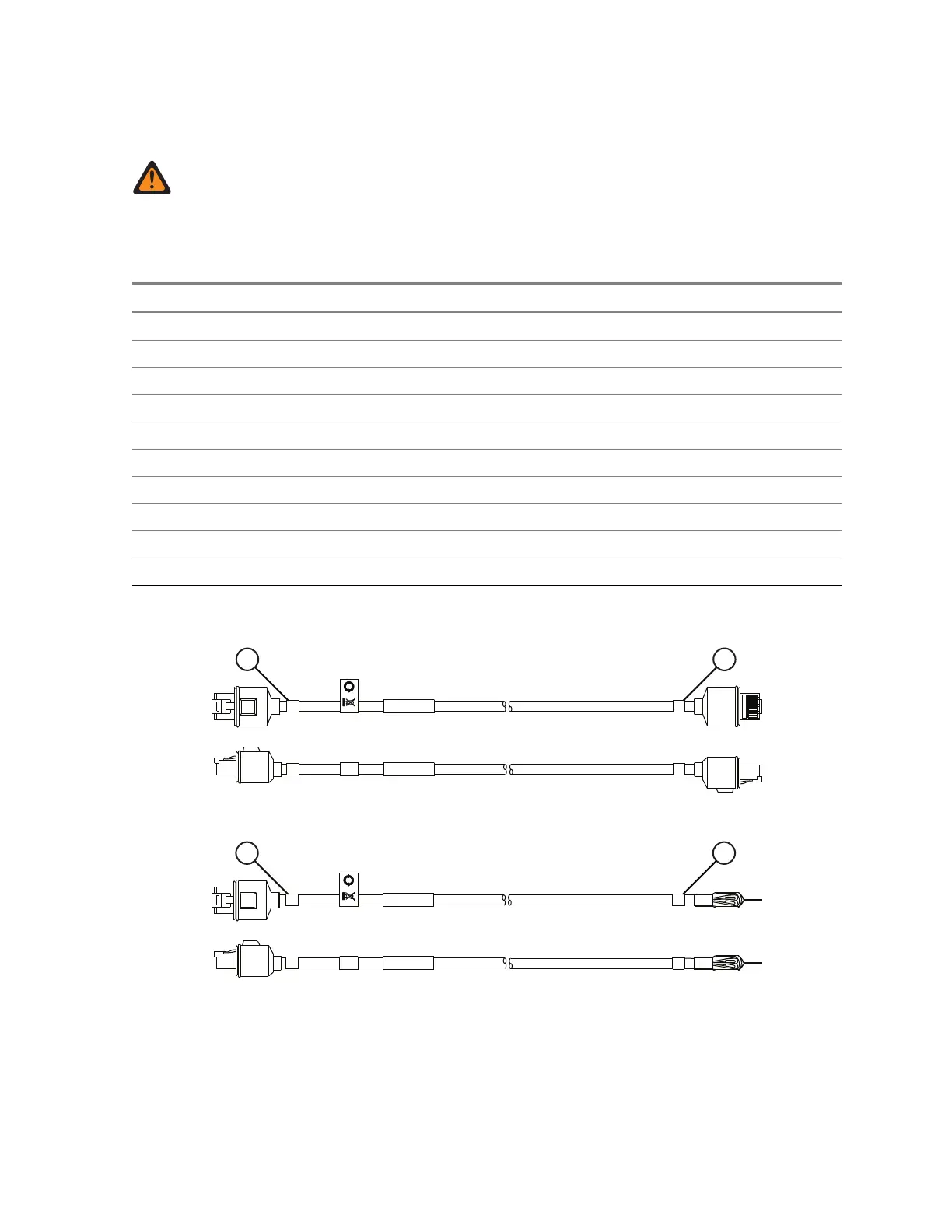

Figure 19: Ethernet Cable (PMKN4141_, PMKN4140_, PMKN4139_, PMKN4138_, PMKN4136_,
and PMKN4146_)
1 2
Figure 20: Ethernet Cable (PMKN4135_)
1 2
