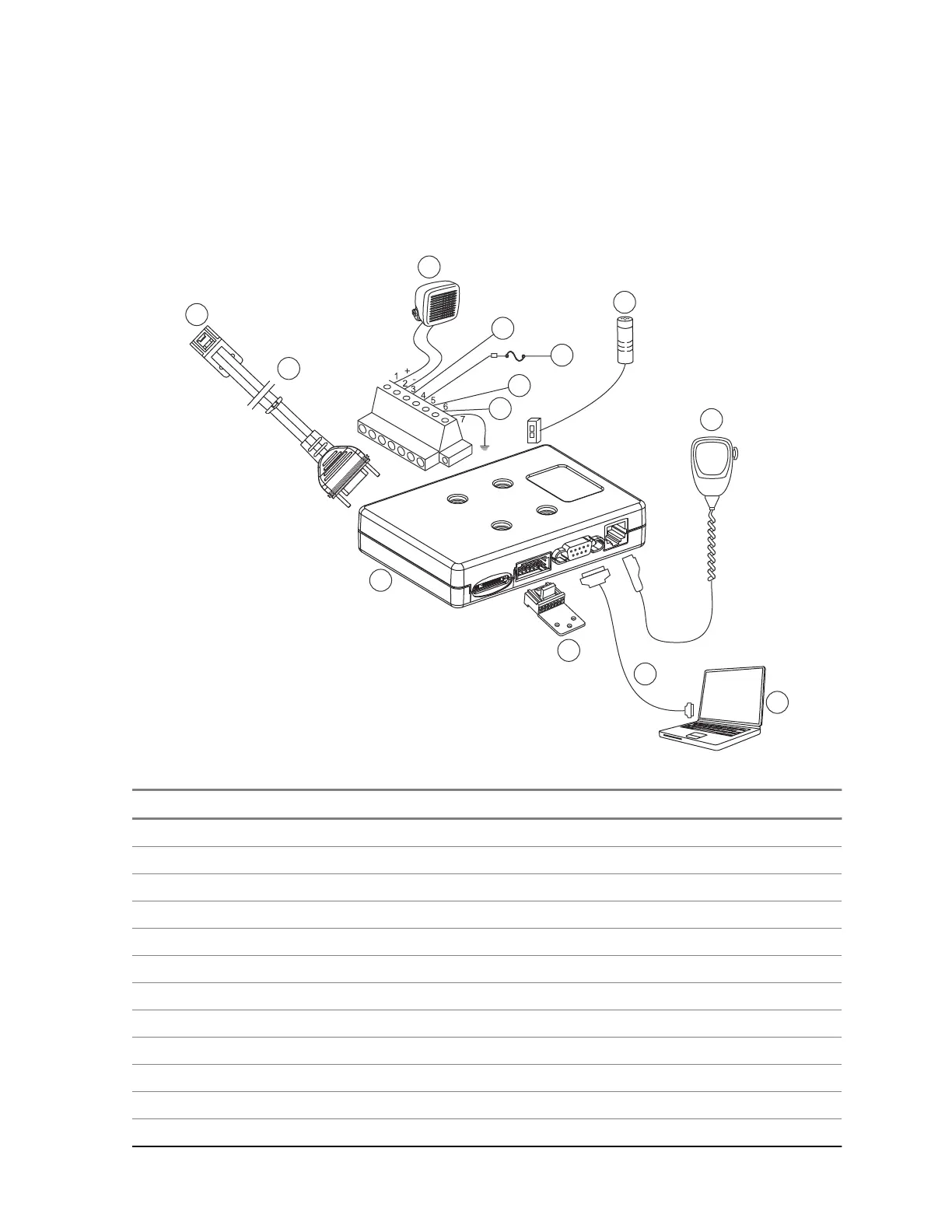

Figure 41: Remote Mount Installation with Junction Box
Number Description
1 to MTM5x00 accessory connector
2 Speaker
3 Visor microphone PMMN4087_
4 Connecting cable PMKN4101/2/3_
5 External PTT
6 To Ignition Switch
7 External Alarm
8 Emergency Switch
9 Fist Microphone GMMN4063_
10 Junction Box GMLN5089_
11 Accessory Connector Kit GMBN1021_
12 Standard RS232 cable
Table continued…
