2 - 12 MC1000 with Windows CE 5.0 User Guide

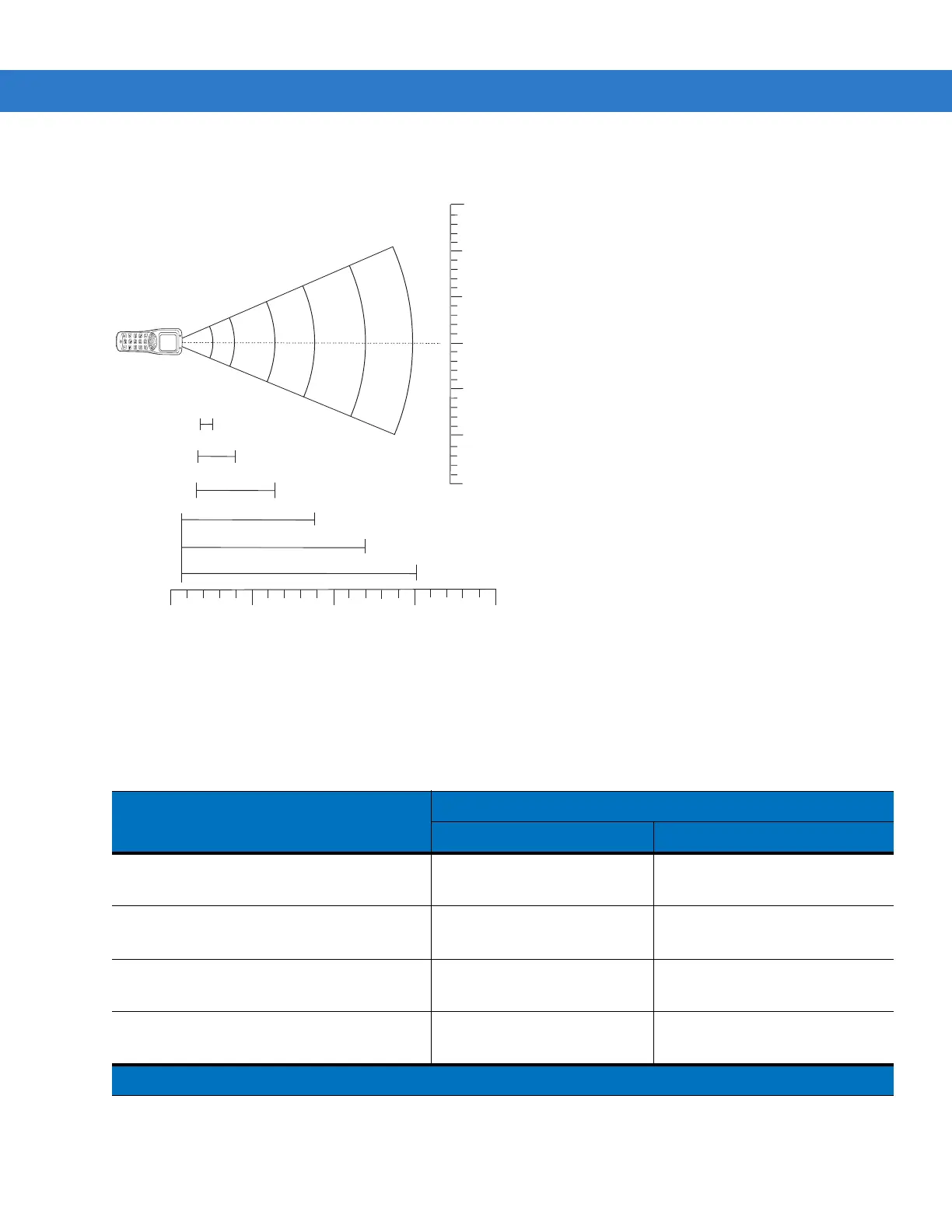

Figure 2-10 MC1000 Laser Decode Ranges
Table 2-5 MC1000 Laser Decode Ranges
Bar Code Density
Ranges
Near Far
5.0 mil 2.6 in
6.60 cm
4.9 in
12.45 cm
7.5 mil 2.2 in
5.59 cm
7.9 in
20.07 cm
10 mil 1.9 in
4.83 cm
10.8 in
67.95cm
100% UPC 2.1 in
5.33 cm
12.7 in
32.26 cm
Note: Minimum distance determined by symbol length and scan angle.
in.
cm
5 mil
4.9
7.5 mil
7.9
100% UPC
12.7
17.9
24.1
20 mil
40 mil
30.6
55 mil
*Minimum distance determined by symbol length and scan angle
0
6
12
0
15.3
30.5
45.7
15.3
30.5
45.7
6
12
in. cm
W
i
d
t
h
o
f
F
i
e
l
d
Depth of Field
0
0
10
25.4
20
50.8
30
76.2
18
2.1
2.2
2.6
40
101.6
18
*
Note: Typical performance at 73° F (23° C)
on high quality symbols.
