Cables
This section describes how to set up and use the cables. The cables:
•
provide the mobile computer’s operating power and battery charging power when used with the Symbol
approved power supply.
•
provide serial connection through the serial pass-through port for communication with a serial device, such
as a host computer. For communication setup procedures, refer to the MC1000 with Windows CE 5.0
Integrator Guide.
•
provide USB connection through the USB pass-through port for communication with a USB device, such as a
host computer. For communication setup procedures, refer to the MC1000 with Windows CE 5.0 Integrator
Guide.
•
provide printing capabilities to an approved printer.
Cable Connection
1. Slide the bottom of the mobile computer into the cable cup and gently press it down until it is firmly seated in
the cable cup.

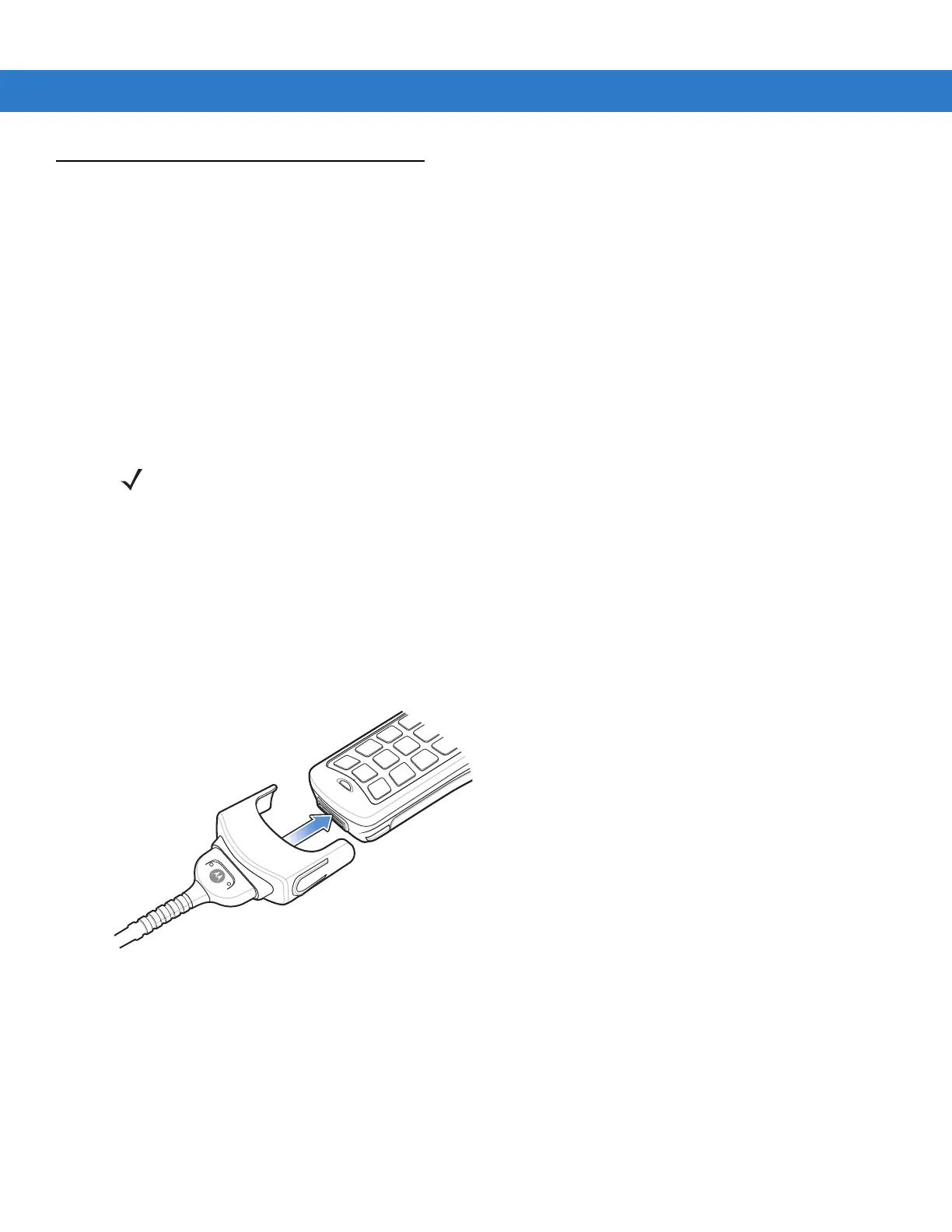

Figure 3-4
Cable Connection
2. Connect the other end of the cable to the appropriate host device.
3. For the RS-232 Serial Charge cable, connect the power supply.
NOTE Use only a Symbol-approved power supply output rated 5.4 VDC and minimum 3 A. The power supply is
certified to EN60950 with SELV outputs. Use of alternative power supply will invalidate any approval given to
this device and may be dangerous.
HINWEIS Benutzen Sie nur eine Symbol Technologies genehmigt in den Ausgabe: 5.4 VDC und minimum 3A. Die
Stromversorgung ist bescheinigt nach EN60950 mit SELV Ausgaben. Bei Verwendung eines anderen
Netzteils werden alle für das Gerät gewährten Genehmigungen außer Kraft gesetzt, und der Betrieb kann
gefährlich sein.
