LED Information
2-2

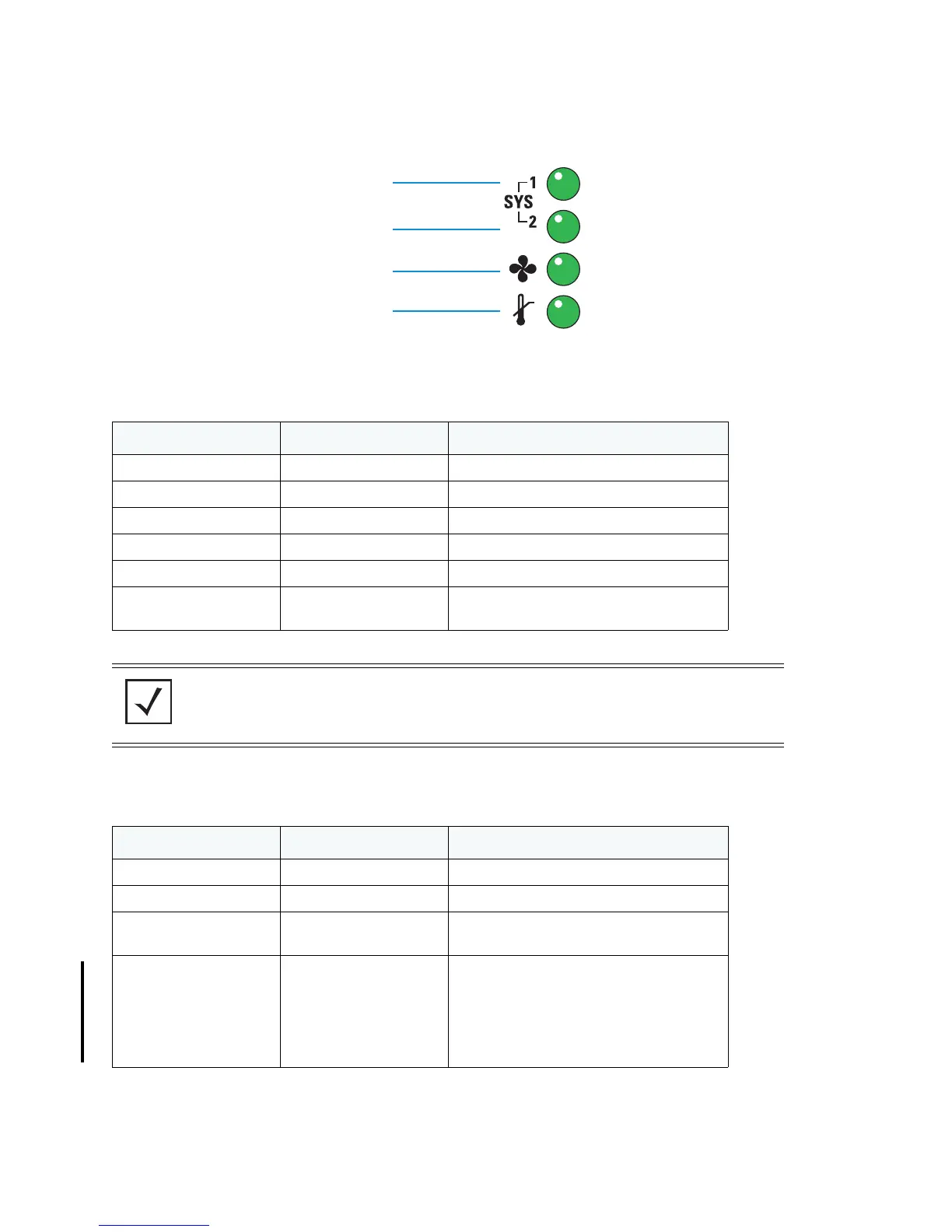

2.1 System Status LEDs
2.1.1 Start Up / POST (Primary System or Redundant System)
2.1.2 Switch Status (Primary System)
System Status 1 LED System Status 2 LED Event
Off Off Power off
Green Blinking Green Blinking Power On Self Test (POST) running
Green Solid Green Blinking POST succeeded (Operating System Loading)
Green Solid Off POST succeeded (Normal Operation)
Amber Blinking Off POST Failure
Alternating Green Blinking
& Amber Blinking
Alternating Green Blinking
& Amber Blinking
Boot Up Error: Device has an invalid checksum
NOTE During switch start up, the Temperature status LED will be lit Solid Amber. This is
normal behavior and does not indicate an error. At the completion of start up the
Temperature Status LED will switch to Solid Green.
System Status 1 LED System Status 2 LED Event
Off Off Power off
Green Solid Off No Redundancy Feature Enabled
Green Solid Green Solid
Redundancy Feature Enabled
Actively Adopting Access Ports
Green Solid Amber Blinking
No License to adopt Access Ports
or
No Country Code configured on the switch
or
License and Country Code configured, but no
APs adopted
