Motorola SL1M - Audio Test Cable

Test Equipment and Service Aids: Audio Test Cable 2-5
2.5 Audio Test Cable

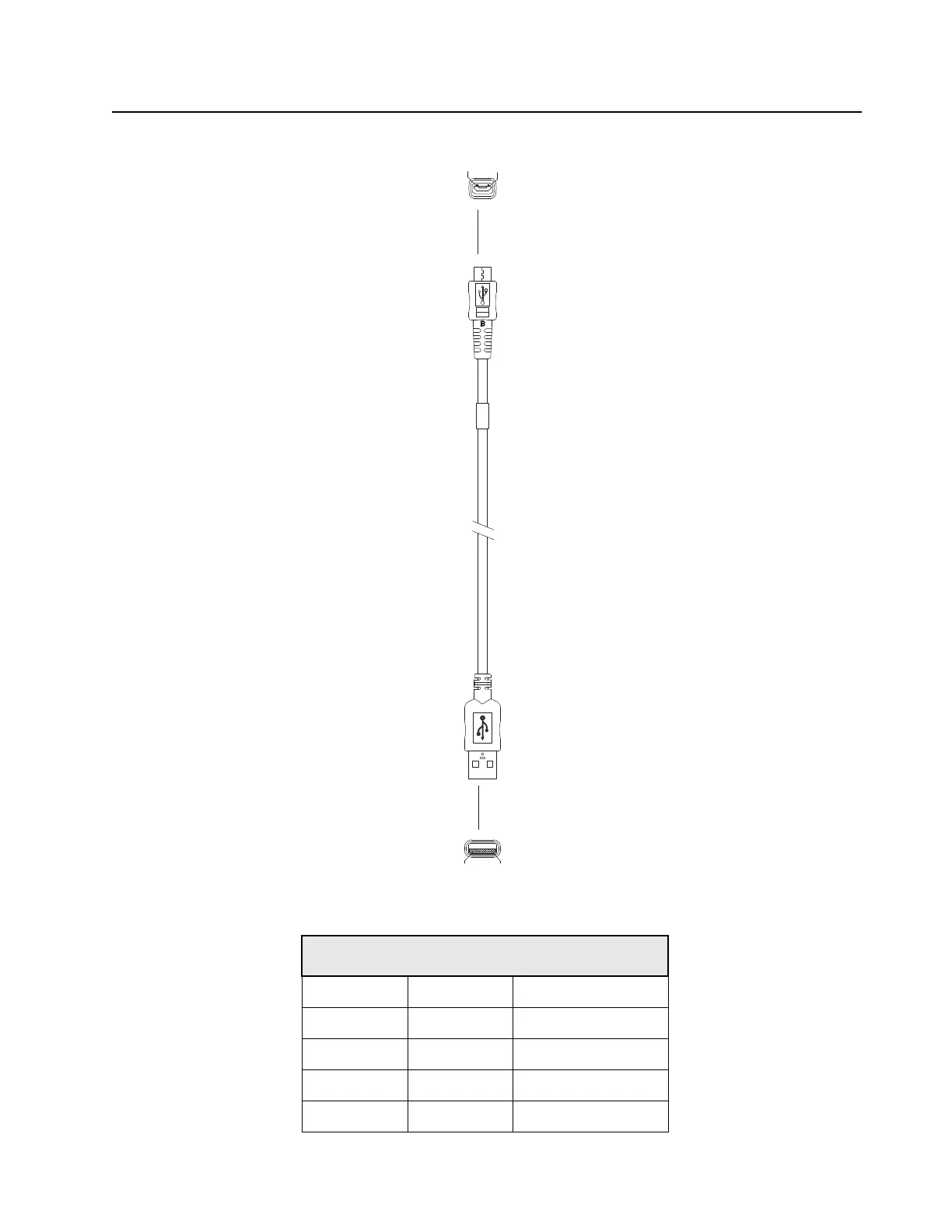

Figure 2-3. Audio Test Cable (CB000233A01)
Table 2-5. Pin Configuration of Audio Test Cable
CONNECTION
P1 P2 Function
1,5 2 SPK+
17 1 MIC+
2,7,16 3 MIC-,SPK-
20 5 PTT
CONN 1
CONN 2
P5 P1
P4 P1
