Motorola SL1M - Detailed Radio Reassembly

5-16 Disassembly And Reassembly Procedures: Radio Reassembly – Detailed
2. Pull the dust cover out from the front housing as shown in Figure 5-20.

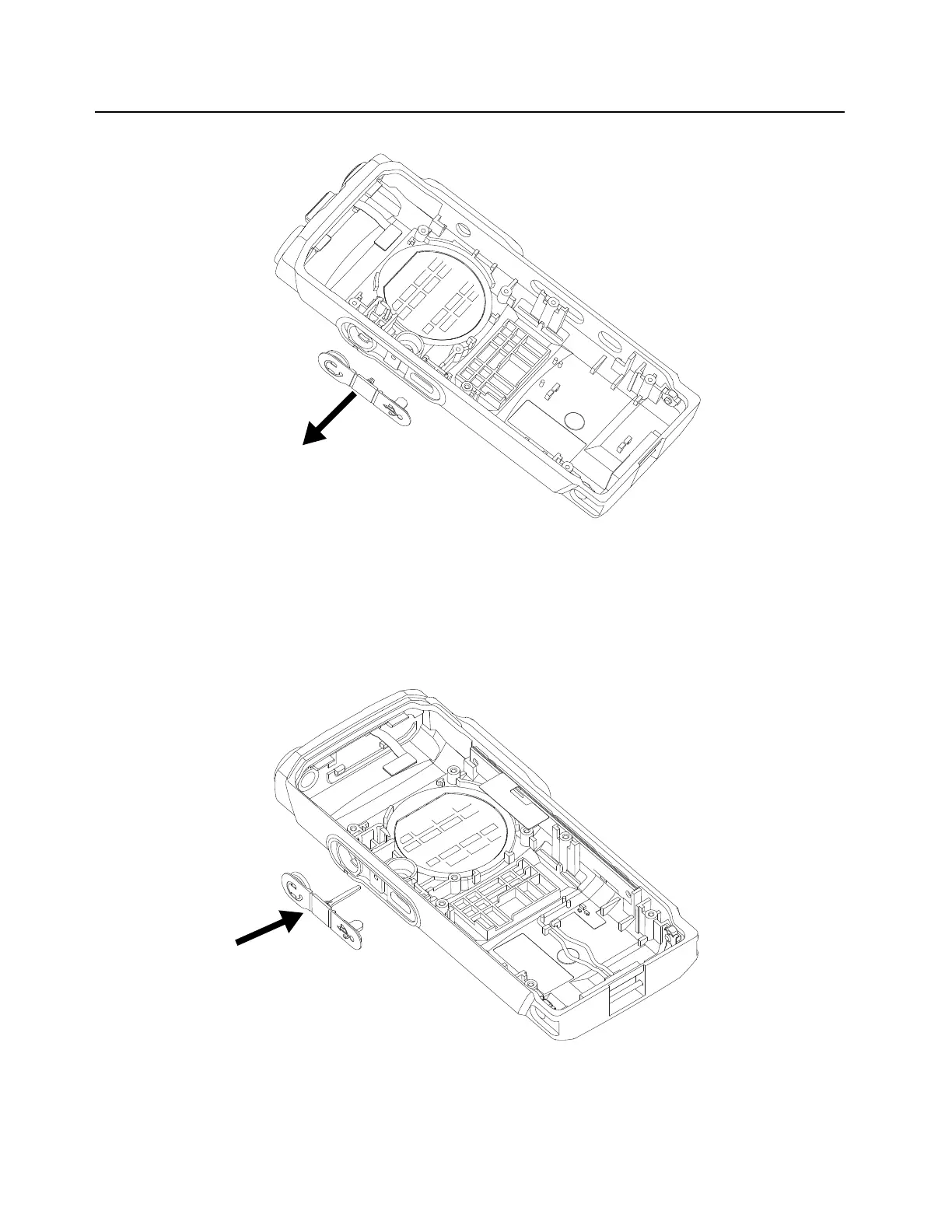

Figure 5-20. Dust Cover Removal
5.7 Radio Reassembly – Detailed
5.7.1 Dust Cover Reassembly
1. Insert the dust cover tail into the front housing middle hole openings as shown in Figure 5-21.
Figure 5-21. Dust Cover Tail Insertion
Final Draft
