Motorola SL1M - Back Housing Disassembly

Disassembly And Reassembly Procedures: Radio Disassembly – Detailed 5-7
5.6.3 Back Housing Disassembly

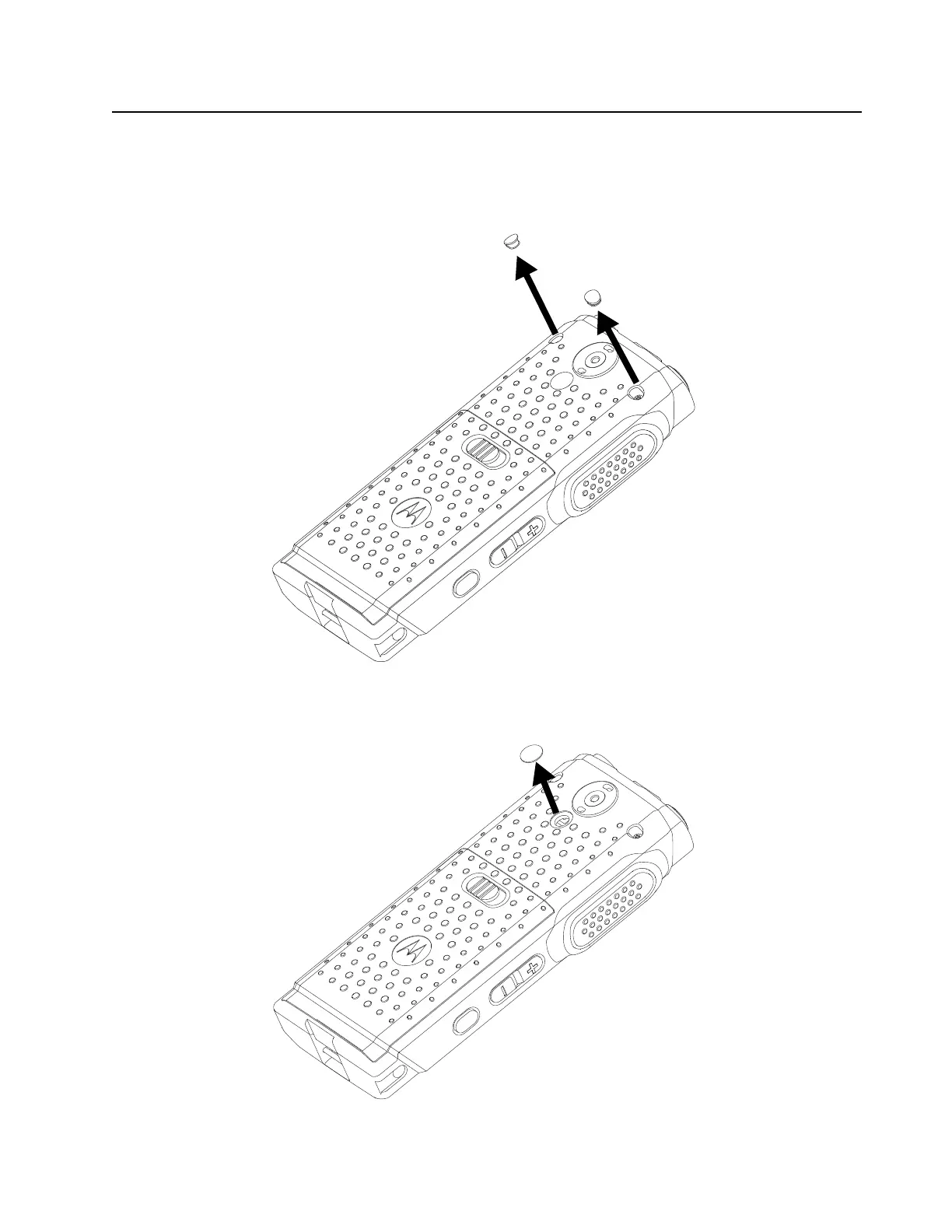

1. Remove the 2 screw plugs from the back housing as shown in Figure 5-3.
NOTE:Remove the screw plug with plastic tweezer.
Figure 5-3. Screw Plug Removal
2. Remove the RF plug from the back housing as shown in Figure 5-4.
Figure 5-4. RF Plug Removal
Final Draft
