5-18 Disassembly And Reassembly Procedures: Radio Reassembly – Detailed
5.7.3 LCD Display Reassembly
1. Insert the display module into front housing as shown in Figure 5-24.

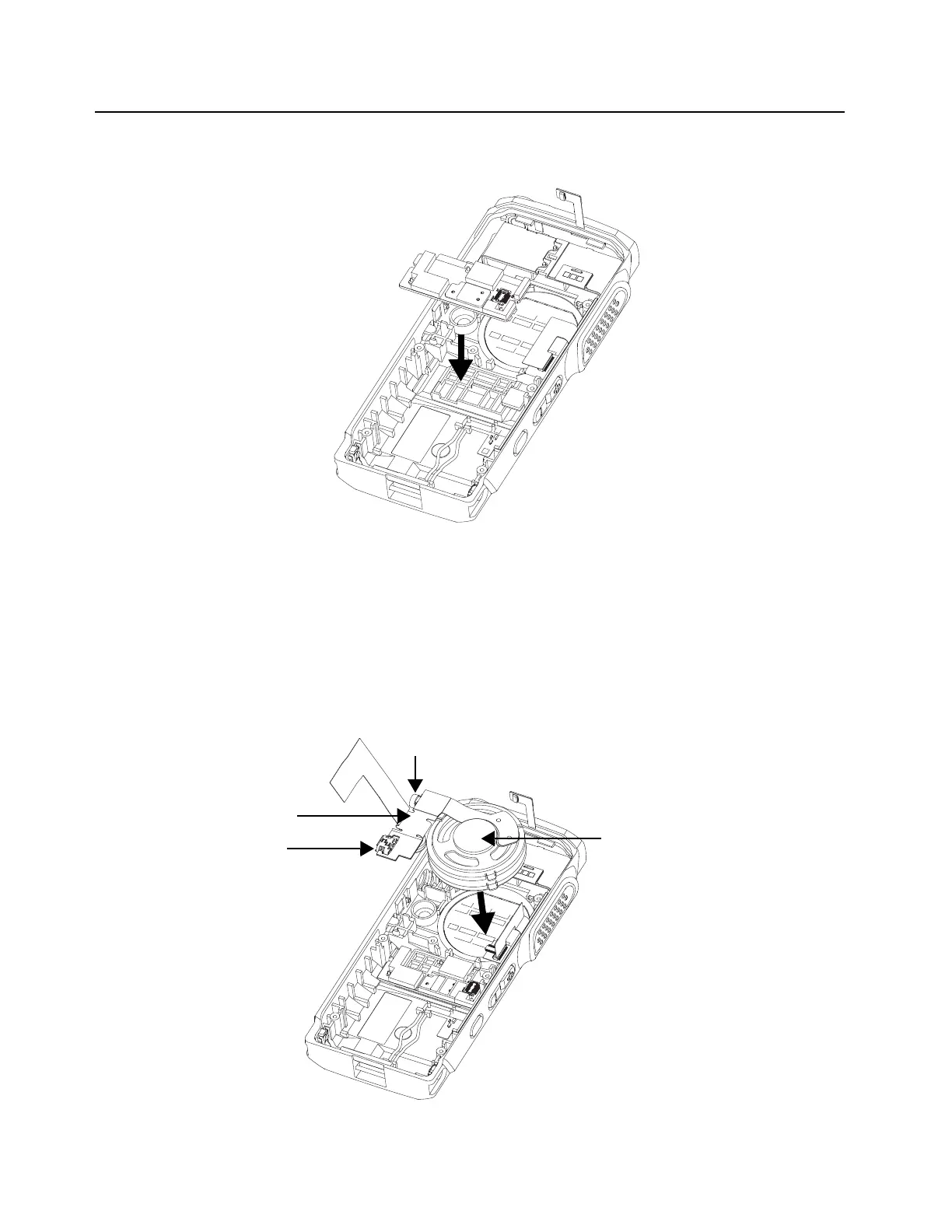

Figure 5-24. Display Module Reassembly
5.7.4 Audio Jack Flex, Micro USB Flex, Microphone (MIC), Speaker Flex, LCD
Display, and Internal Antenna Reassembly
1. Insert the Microphone Flex into its recess on the front housing.
2. Insert the speaker into the front housing.
3. Insert Micro USB Flex into the front housing.
4. Insert Audio Jack Flex into the front housing.
Figure 5-25. Speaker Reassembly
Audio Jack
Speaker
Microphone
Micro USB
