5. Remove 2 T6 screws from the display bracket. Set the screws aside for reuse
(see Figure 14).
6. Use the disassembly tool to release the latches on the sides of the display
assembly (see Figure 14).
7. Carefully lift the display bracket up and away from the display assembly.
8. To replace, align the display bracket over the display assembly.
9. Carefully and gently lower the display bracket onto the display assembly. Press
the display bracket into place so that all the latches are attached to the display
assembly.
050405o

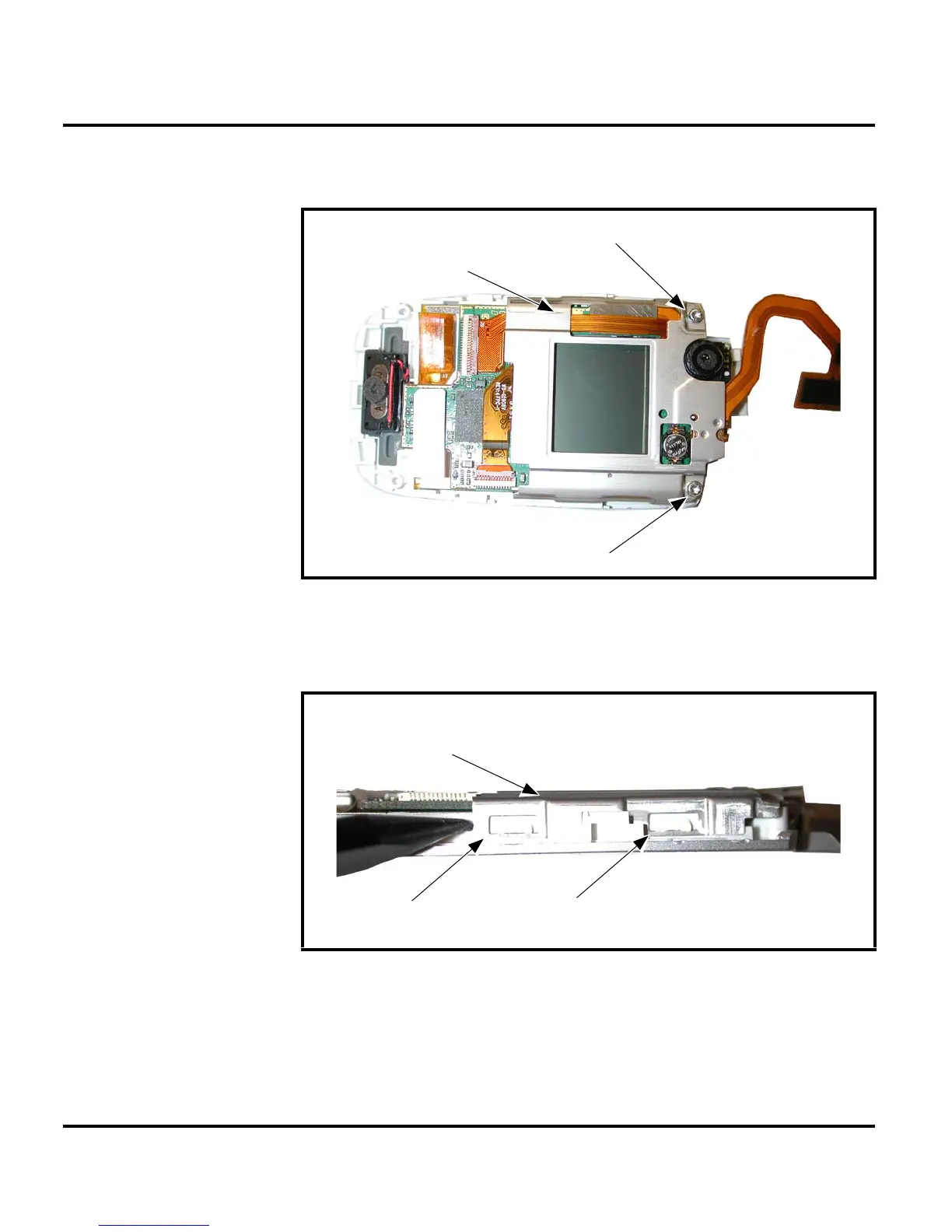

Figure 14. Removing the Flip Display Bracket Screws
050351o
Figure 15. Removing the Flip Display Assembly Bracket
Display Bracket
Bracket Screw
Bracket Screw
Display Bracket
Latch
Latch
