Motorola XT660d - Display Icons; Menu Options

2
English

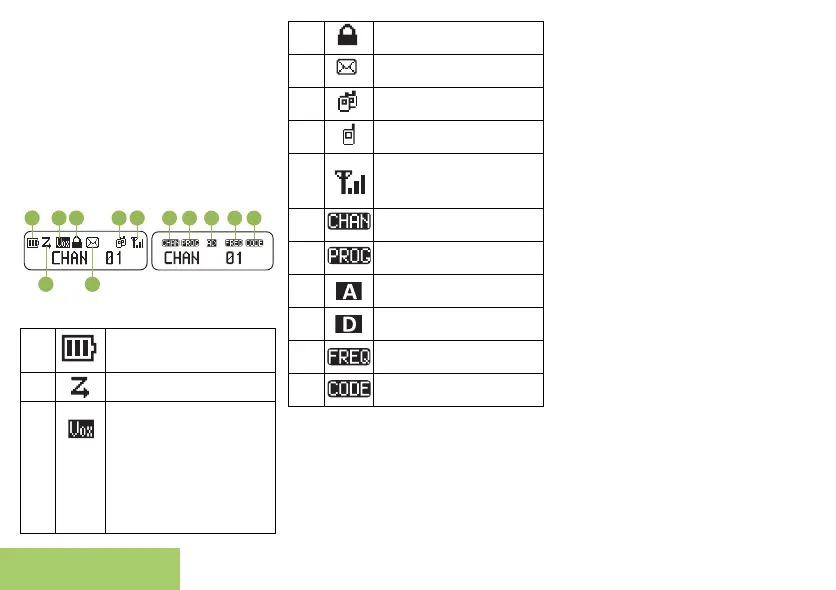

DISPLAY ICONS
Radio icons are shown on the top of the screens
as shown below.
The following are descrption of icons seen on
the screen.
Turning Radio ON/OFF
To turn ON the radio, rotate the On/Off/Volume
Knob clockwise.
To turn the radio OFF, rotate the On/Off/Volume
Knob counterclockwise until you hear a ‘click’.
Adjusting Volume
Turn the On/Off/Volume Knob clockwise to
increase the volume, or counterclockwise to
decrease the volume.
Note: Do not hold the radio too close to the ear
when it is at a high volume setting or when
adjusting the volume setting.
Menu Options
To access the radio menu, short press the
MENU button.
Press the Left or Right Navigation buttons to
toggle the menus.
At Home screen, press the Left or Right
Navigation button to display the current
frequency, code and channel index.
Selecting A Channel
To select a channel, at the Home screen, press
the navigate to left or right twice to select the
channel.
Receiving A Call
Make sure the PTT button is released and
listen for voice activity.
To respond, hold the radio vertically one to two
inches (2.5 to 5cm) from mouth. Press the PTT
button to talk; release it to listen.
Making a Call from CONTACTS menu
1 Press the Menu button and navigate to
CONTACTS.
2 Use Navigation buttons to scroll across the
list of selections available.
3 Once the radio displays the required Call ID,
press PTT button to make your call.
9. Speaker
10. Microphone
11.
Monochrome Display with Orange
backlight
12. Menu/OK and Navigation Buttons
13. Alphanumeric Keypad
14. Accessory Connector
15. Battery Latch
16. Battery
1.
The number of bars (0 – 3)
shown indicates the charge
remaining in the battery.
2. Scan is enabled.
3.
VOX/iVOX is enabled. During
activation, without VOX
accessories, the radio is in
iVOX mode, you can speak to
the radio microphone without
pressing PTT. When used
together with VOX
accessories, you can speak to
accessories microphone
without holding PTT from radio
or accessories.
8 9 10 11 12
52
431
6 7
4.
Keypad and control buttons
are locked.
5.
The radio receives at least an
unread text message.
6.i.
The radio is communicating in
a Group Call.
6.ii.
The radio is communicating in
a Private Call.
7.
This is Received Signal
Strength Indicator. The number
of bars (0 – 3) shown indicates
the receiving signal strength.
8.
This indicates the current
channel index.
9.
The radio is currently in
programming mode.
10.i.
The current channel is in
Analog mode.
10.ii.
The current channel is in
Digital mode.
11.
This indicates the current
channel frequency.
12.
This indicates the current
CTCSS/DPL code.
