Repair Section
75

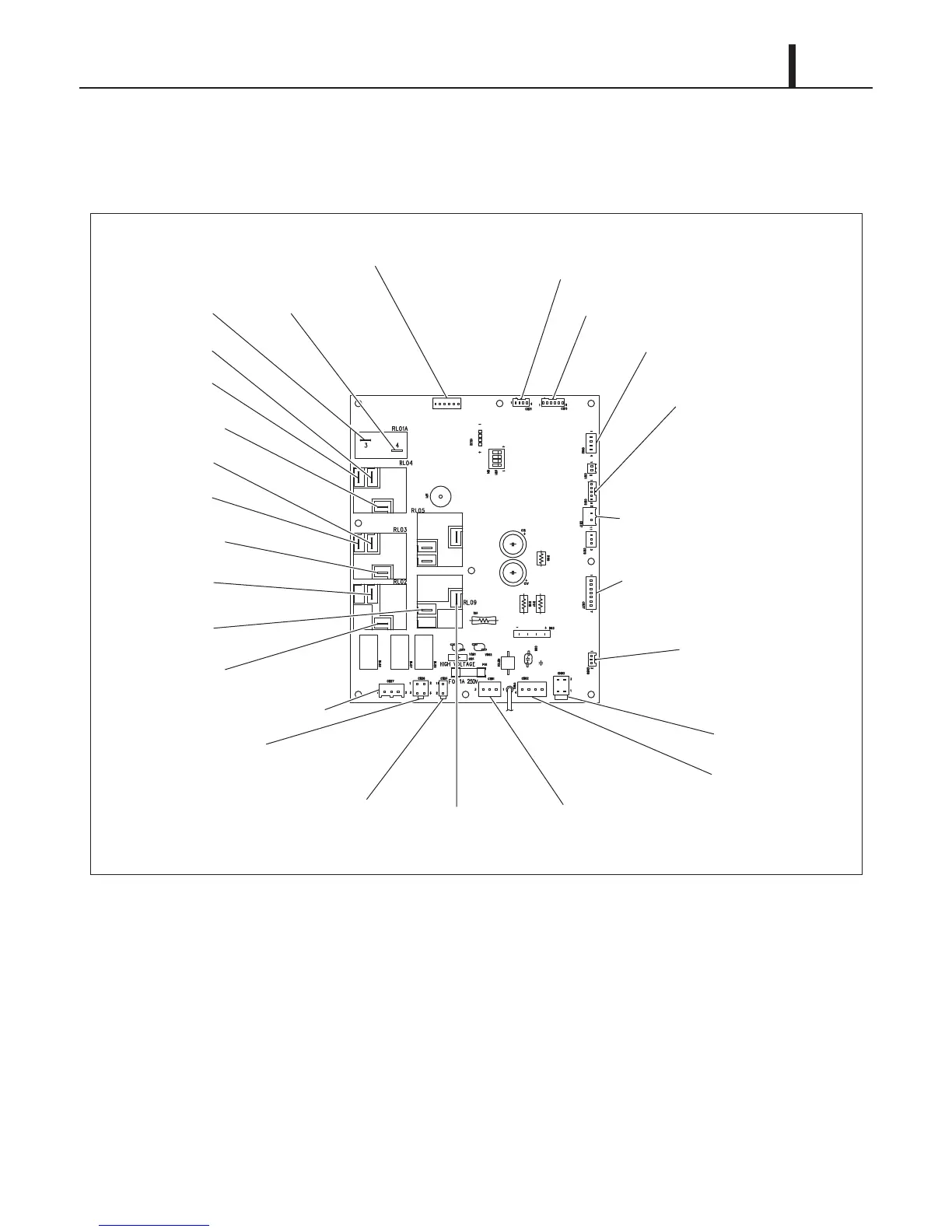

(2) Relay board
1) Remove nine (9) supports from the service panel. (See page 72.)
2) Disconnect twenty six (26) connectors from the relay board.
ILL00899-00
CN17: To Optional Condensate Pump
CN37: To Electronic Expansion Valve
CN30: Control Panel Board
CN03: To Transformer
CN02: To Transformer
CN01: To Terminal Block 1
(#R, T for Power)
RL09-COM
CN18: To Drain Switch,
High Pressure Switch
CN14: To ODS, CTS2, CTS3 Thermistors
CN12: To RTS, CTS Thermistors
CN31: To Terminal Block 2
(#GND, Rx, Tx, +5V for Serial Communication Port)
CN34: To Terminal Block 3 for Millivolt,
24VAC thermostat
RL01A-4
RL01A-3
RL04-NO
RL04-NC
RL04-COM
RL03-NO
RL03-NC
RL03-COM
RL02-NO
RL02-COM
CN27: To Outdoor Drain Pan Heater
CN25: To 4-Way Valve
CN26: To Terminal Block 2
(#OS-1, OS-2 for Warning Device)
RL09-NO
