Repair Section
76

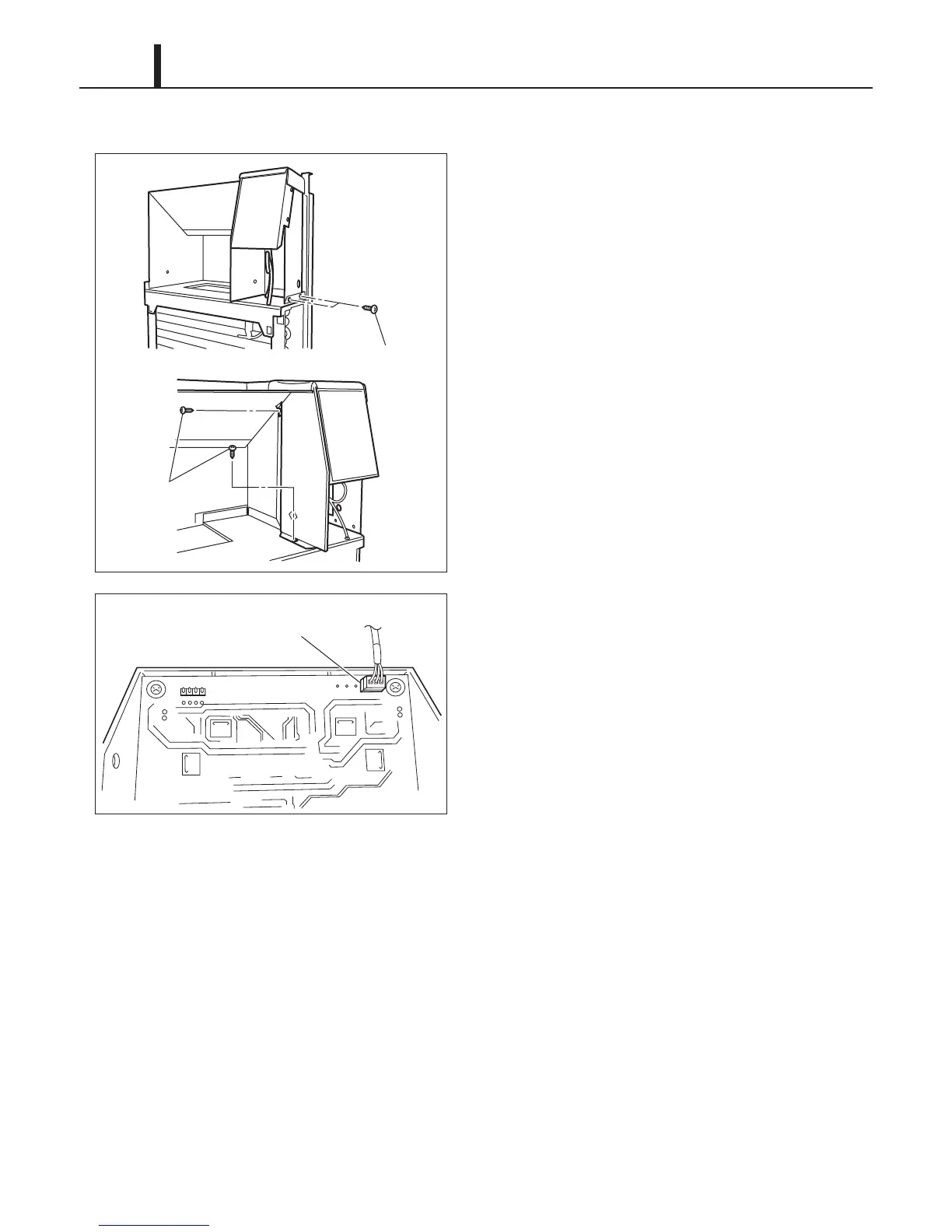

(3) Control panel
1) Remove four (4) screws from the control panel
stay.
2) Disconnect the CN2 connector from the control
board.
ILL00912-00
Screws (2)
Screws (2)
ILL00900-00
CN2 Connector
