(4) Battery replacement of control board
• If the clock is reset to initial setting "SUN 12:00AM" when the unit is powered on, it is time to
replace the battery on the control board.
1) Remove the old battery from the holder.

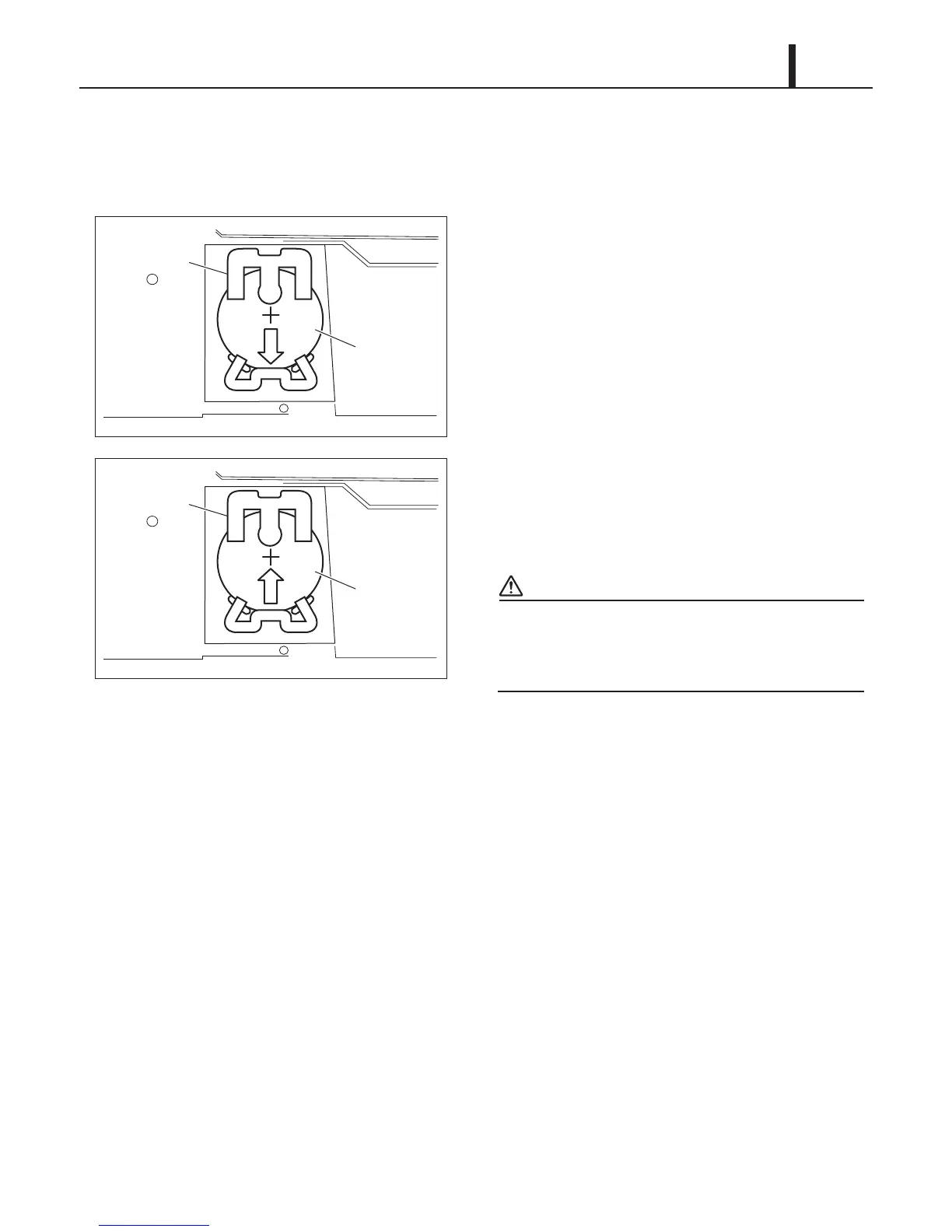

2) Insert new battery securely in the direction shown
in the diagram.
Specifications:
- Type: 3 V CR2032
CAUTION
When inserting the battery, make sure the
direction of polarity (plus/minus) is correct as
shown.
ILL00902-00
Old Battery
Holder
<Control Board>
ILL00903-00
Holder
<Control Board>
New Battery
To Next Page
