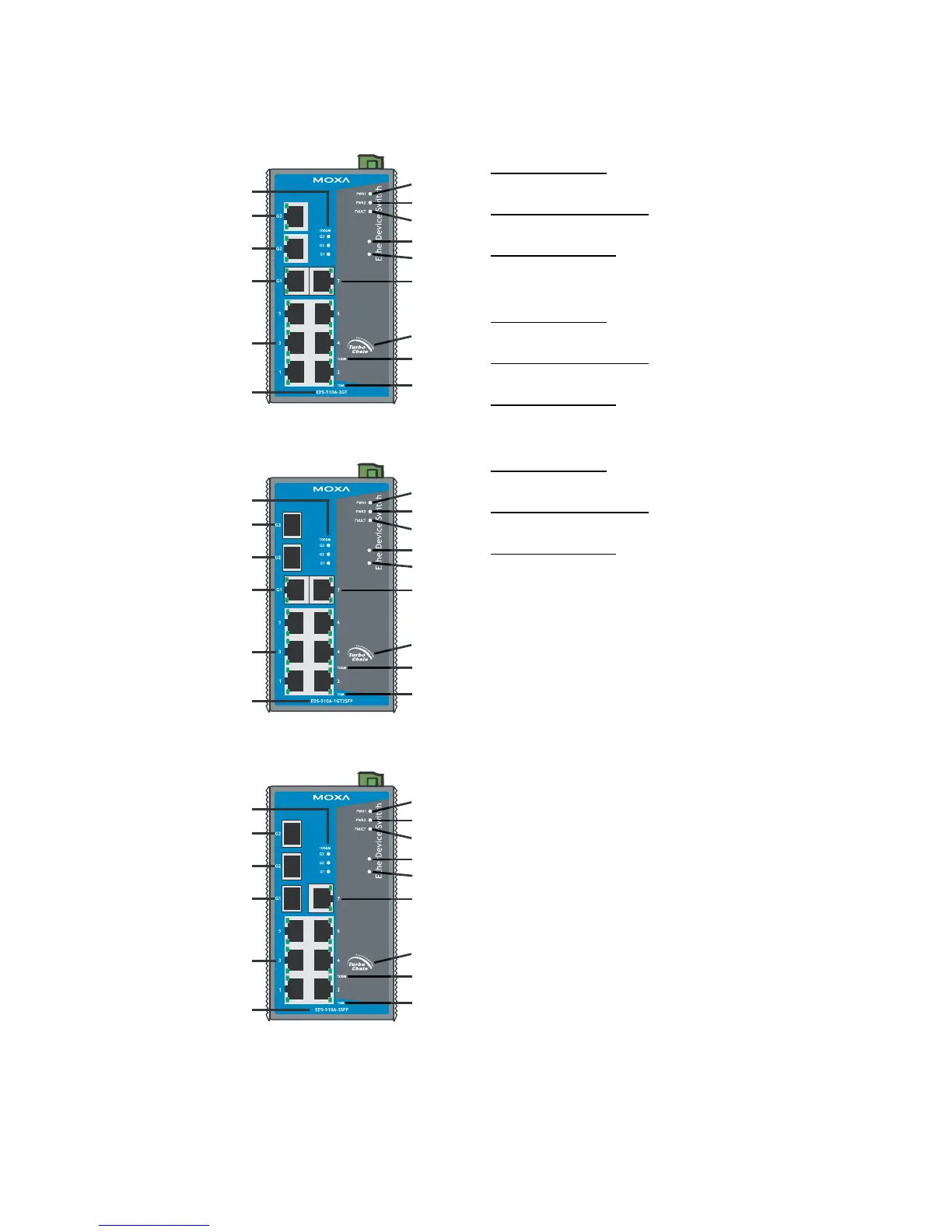

Panel Views of EDS-510A
EDS-510A-1GT2SFP
Front Panel View
EDS-510A-3GT
Front Panel View
EDS-510A-3SFP
Front Panel View
7
6
8
9
1
14
1
11
13
12
2
3
4
5
10
7
6
8
9
1
14
1
11
13
12
2
3
4
5
10
7
6
8
9
1
14
1
11
13
12
2
3
4
5
10
MSTR/HEAD
CPLR/TAILD
MSTR/HEAD
CPLR/TAILD
MSTR/HEAD
CPLR/TAILD
1. 1 to 7: 10/100BaseT(X) port
2. G1:
EDS-510A-3GT
10/100/1000BaseT(X) port
EDS-510A-1GT2SFP
10/100/1000BaseT(X) port
EDS-510A-3SFP
1000BaseSX/LX/LHX/ZX port
3. G2:
EDS-510A-3GT
10/100/1000BaseT(X) port
EDS-510A-1GT2SFP
1000BaseSX/LX/LHX/ZX port
EDS-510A-3SFP
1000BaseSX/LX/LHX/ZX port
4. G3:
EDS-510A-3GT
10/100/1000BaseT(X) port
EDS-510A-1GT2SFP
1000BaseSX/LX/LHX/ZX port
EDS-510A-3SFP
1000BaseSX/LX/LHX/ZX port
5. G1, G2, G3: LED indicators for
1000 Mbps ports
6. PWR1: LED for power input 1
7. PWR2: LED for power input 2
8. FAULT: LED indicator
9. MSTR/HEAD: LED indicator
10. CPLR/TAIL: LED indicator
11. Turbo Chain logo
12. 100M: LED indicator for TP port
13. 10M: LED indicator for TP port
14. Model Name
