- 5 -
DIN-Rail Mounting
The aluminum DIN-Rail attachment plate should already be fixed to the back
panel of the EDS-510A when you take it out of the box. If you need to
reattach the DIN-Rail attachment plate to the EDS-510A, make sure the stiff
metal spring is situated towards the top, as shown by the following figures.

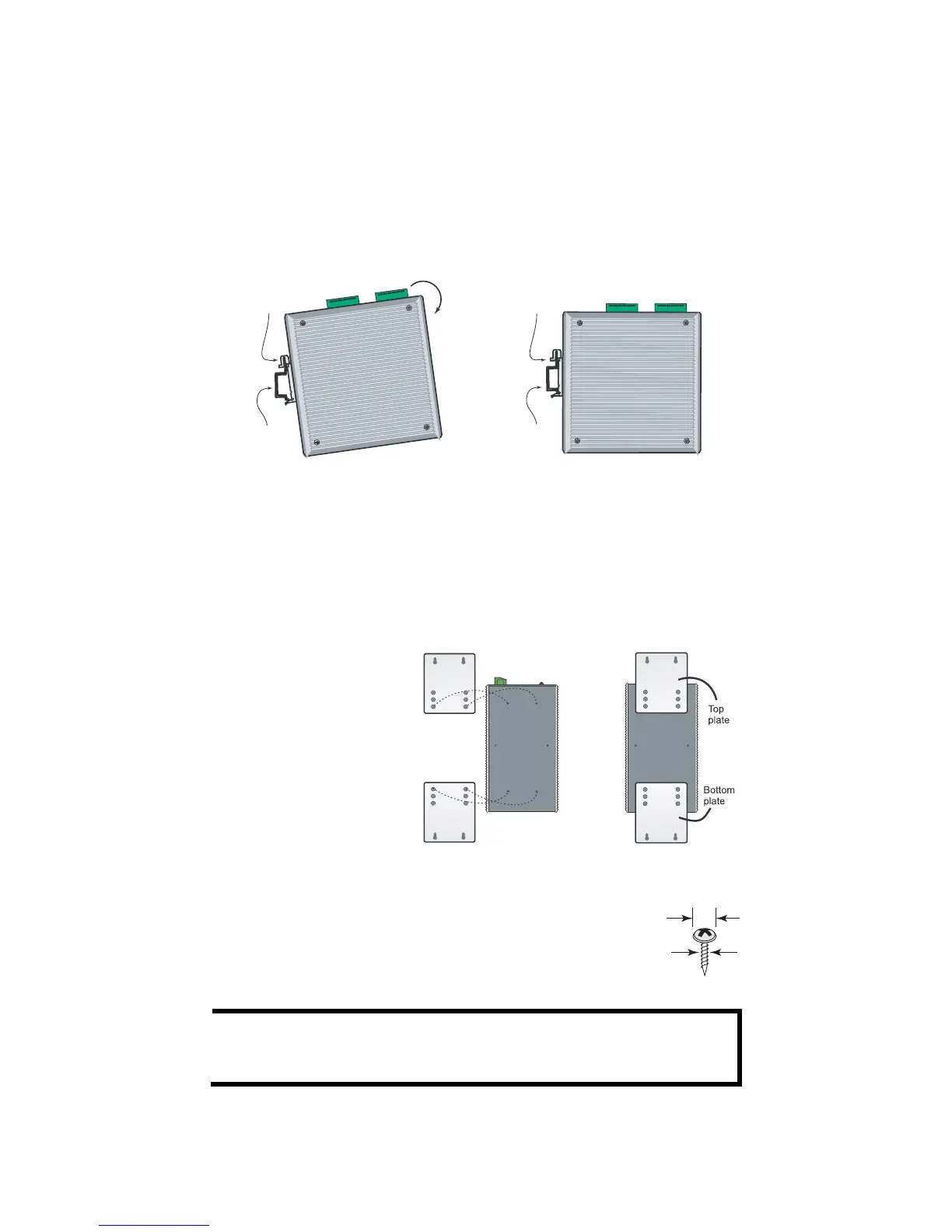

STEP 1—Insert the top of the
DIN-Rail into the slot just below the
stiff metal spring.
STEP 2—The DIN-Rail attachment
unit will snap into place as shown in
the following illustration.
metal
spring
DIN-Rail
metal
spring
DIN-Rail
To remove the EDS-510A from the DIN-Rail, simply reverse Steps 1 and 2
above.
Wall Mounting (Optional)
For some applications, you will find it convenient to mount Moxa EDS-510A
on the wall, as shown in the following illustrations:
STEP 1—Remove the
aluminum DIN-Rail
attachment plate from the rear
panel of the EDS-510A, and
then attach the wall mount
plates with M3 screws, as
shown in the figure at the
right.
Ö
STEP 2—Mounting the EDS-510A on the wall requires 4
screws. Use the EDS-510A, with wall mount plates attached, as a
guide to mark the correct locations of the 4 screws. The heads of
the screws should be less than 6.0 mm in diameter, and the shafts
should be less than 3.5 mm in diameter, as shown in the figure on
at right.
6.0 mm
3.5 mm
NOTE
Before tightening the screws into the wall, make sure the screw
head and shank size are suitable by inserting the screw through
one of the keyhole-shaped apertures of the Wall Mounting Plates.
