Moxa Technologies ioLogik 2542 User Manual

ioLogik 2500 Series Installation
2-5

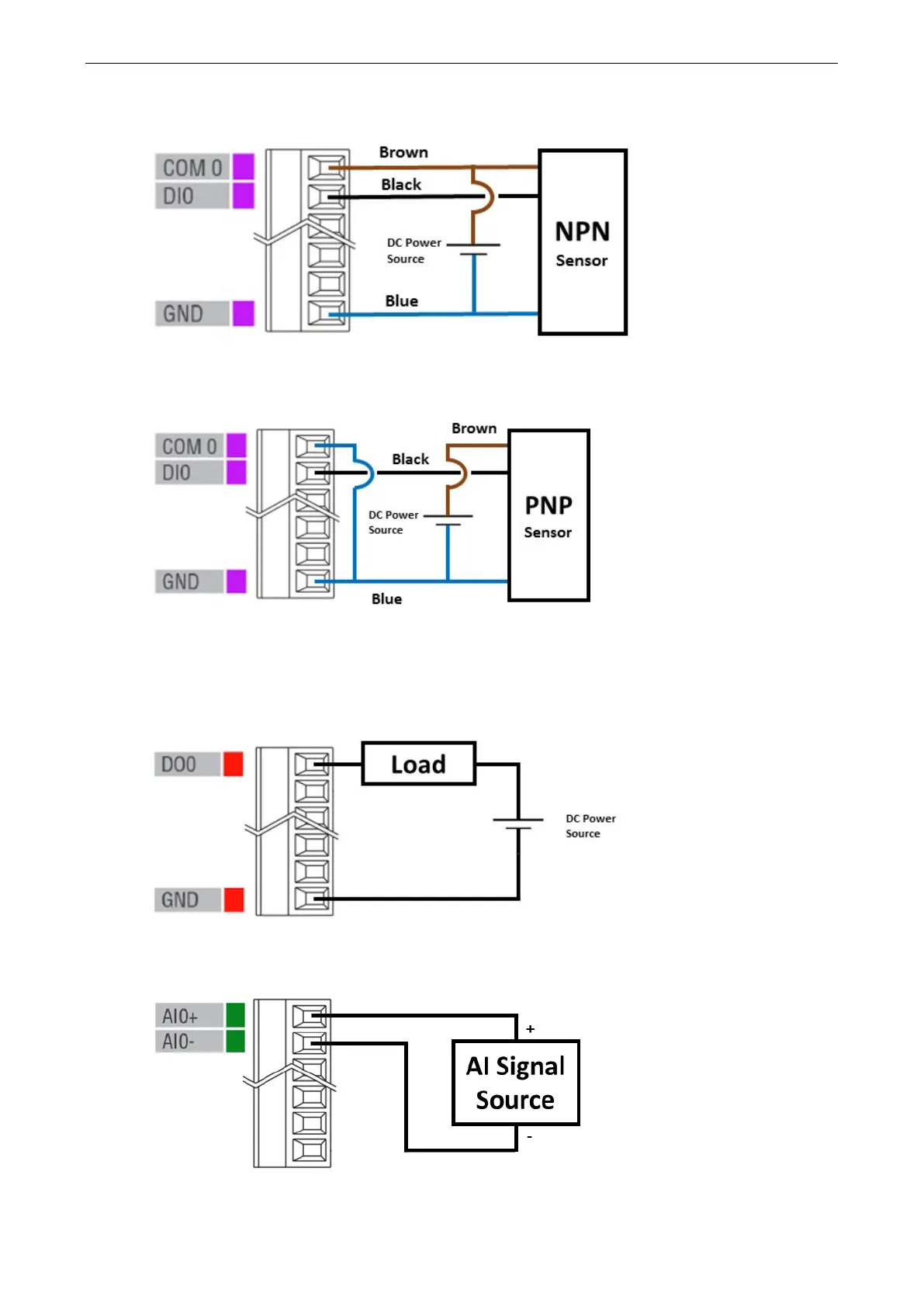

DI Wet Contact (NPN)
DI Wet Contact (PNP)
DO Channel (Sink Type)
The DIO channels of this series can be used as DI channels or DO channels. The wiring diagram for DO
channels, which are sink type, is shown below:
AI Channel

Moxa Technologies ioLogik 2542 Specifications

General

Product Name	ioLogik 2542
Manufacturer	Moxa Technologies
Category	I/O Systems
Digital Input Type	Dry Contact
Digital Output Type	Relay
Ethernet Ports	2
Power Input	12 to 48 VDC
Storage Temperature	-40 to 85 °C
Protection	IP30
Mounting	DIN-Rail
Protocols	Modbus TCP, MQTT
Operating Temperature	-40 to 75°C
Humidity	5 to 95% (non-condensing)
