NPort 6000 Series Software Installation/Configuration
Reverse Real COM Mode
After you install NPort Windows Driver Manager, you can set up the NPort 6000’s serial ports as remote COM
ports for your PC host. Make sure that the serial port(s) on your NPort 6000 are set to Reverse Real COM mode
when mapping COM ports with the NPort Windows Driver Manager.

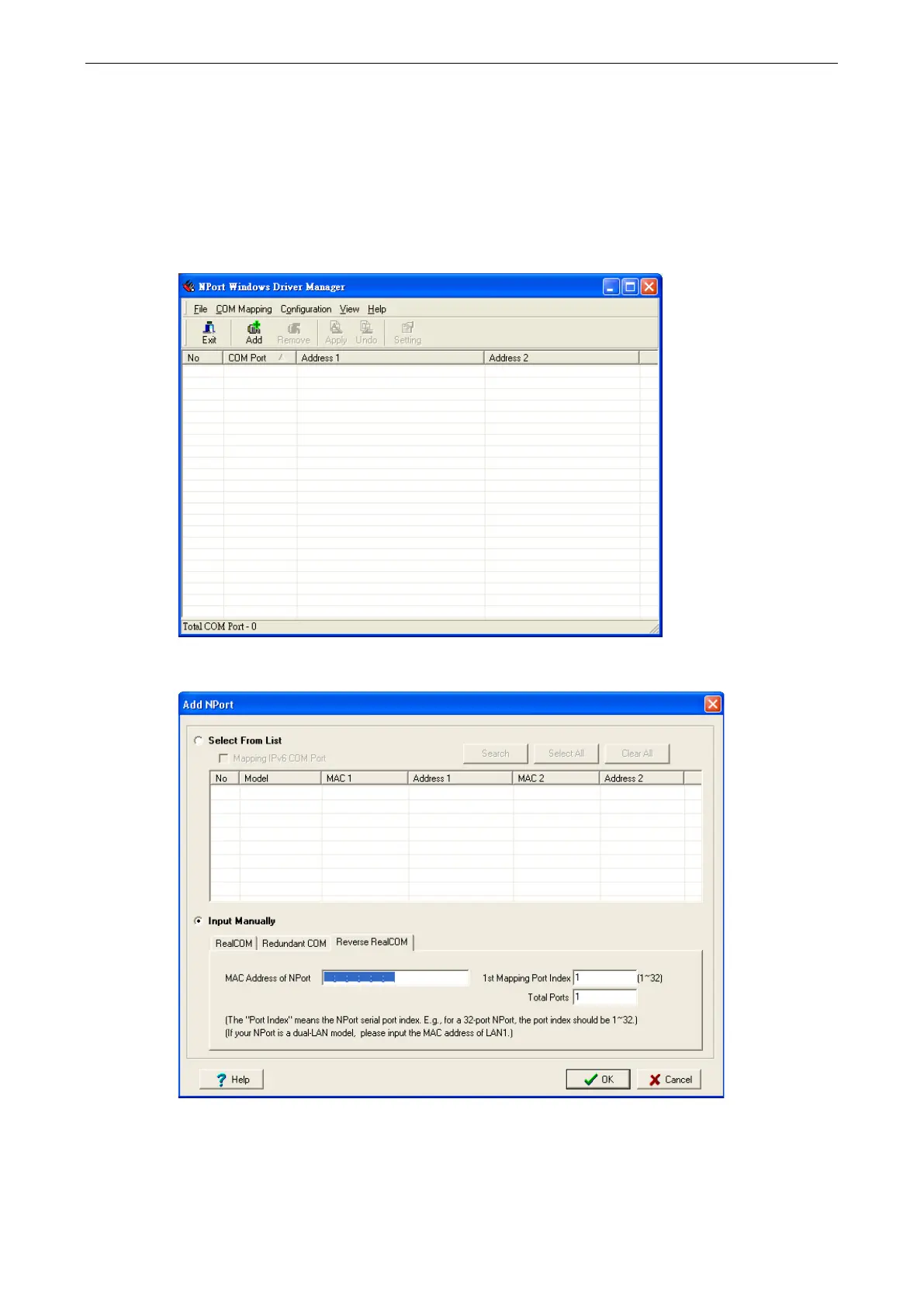

1. Go to Start NPort Windows Driver Manager NPort Windows Driver Manager to start the COM
mapping utility.
2. Click the Add icon.
3. Select Input Manually and click Reverse Real COM tab; then, manually enter the NPort MAC Address,
1st Mapping Port Index, and Total Ports. Click OK to proceed to the next step.
Depending on your application, it could be that only some ports will be set up for Reverse Real COM mode.
The user should assign which ports of which NPorts will be mapped in Reverse RealCOM mode.
