UC-8410A HW UM Hardware Connection Description
4-11

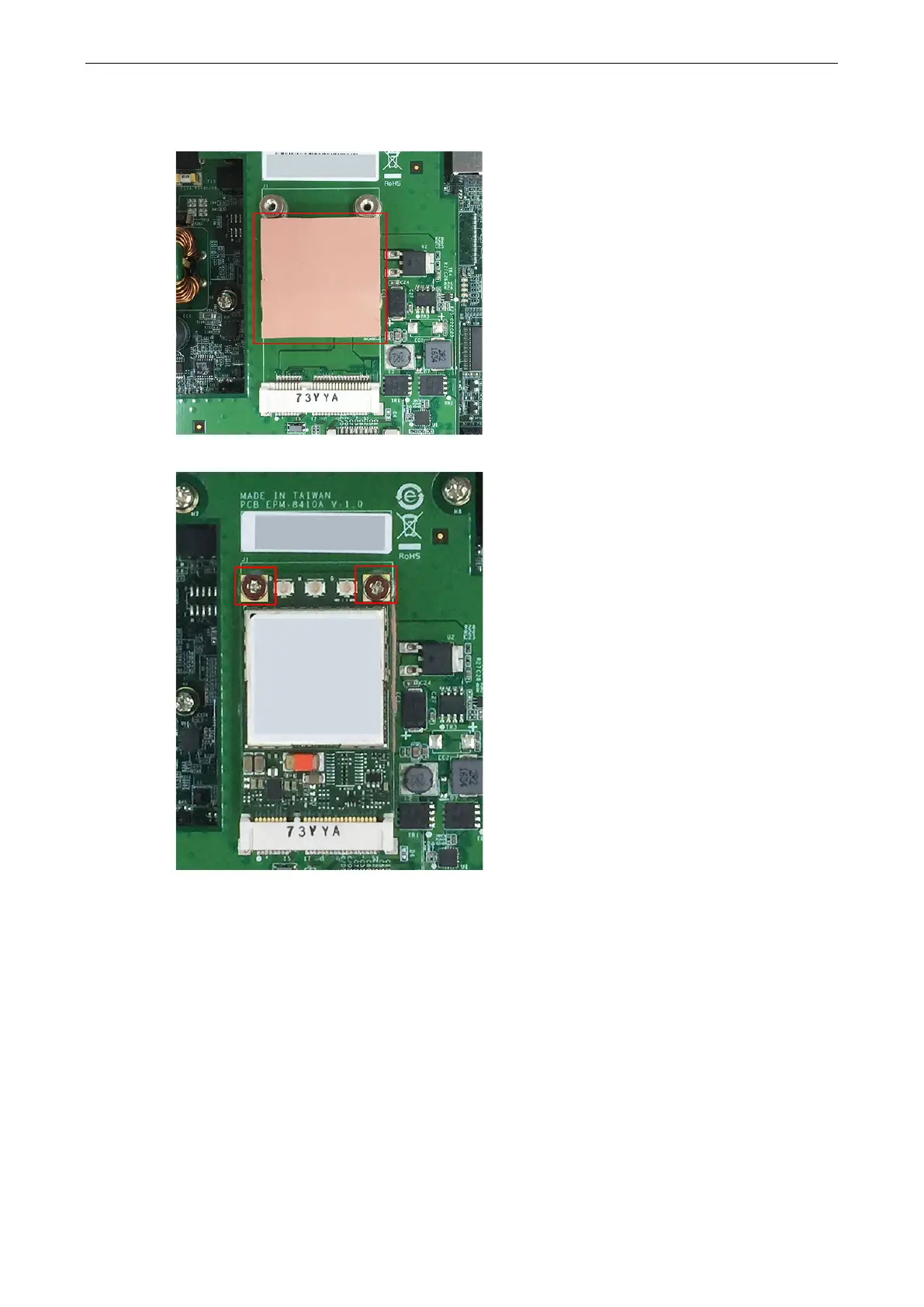

2. Stick one of the thermal pad on the module socket.
Remove the plastic cover on one side of the thermal pad and the blue cover on the other side before sticking
the thermal pad to the socket.
3. Insert the module into the socket and fasten the two screws to secure the module to the socket.
