Installation, Operation & Maintenance Manual
13
Optional Tandem Cable - for connecting 2-5 steam generators in tandem
Initial Start-Up and Checkout
1. Turn on control. Follow specific instruction sheet provided with controls.
2. Steam will begin to appear in 5 minutes at the steam head. Steam will shut off when desired temperature is reached and will automatical-
ly resume when room temperature drops below set point.
3.
Steam will shut off automatically when control counts down to zero.
T
o shut steam off manually
, turn control OFF
. To clear steam from
enclosure area, turn shower on before opening door.
4. If unit does not start and control does not turn ON (control display does not light up) then turn breaker off for 20 seconds and try again.
Optional Equipment
Refer to specific instruction sheets for installation, operation and maintenance of optional equipment and accessories such as
TEMPO, TEMPO/PLUS, TEMPO/EXT, MSTS.
Maintenance
MrSteam steambath generators require little maintenance. Other than periodic draining, maintenance procedures are minimal. Every 2 months,
or more of
ten in “hard” water areas, the manual drain valve should be opened fully flushing out accumulated materials, salts and other particles
which are natural by-products of boiling water.
Note: Flush a minimum of five hours after the control has been turned off to insure that the water has cooled.
Draining immediately after a steam cycle may expose PVC and other piping to high temperature water. Check local codes.
The unit will refill automatically when the control is activated again. In areas of hard water, a MrSteam autoflush system is recommended for
generator longevity.
O

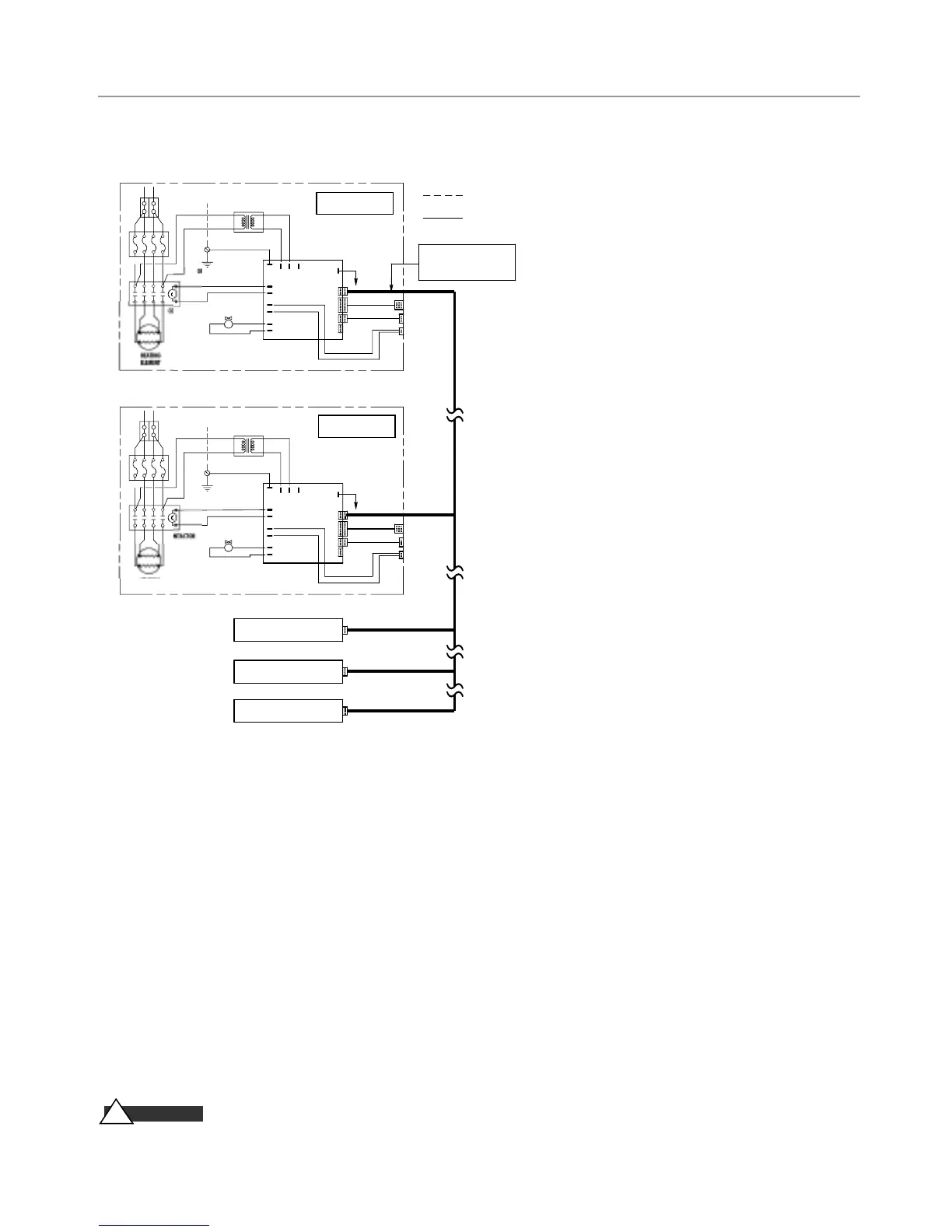

PTIONAL TANDEM CABLE
FOR 2-5 GENERATORS
Length is 30 ft.
P
N 103917
3, 4 OR 5 MR STEAM UNITS
S
WATER FEED
S
OLENOID
V
ALVE
LIGHT
BLUE
ONTACTOR
CONTROL BOARD
GRAY
WHITE
T
RANSFORMER
POWER INPUT
L1 L2
GREEN
FUSES
ROUND
WHITE
BLACK
BLACK WHITE
DARK
B
LUE
TO
PROBE
Tempo Control
Tempo/Plus Control
Tempo/Ext
AutoFlush
PLUG THIS END
TO MASTER UNIT
F
ACTORY
WIRING
F
IELD
WIRING
PURPLE
TO THIRD UNIT
TO FOURTH UNIT
TO FIFTH UNIT
S
HEATING
ELEMENT
CONTACTOR
WATER FEED
SOLENOID
VALVE
CONTROL BOARD
WHITE
GRAY
T
RANSFORMER
POWER INPUT
L1 L2
PURPLE
GREEN
FUSES
GROUND
LIGHT
BLUE
W
HITE
B
LACK
BLACK
WHITE
DARK
BLUE
TO
PROBE
AutoFlush
SECOND UNIT
M
ASTER UNIT
!
W
ARNING
