Installation, Operation & Maintenance Manual
5
MS Super 4T, 5T, 6T Typical Configuration
Installation Instructions for Models:
MS-Super 4T, MS-Super 5T and MS-Super 6T
1. Install each steam generator as in a single installation.
Install generators as close as practical to each other,
not exceeding 12 feet. The interconnecting cable length is 12
feet.
2. IMPORTANT NOTE: Power must be disconnected at the main
electrical supply. Remove steam generator covers. Retain screws
and covers for reuse.
3. Connect the TEMPO/PLUS control to either unit per instructions
supplied with the TEMPO/PLUS control (see pages 20-29).
4. Remove one knock-out on each generator as shown.
Insert the ends of interconnecting cable provided
(PN 103904) through the knock-outs as shown in Diagram A.
Connect each end to the printed circuit board connector labeled
"TANDEM" as shown.
5. Prevent the interconnecting cable from contacting hot surfaces
such as steam outlet, safety valve and the like.
6. Connect separate plumbing and power supplies for
each unit. Replace covers with cover screws.

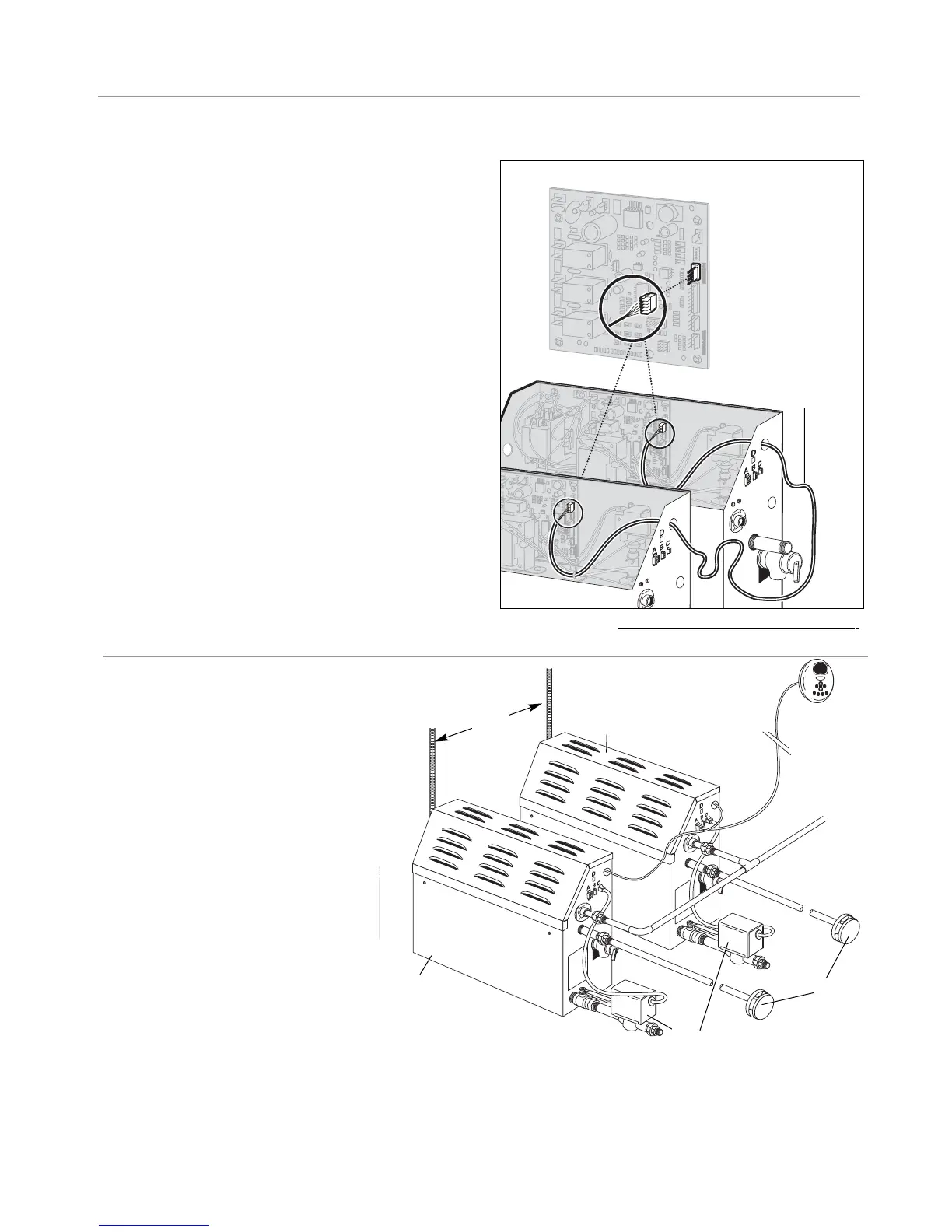

Diagram A
Printed Circuit Board
Component shown
enlarged for illustrative
purpose.
Interconnecting
Cable PN: 103904
NOTE: FOR ILLUSTRA
TIVE PURPOSES ONLY.
Units shown prior to plumbing and installation.
Diagram B
Assembled and Installed
MS Super 4T, 5T, 6T
Typical Installation shown
with Optional AutoFlush
Provide unions as required to facilitate
installation and disconnection of piping
Primary Unit
Secondary Unit
TEMPO/PLUS
Control
Optional AutoFlush, see
AutoFlush Installation page 14
Steam Heads
NOTE: For illustrative purposes only. Consult with qualified designer,
architect or contractor for steam room construction details.
Power
Supply
