mr
.
steamsteambaths
®
tempo controls
21

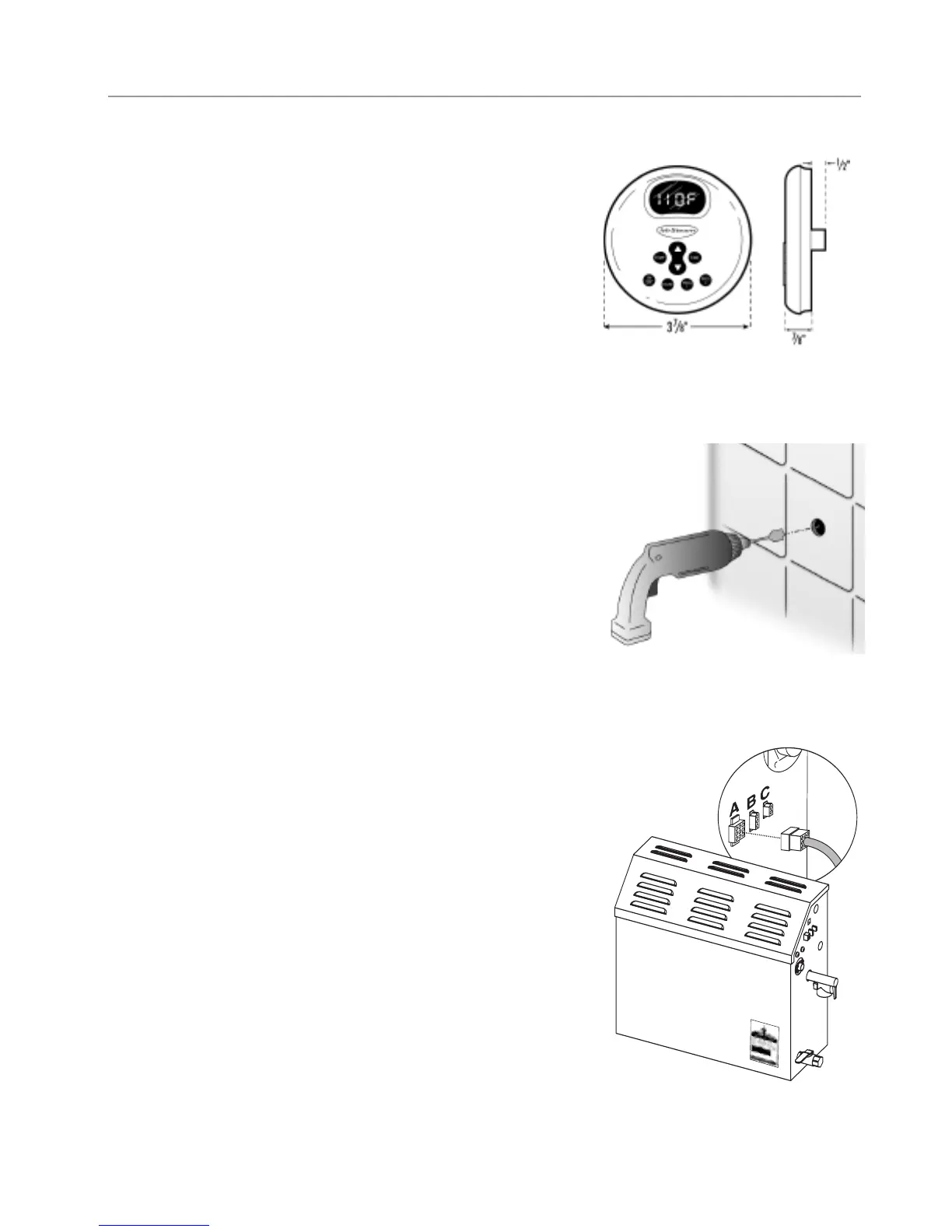

Dimensional Information for Tempo
®
& Tempo/Plus
™
BOX CONTENTS:
• TEMPO or TEMPO/PLUS Control
• Control Cable (30 ft.)
• Steam Head
• Tube of Silicon Sealant
• Owner's Manual
Installation Instructions for Tempo® & Tempo/Plus™
IMPORTANT:
Turn power to the steam generator OFF before installing the
control. Failure to turn the power off will result in an inoperable control.
Step 1
Determine the desired installation location of the control. The Tempo and
Tempo/Plus controls are designed to be installed inside or outside the steam
room as a matter of personal preference. If the control is installed inside the
steamroom the control must be located:
• 4-5 feet above the floor
• away from the steamhead and not exposed to direct steam emission
• on a vertical wall
The control cable length is 30 feet. Insure that the control and/or steam gener-
ator are located accordingly. Contact a MrSteam technical service representa-
tive if a longer cable is required.
If the control is installed outside the steam room a Remote
Temperature Probe
Part Number MSTS must be installed inside the steam room.
Insure MrSteam steam generator is TEMPO compatible and has a serial number
355500 or higher.
IMPORTANT:
See installation instructions supplied with the temperature
Probe before rough-in or installation of the control.
Step 2
Make a one-inch diameter hole in the desired control location (Diagram 1).
Do not oversize or undersize the hole.
Step 3
Route the control cable (provided with the control) from the wall cutout to
the steam generator
.
Locate the end marked "GENERA
TOR END" at the steam
generator. Connect the 5/8" square connector to the steam generator connec-
tor '
A' as shown in Diagram 2.
NO
TE:
The connector is keyed
IMPORTANT:
Do not strain, staple, pinch or otherwise damage the control
cable.
Route cable as required to permit replacement.
DIAGRAM 1
DIAGRAM 2
