Installation Instructions for Tempo
®
& Tempo/Plus
™
Step 4
Firmly connect the connector near the "CONTROL END"
marking to the back of the control. Turn on power to the
steam generator and test the control to verify correct
connections. Test per the instructions on page 23. Proceed
with installation and verification of proper control func-
tion.
IMPORTANT:
Turn power to the steam generator OFF
before installing the control. Failure to turn the power off
will result in an inoperable control.
Step 5
Remove & discard peel-off paper to expose
adhesive liner as shown in Diagram 3.
Step 6
Run a bead of silicone (provided) as shown to the
C shaped groove as shown in Diagram 4.
IMPORTANT:
Do not apply excessive amounts of sili-
cone. Do not apply silicone to any other parts of the con-
trol including the adhesive gasket.
Step 7
Insure the mounting surface is clean and dry as required
for good adhesion. Apply silicone into the hole in the wall
as required to create a moisture seal.
Hold the control with the LED display in the 12 o'clock
position and press the control against the wall until the
adhesive sticks and holds firmly as shown in Diagram 5.
IMPORT
ANT
:
T
wo registration marks are provided to
facilitate level installation.
The marks are located at the 3
o'clock and 6 o'clock positions on the back side of the
control. Use a level as required.

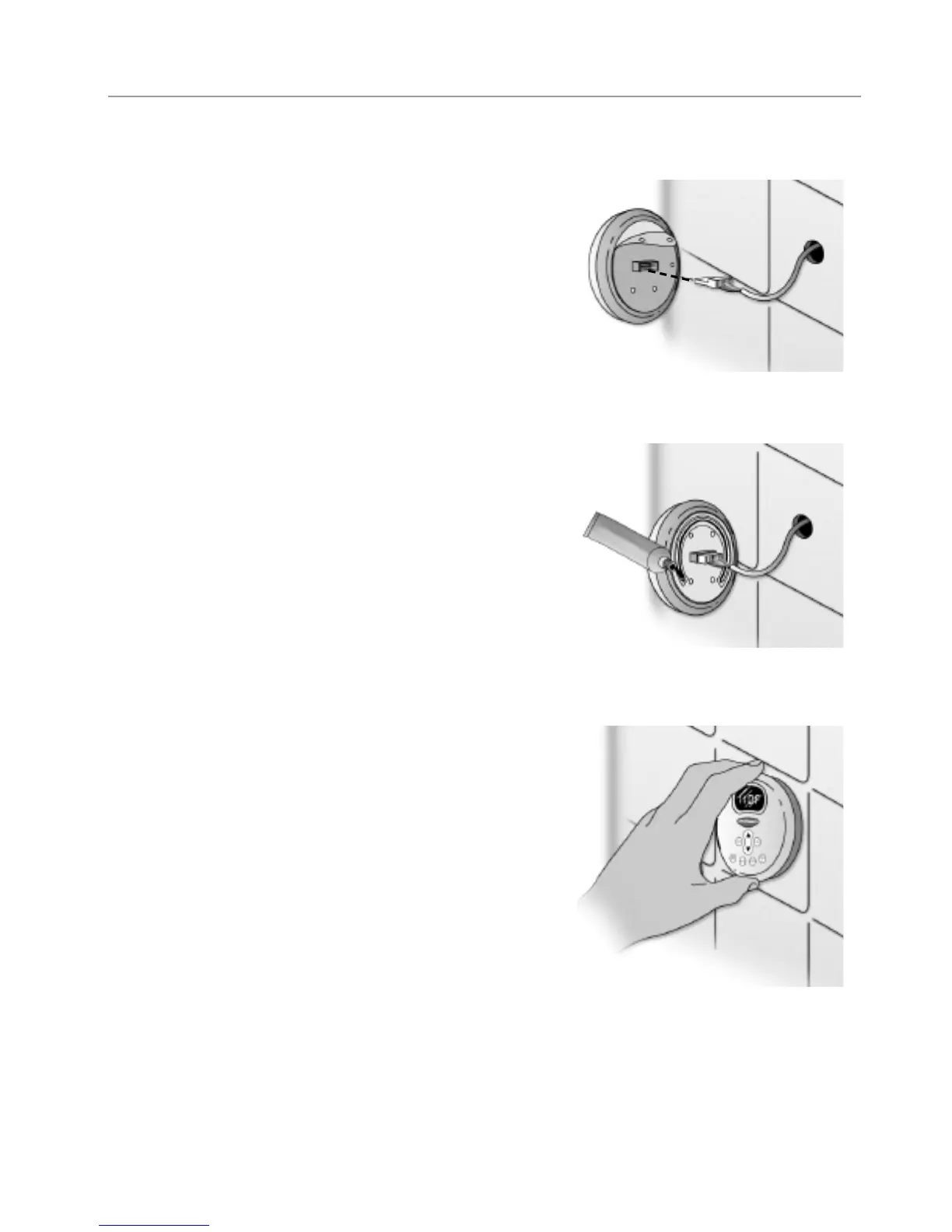

DIAGRAM 3
DIAGRAM 4
DIA
GRAM 5
SILICONE
