Outdoor Unit Installation
Installation Instructions - Outdoor Unit
Step 1: Selecting an Installation Location
Before installing the outdoor unit, you must choose
an appropriate location. Use the following guidelines
to help you select an appropriate location.
Proper installation locations should meet
following guidelines:
Meets all spatial requirements shown in the
illustration above (Fig. 6.1)
Good air circulation and ventilation
Firm and solid location that can support the
unit and will not cause vibration
Noise from the unit will not disturb others
Protected from prolonged periods of
exposure to direct sunlight or rain
If installed in an area where snowfall is
expected, take appropriate measures to
prevent ice buildup and coil damage.
DO NOT install unit in the following locations:
Near an obstacle that will block air inlets
and outlets.
Near a public street, crowded areas, or
where noise from the unit will disturb others.
Near animals or plants that could be
harmed by hot air discharge.
Near any source of combustible gas.
In a location that is exposed to large
amounts of dust.
In a location exposed to excessive amounts
of salty air.
In a location that exposes the unit to large
amounts of forced water.

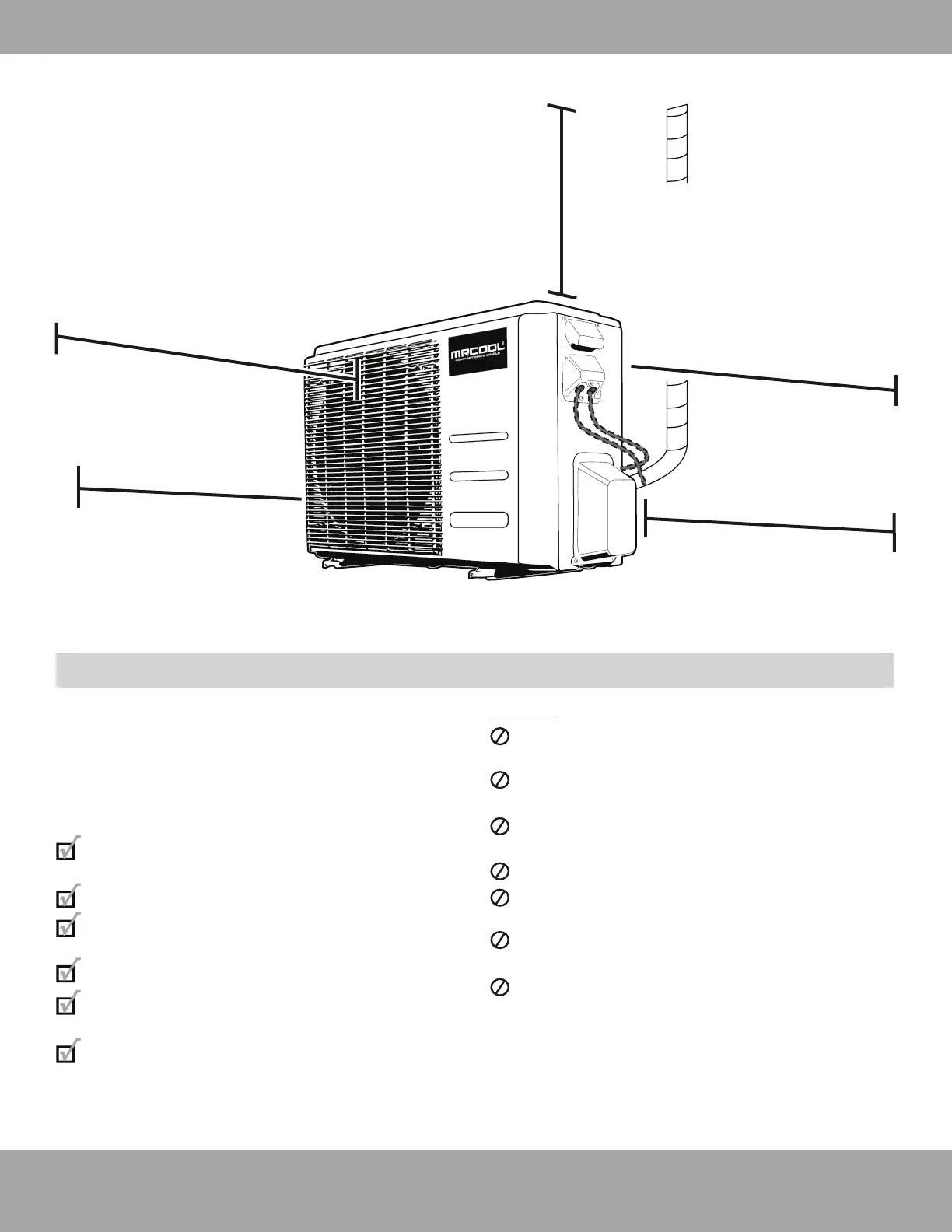

Fig. 6.1
Minimum Clearance
above unit:
24 in (60 cm)
Minimum Clearance
on the left side of
unit: 12 in (30 cm)
Minimum Clearance
on the right side of
the unit: 24 in (60 cm)
Minimum Clearance
in front of the unit:
79 in (200 cm)
Minimum Clearance
between the back of
the unit and wall:
**Ground Installed:
12 in (30 cm)
**Bracket Installed:
6 in (15 cm)
NOTE: Install the unit by following local codes and regulations, these may slightly differ
between regions.
