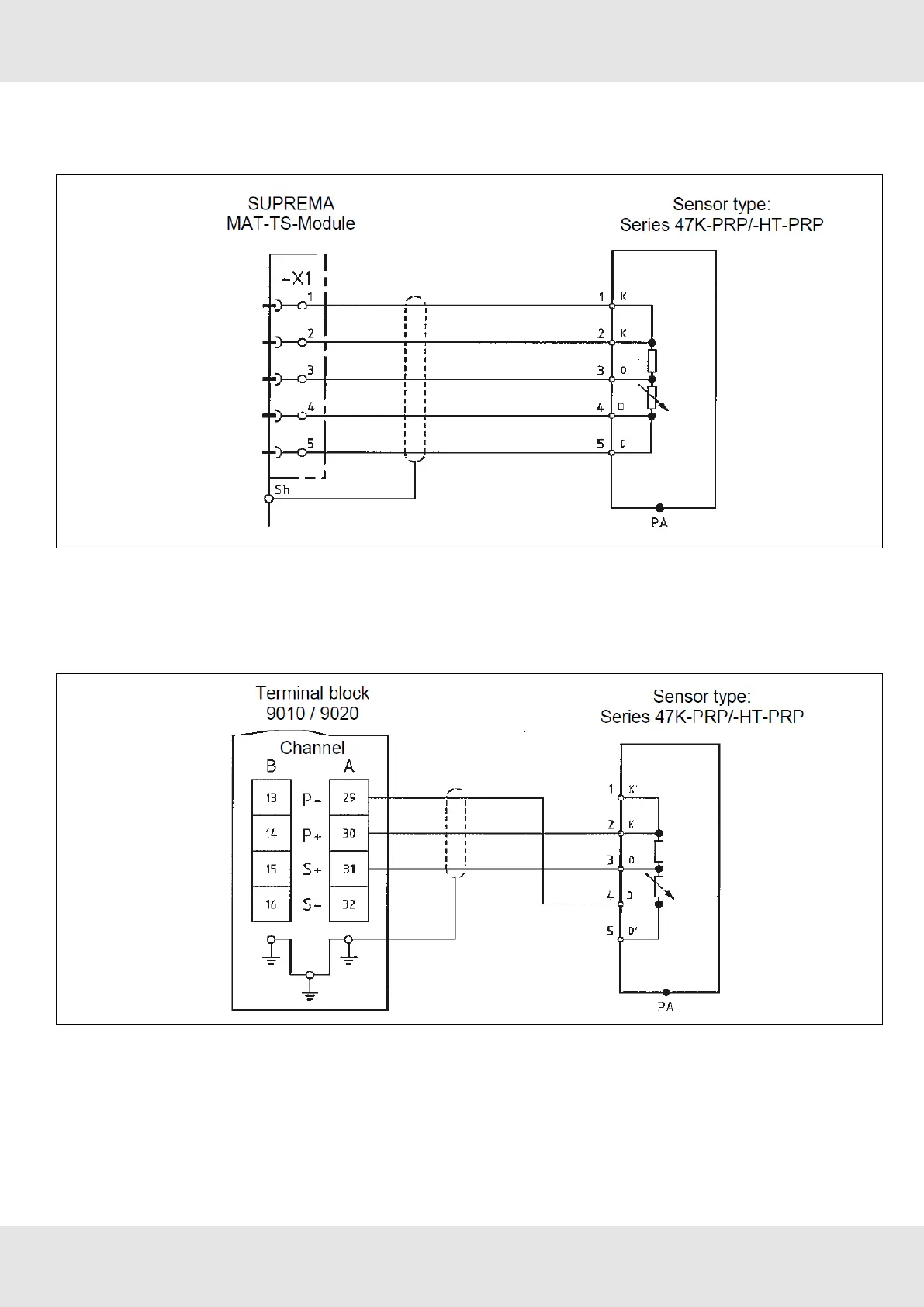

10.1.2 Series 47K-PRP/ -HT-PRP [5 wire]
Information regarding the 5-wire wiring of the -HT-PRP can be found in chapter 10.4 .
10.2 MSA Control Unit 9010/ 9020 Series
10.2.1 Series 47K-PRP/ -HT-PRP [3-wire] Channel A
[47K-HT-PRP see chapter 10.4 ]
37 Series 47K GB
10 Wiring Diagrams
